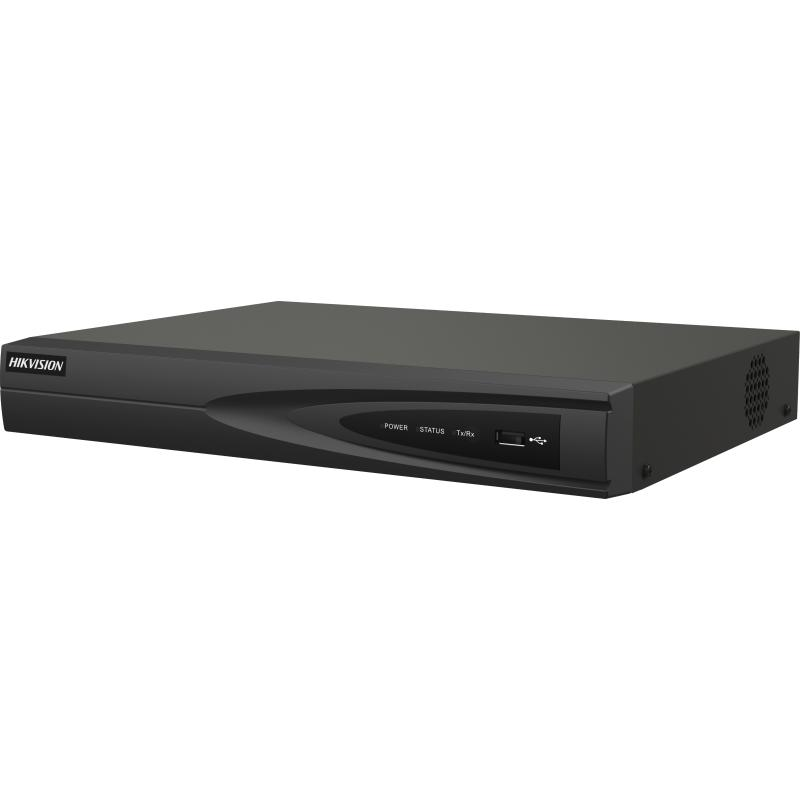

8-ch 1U 8 PoE 4K NVR

  • Up to 8-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
  • Up to 80 Mbps incoming bandwidth

Specification
  • Video and Audio
  • IP Video Input8-ch
  • HDMI Output1-ch, 4K(4096x2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz; HDMI/VGA simultaneous output,
  • VGA Output1-ch, 1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz,HDMI/VGA simultaneous output,
  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth80 Mbps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Decoding Capability5 x1080P
  • Synchronous playback8-ch
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Network
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 75W
  • RAID
  • RAID TypeNo
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 8TB capacity for each disk
  • USB Interface2 × USB 2.0
  • General
  • Power Supply48 VDC, 1.88 A
  • Consumption≤ 10 W (without enabling PoE)
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10 to 90 %
  • Chassis1U chassis
  • Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
  • ≤ 1 kg (2.2 lb)
Specification
Firmware Download
DS-7608NI-K1/8P(C)
