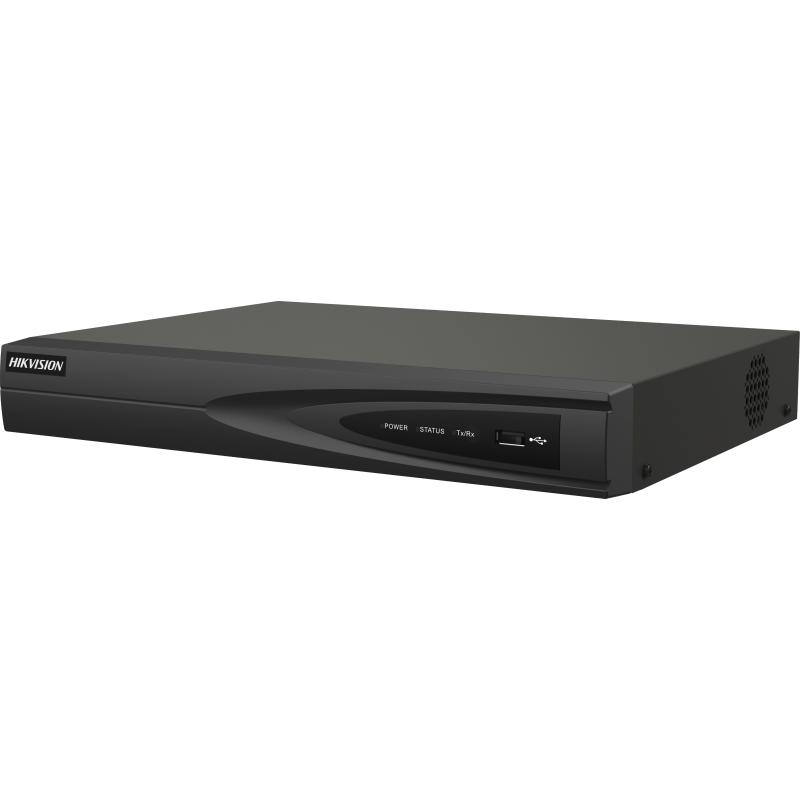

4-ch 1U 4K NVR

  • Up to 4 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 4-ch @ 1080p decoding capacity
  • Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
  • Simultaneous HDMI and VGA output of the same video stream1 HDD for continuous video recording
  • Compatible with third-party network cameras
Specification
  • Video and Audio
  • IP video input4-ch Up to 8 MP resolution
  • Two-way audio input1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding formatH.265/H.265+/H.264/H.264+/MPEG4
  • Video resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Capability1-ch @ 8 MP / 4-ch @ 1080p
  • Network
  • Incoming/outgoing bandwidth40 Mbps 80 Mbps
  • Hard disk
  • SATA1 SATA interface
  • CapacityUp to 6TB capacity for each disk
  • External interface
  • Network interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • USB interface2 × USB 2.0
  • Video/Audio output
  • VGA output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
  • HDMI output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
  • Recording resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Network management
  • Network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • General
  • Power≤ 18W
  • Power supply12 VDC
  • Consumption (without HDD)≤ 10 W
  • Working temperature-10 to +55º C (+14 to +131º F)
  • Working humidity10 to 90 %
  • Dimensions (W × D × H)315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
  • Weight (without hard disk)≤ 1 kg (2.2 lb)
  • Chassis1U chassis
