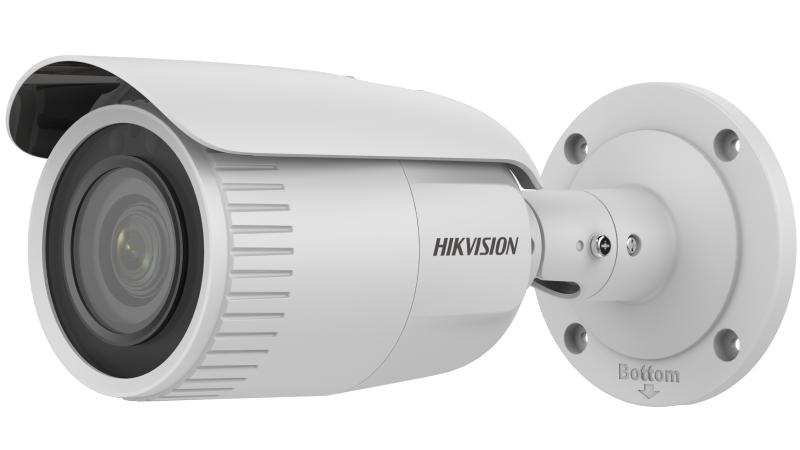

4 MP Varifocal Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Up to 256 GB SD card slot for storage
  • 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range
View Less
View more

Available models:

DS-2CD1643G0-IZ(2.8-12mm)
DS-2CD1643G0-I(2.8-12mm)
DS-2CD1643G0-IZ(2.8-12mm)(C)
DS-2CD1643G0-IZS(2.8-12mm)(C)

Specification

  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Wide Dynamic Range120 dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
  • Lens
  • Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
  • Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
  • Lens MountØ14
  • Iris TypeFixed
  • ApertureF1.6
  • Illuminator
  • IR Wavelength850 nm
  • IR RangeUp to 50 m
  • Video
  • Main Stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-S: 8 kHz/16 kHz
  • Environment Noise Filtering-S: Yes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule, Day, Night
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Audio-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm -S: 1 input,1 output, max. 12 VDC, 30 mA
  • Reset KeyYes
  • Event
  • Basic Event Motion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
  • General
  • Power12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
  • Camera MaterialMetal
  • Camera DimensionØ105 mm × 244.4 mm (Ø4.1" × 9.6")
  • Package Dimension315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
  • Camera WeightApprox. 1035 g (2.3 lb.)
  • With Package WeightApprox. 1550 g (3.4 lb.)
  • Storage Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Electrical Safety ProtectionIP67 (IEC 60529-2013)

Specification

Specification
Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Wide Dynamic Range120 dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
  • Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
  • Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
  • Lens MountØ14
  • Iris TypeFixed
  • ApertureF1.6
Illuminator
  • IR Wavelength850 nm
  • IR RangeUp to 50 m
Video
  • Main Stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)1 fixed region for main stream
Audio
  • Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-S: 8 kHz/16 kHz
  • Environment Noise Filtering-S: Yes
Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule, Day, Night
  • Image EnhancementBLC, 3D DNR
Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Audio-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm -S: 1 input,1 output, max. 12 VDC, 30 mA
  • Reset KeyYes
Event
  • Basic Event Motion detection, video tampering alarm, exception
  • LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
  • Power12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
  • Camera MaterialMetal
  • Camera DimensionØ105 mm × 244.4 mm (Ø4.1" × 9.6")
  • Package Dimension315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
  • Camera WeightApprox. 1035 g (2.3 lb.)
  • With Package WeightApprox. 1550 g (3.4 lb.)
  • Storage Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Electrical Safety ProtectionIP67 (IEC 60529-2013)

Firmware

Applied to:
DS-2CD1643G0-IZ(2.8-12mm)
DS-2CD1643G0-I(2.8-12mm)
Applied to:
DS-2CD1643G0-IZ(2.8-12mm)(C)
DS-2CD1643G0-IZS(2.8-12mm)(C)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
