DS-2XS6F85G1-I(L)C1/4G

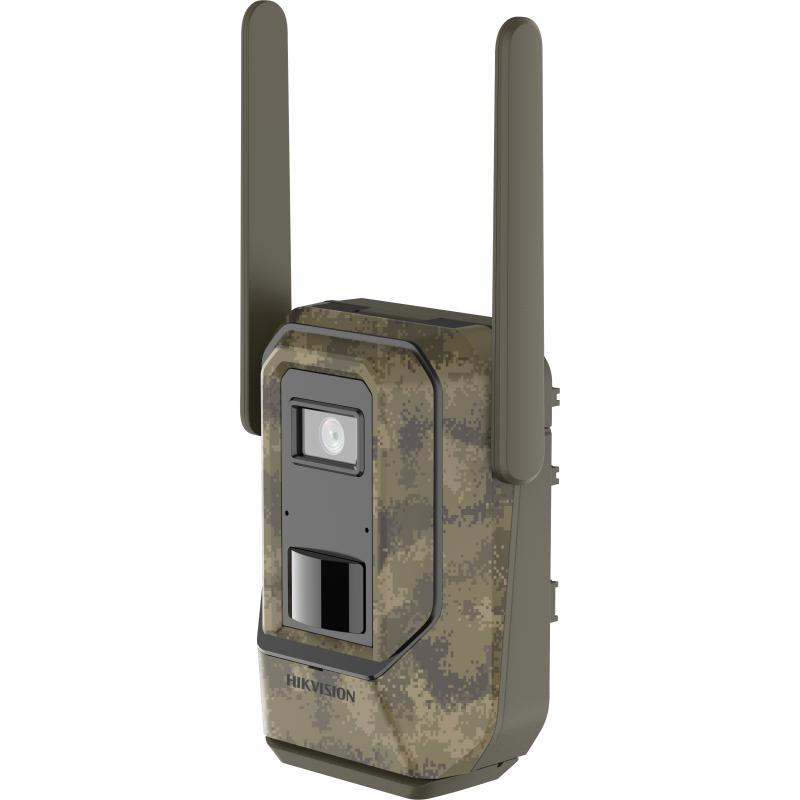

8MP Wildlife Network Camera

High-sensitivity PIR detector to realize accurate detection of wild animals and high-definition image acquisition with the detection range covering horizontal 90° ± 5°
Ultra-low power consumption: support sleep mode and performance mode. In sleep mode, the standby time can be up to 125 days
Support short-range WLAN AP function to conveniently debug, record, and preview the video
Clear imaging against strong back light due to 120 dB true WDR technology
Advanced infrared technology with IR distance up to 15 m
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Supports LTE-TDD/LTE-FDD/WCDMA/GSM to realize wireless connection
Supports GPS positioning
Built-in microphone for real-time audio security

View Less

Available models:

DS-2XS6F85G1-IC1/4G(2.8mm)

DS-2XS6F85G1-IC1/4G(6mm)

Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160 (only for captured pictures), 8 MP only for captured pictures, 4 MP maximum for video
Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night -I: IR cut filter, -L: 24/7 color imaging

Lens
Focal Length & FOV 2.8 mm, horizontal FOV 108.1°, vertical FOV 53.2°, diagonal FOV 132.7° 4 mm, horizontal FOV 87.6°°, vertical FOV 46.0°, diagonal FOV 103.5°
Aperture F1.6
Lens Mount M12

DORI
DORI 2.8 mm: D: 97.4 m, O: 38.7 m, R: 19.5 m, I: 9.7 m 4 mm: D: 111.2 m, O: 44.1 m, R: 22.2 m, I: 11.1 m

Illuminator
Supplement Light Type -I: IR, -L: White Light
IR Wavelength -I: 850 nm
Supplement Light Range Up to 15 m
Smart Supplement Light Yes

Video
Main Stream 50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression Main stream: H.265
Video Bit Rate 32 Kbps to 8 Mbps
H.265 Type Baseline Profile,Main Profile,High Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.265

Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Type Mono sound

Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
Protocols TCP/IP, IPv6, DDNS, RTSP, HTTPS, HTTP, FTP, QoS, Bonjour, SNMP, WebSocket, WebSockets
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Network Storage Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Safari 13+, Edge 89+

Mobile Communication
Frequency LTE-TDD Band 38/40/41 LTE-FDD Band 1/3/5/7/8/20/28 WCDMA Band 1/5/8 GSM 850/900/1800MHz
Standard LTE-TDD/LTE-FDD/WCDMA/GSM

Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Enhancement BLC,HLC,Defog,3D DNR
Image Parameters Switch Yes
Image Settings Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
SNR ≥ 52 dB

Transducer
Transducer Type PIR
Detection Range Up to 15 m
Detection Angle 2.8 mm: Horizontal: 90° ± 5°, vertical: 25° ± 5°; 4 mm: Horizontal: 50° ± 5°, vertical: 20° ± 5°

Satellite Positioning
Satellite Positioning Detection Support GPS and searching longitude and latitude of the device

Interface
Built-in Microphone 1 built-in microphone
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface 1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)
Reset Key Yes, Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.

Event
Basic Event Exception,PIR Alarm
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording

General
Power 6 to 15 VDC, 1.03 to 0.73 A, max. 6.2 W
General Function Heartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter
Material Plastic
Dimension With antennas folded: 172.8 mm × 139.7 mm × 86.7 mm (6.8" × 5.5" × 3.4"), with antennas extending: 283.3 mm × 139.7 mm × 86.7 mm (11.2" × 5.5" × 3.4")
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Package Dimension 260 mm × 217 mm × 241 mm (10.2" × 8.5" × 9.5")
Weight Approx. 0.63 kg (1.39 lb.)
With Package Weight Approx. 1.588 kg (3.5 lb.)
Storage Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Battery
Battery Type Chargeable lithium battery or 5AA dry cell
Battery Voltage Rated voltage: 7.2 VDC Charging voltage: 8.4 VDC Discharging cut-off voltage: 5.6 VDC
Capacity 9.4 Ah
Operating Temperature -20 °C to 60°C (-4 °F to 140 °F)
Cycle Lifetime Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night), uploads once per day, and keeps alive for 3 hours per day with the ambient temperature at 25 °C (77 °F). Cycle lifetime: 125 days Make sure the battery is fully charged before using the device.

Approval
RF CE-RED: EN 301489-1 V2.2.3, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300 328 V2.2.2, EN IEC 62311:2020
EMC CE-EMC: EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014, RCM: AS/NZS CISPR 32: 2015
Safety CB: IEC 62368-1: 2014+A11
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Specification

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

3840 × 2160 (only for captured pictures), 8 MP only for captured pictures, 4 MP maximum for video

Min. Illumination

Color: 0.003 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

-I: IR cut filter, -L: 24/7 color imaging

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 108.1°, vertical FOV 53.2°, diagonal FOV 132.7° 4 mm, horizontal FOV 87.6°°, vertical FOV 46.0°, diagonal FOV 103.5°

Aperture

F1.6

Lens Mount

M12

DORI

2.8 mm: D: 97.4 m, O: 38.7 m, R: 19.5 m, I: 9.7 m 4 mm: D: 111.2 m, O: 44.1 m, R: 22.2 m, I: 11.1 m

Illuminator

Supplement Light Type

-I: IR, -L: White Light

IR Wavelength

-I: 850 nm

Supplement Light Range

Up to 15 m

Smart Supplement Light

Yes

Video

Main Stream

50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Video Compression

Main stream: H.265

Video Bit Rate

32 Kbps to 8 Mbps

H.265 Type

Baseline Profile,Main Profile,High Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.265

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Type

Mono sound

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP

Protocols

TCP/IP, IPv6, DDNS, RTSP, HTTPS, HTTP, FTP, QoS, Bonjour, SNMP, WebSocket, WebSockets

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Network Storage

Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Safari 13+, Edge 89+

Mobile Communication

Frequency

LTE-TDD Band 38/40/41 LTE-FDD Band 1/3/5/7/8/20/28 WCDMA Band 1/5/8 GSM 850/900/1800MHz

Standard

LTE-TDD/LTE-FDD/WCDMA/GSM


Day/Night Switch

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Image Enhancement

BLC,HLC,Defog,3D DNR

Image Parameters Switch

Yes

Image Settings

Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser

SNR

≥ 52 dB

Transducer

Transducer Type

PIR

Detection Range

Up to 15 m

Detection Angle

2.8 mm: Horizontal: 90° ± 5°, vertical: 25° ± 5°; 4 mm: Horizontal: 50° ± 5°, vertical: 20° ± 5°

Satellite Positioning

Satellite Positioning Detection

Support GPS and searching longitude and latitude of the device

Interface

Built-in Microphone

1 built-in microphone

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Ethernet Interface

1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)

Reset Key

Yes, Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.

Event

Basic Event

Exception,PIR Alarm

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording

General

Power

6 to 15 VDC, 1.03 to 0.73 A, max. 6.2 W

General Function

Heartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter

Material

Plastic

Dimension

With antennas folded: 172.8 mm × 139.7 mm × 86.7 mm (6.8" × 5.5" × 3.4"), with antennas extending: 283.3 mm × 139.7 mm × 86.7 mm (11.2" × 5.5" × 3.4")

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Package Dimension

260 mm × 217 mm × 241 mm (10.2" × 8.5" × 9.5")

Weight

Approx. 0.63 kg (1.39 lb.)

With Package Weight

Approx. 1.588 kg (3.5 lb.)

Storage Conditions

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Battery

Battery Type

Chargeable lithium battery or 5AA dry cell

Battery Voltage

Rated voltage: 7.2 VDC Charging voltage: 8.4 VDC Discharging cut-off voltage: 5.6 VDC

Capacity

9.4 Ah

Operating Temperature

-20 °C to 60°C (-4 °F to 140 °F)

Cycle Lifetime

Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night), uploads once per day, and keeps alive for 3 hours per day with the ambient temperature at 25 °C (77 °F). Cycle lifetime: 125 days Make sure the battery is fully charged before using the device.

Approval

CE-RED: EN 301489-1 V2.2.3, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300 328 V2.2.2, EN IEC 62311:2020

EMC

CE-EMC: EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014, RCM: AS/NZS CISPR 32: 2015

Safety

CB: IEC 62368-1: 2014+A11

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
