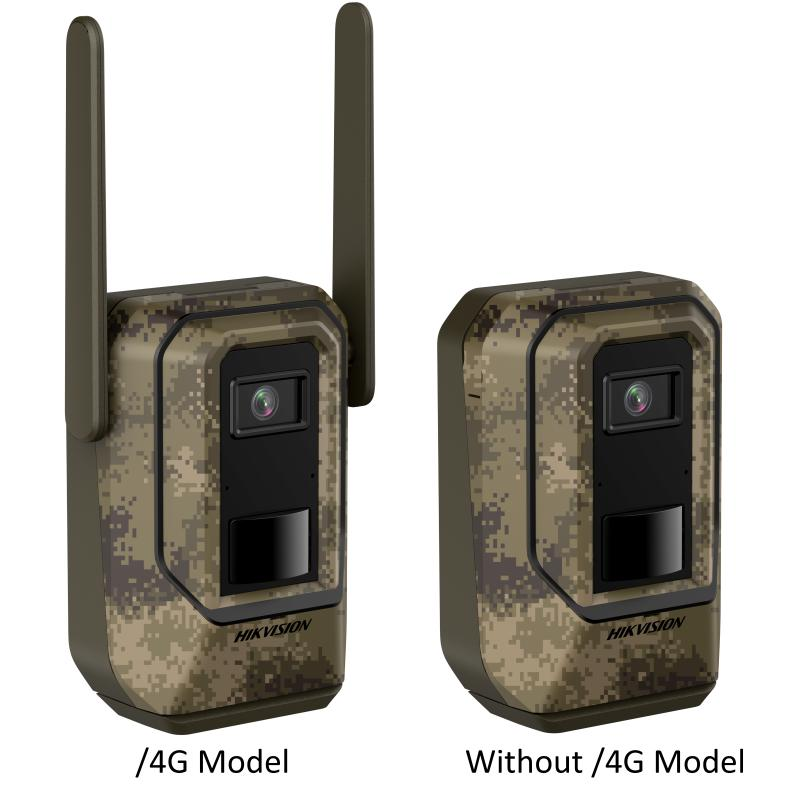

4MP Wildlife Network Camera

  • High-sensitivity PIR detector to realize accurate detection of wild animals and high-definition image acquisition with the detection range covering horizontal 90° ± 5°
  • Ultra-low power consumption: support sleep mode and performance mode. In sleep mode, the standby time can be up to 125 days for /4G model and 210 days for without /4G model (10 snapshots a day for /4G model)
  • High quality imaging with 4 MP resolution
  • Hik-Connect cloud service and APP for remote management and views of devices
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Advanced infrared technology with IR distance up to 15 m
  • Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • /4G model: supports LTE-TDD/LTE-FDD/WCDMA/GSM to realize wireless connection
  • /4G model: supports GPS positioning
  • Built-in microphone for real-time audio security
View Less
View more

Available models:

DS-2XS6F45G0-IC0/4G(2.8mm)
DS-2XS6F45G0-IC1/4G(2.8mm)
DS-2XS6F45G0-IC2/4G(2.8mm)
DS-2XS6F45G0-I9C1/4G(2.8mm)
Specification
  • Camera
  • Image Sensor 1/3" Progressive Scan CMOS
  • Max. Resolution 2688 × 1520
  • Min. Illumination Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time 1 s to 1/100,000 s
  • Day & Night IR cut filter
  • Lens
  • Focal Length & FOV 2.8 mm, horizontal FOV 102°, vertical FOV 55°, diagonal FOV 122°
  • Aperture F1.4
  • Lens Mount M12
  • DORI
  • DORI 2.8 mm: D: 64.2 m, O: 25.5 m, R: 12.8 m, I: 6.4 m
  • Illuminator
  • Supplement Light Type IR
  • IR Wavelength -I: 850 nm, -I9: 940 nm
  • Supplement Light Range Up to 15 m
  • Smart Supplement Light Yes
  • Video
  • Main Stream 50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360)
  • Third Stream 50 Hz: 1 fps (1280 × 720, 640 × 480) 60 Hz: 1 fps (1280 × 720, 640 × 480)
  • Video Compression Main stream: H.265, Sub-stream: H.265, H.264, MJPEG, Third stream: H.265, H.264
  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile,Main Profile,High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR,VBR
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 4 fixed region(s) for main stream
  • Audio
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Type Mono sound
  • Network
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, UDP
  • User/Host Up to 32 users 3 user levels: administrator, operator, and user
  • Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client iVMS-4200,Hik-Connect
  • Web Browser Plug-in required live view: IE10, IE11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+, Safari12+
  • Mobile Communication
  • Frequency /4G model: LTE-TDD Band 38/40/41 LTE-FDD Band 1/3/5/7/8/20/28 WCDMA Band 1/5/8 GSM 850/900/1800MHz
  • Standard /4G model: LTE-TDD/LTE-FDD/WCDMA/GSM
  • Image
  • Day/Night Switch Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Image Enhancement BLC,HLC,defog,3D DNR
  • Image Parameters Switch Yes
  • Image Settings Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
  • SNR ≥ 52 dB
  • Privacy Mask Yes
  • Transducer
  • PIR Range Up to 15 m
  • PIR Angle Horizontal: 90° ± 5°, vertical: 40° ± 5°
  • Satellite Positioning
  • Satellite Positioning Detection Support GPS and searching longitude and latitude of the device
  • Interface
  • Built-in Microphone 1 built-in microphone(s)
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Ethernet Interface 1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)
  • Reset Key Yes, Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.
  • Event
  • Basic Event Motion detection,video tampering alarm,exception
  • Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, Face detection
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture, send message
  • General
  • Power 6 to 15 VDC, 0.82 to 0.33 A, max. 4.9 W, C0: shrapnel, dry cell (10, 5AA dry cell, 1.5 V)
  • General Function Heartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter
  • Material Plastic
  • Dimension With /4G model: with antennas folded: 171.5 mm × 139.7 mm × 86.9 mm (6.8" × 5.5" × 3.4"), with antennas extending: 283.4 mm × 139.7 mm × 86.9 mm (11.2" × 5.5" × 3.4"); Without /4G model: 171.5 mm × 117.3 mm × 86.9 mm (6.8" × 4.6" × 3.4")
  • Package Dimension 260 mm × 217 mm × 241 mm (10.2" × 8.5" × 9.5")
  • Weight Approx. 0.61 kg (1.2 lb.)
  • With Package Weight C0: approx. 1.34 kg (3.0 lb.), C1: approx. 2.47 kg (5.4 lb.), C2: approx. 2.82 kg (6.2 lb.)
  • Storage Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions C1/C2: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing), C0: -10 °C to 60 °C (-14 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Battery
  • Battery Type C1/C2: chargeable lithium battery, C0: 5AA dry cell
  • Battery Voltage C1/C2: Rated voltage: 7.2 VDC Charging voltage: 8.4 VDC Discharging cut-off voltage: 5.6 VDC C0: Rated voltage: 15 VDC Discharging cut-off voltage: 8 VDC
  • Capacity C1/C2: 9.4 Ah
  • Operating Temperature C1/C2: -20 °C to 60°C (-4 °F to 140 °F) C0: -10 °C to 60 °C (-14 °F to 140 °F)
  • Cycle Lifetime Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night) with the ambient temperature at 25 °C. With /4G model: C1/C: 125 days C0: 30 days Without /4G model: C1/C2: 210 days C0: 51 days For C1 and C2 models, make sure the battery is fully charged before using the device.
  • Approval
  • Protection IP66: IEC 60529-2013, For the lens: IP 67: IEC 60529-2013

Specification

Firmware

Applied to:
DS-2XS6F45G0-IC0/4G(2.8mm)
DS-2XS6F45G0-IC1/4G(2.8mm)
DS-2XS6F45G0-IC2/4G(2.8mm)
DS-2XS6F45G0-I9C1/4G(2.8mm)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
