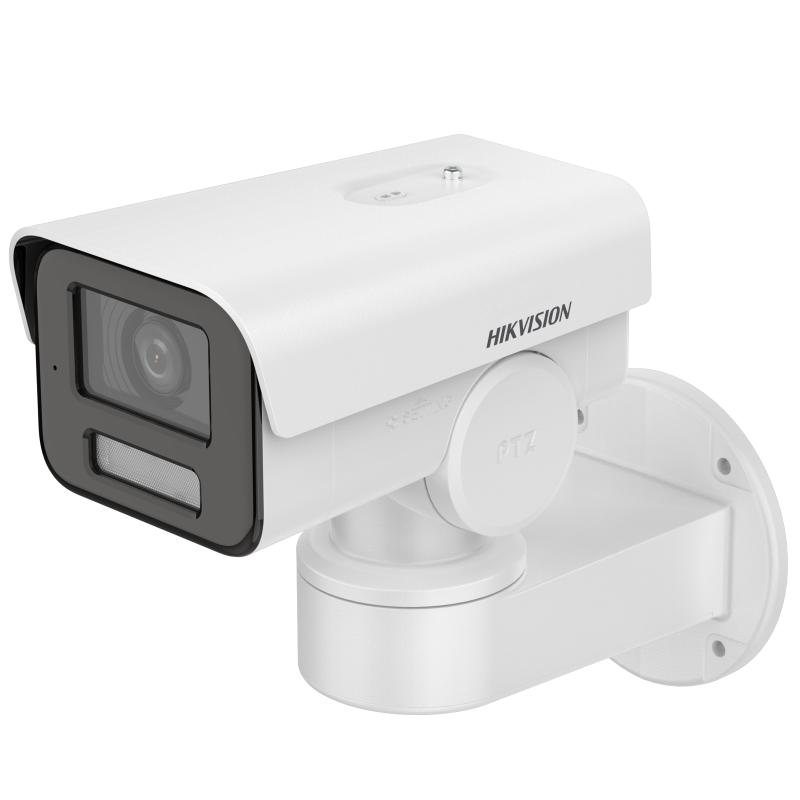

4 MP Varifocal PT Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Pan, tilt and zoom ability that enables the camera to capture larger and interested areas
  • Water and dust resistant (IP66)
  • EXIR 2.0, advanced infrared technology with long IR distance
  • Efficient H.265+ compression technology

View Less
View more

Available models:

DS-2CD1A43G0-IZU(2.8-12mm)
Specification
  • Camera
  • Image Sensor 1/3" Progressive Scan CMOS
  • Max. Resolution 2560 × 1440
  • Min. Illumination Color: 0.007 Lux @ (F1.6, AGC ON),0 Lux with light
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: -100° to 100°,tilt: -20° to 45°
  • Lens
  • Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 96.7° to 29.7°, vertical FOV 51.7° to 16.7°, diagonal FOV 114.3° to 34°
  • Lens Mount Ø14
  • Iris Type Fixed
  • Aperture Max. F1.6
  • DORI
  • DORI Varifocal lens: Wide: D: 64 m, O: 25 m, R: 12 m, I: 6 m Tele: D: 200 m, O: 75 m, R: 40 m, I: 20 m
  • Illuminator
  • Supplement Light Type IR
  • Supplement Light Range Up to 50 m
  • Smart Supplement Light Yes
  • IR Wavelength 850 nm
  • Video
  • Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR/VBR
  • Region of Interest (ROI) 1 fixed region for main stream
  • Audio
  • Audio Type Mono sound
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8 kHz/16 kHz
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Network
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
  • User/Host Up to 32 users 3 levels: Administrator, Operator and User
  • Client iVMS-4200, Hik-Connect
  • Web Browser Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Wide Dynamic Range (WDR) 120 dB WDR
  • SNR ≥ 52 dB
  • Day/Night Switch Day, Night, Auto, Schedule
  • Image Enhancement BLC, HLC, 3D DNR
  • Image Settings Mirror, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Privacy Mask 4 regions of privacy mask
  • Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Built-in Microphone Yes
  • Reset Key Yes
  • Event
  • Basic Event Motion detection, video tampering alarm, exception
  • Linkage Upload to FTP/memory card, notify surveillance center,send email, trigger recording, trigger capture
  • General
  • Power 12 VDC ± 25%, 0.91 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W
  • Material Front cover: metal, body: plastic, bracket: plastic
  • Dimension 197.1 mm × 105 mm × 225.4 mm (7.8" × 4.1" × 8.9")
  • Package Dimension 300 mm × 266 mm × 172 mm (11.8" × 10.4" × 6.8")
  • Weight Approx. 900 g (2 lb.)
  • With Package Weight Approx. 1520 g (3.3 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language English, Ukrainian
  • General Function Anti-flicker, heartbeat, password protection, password reset via e-mail
  • Approval
  • EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015,FCC: 47 CFR Part 15, Subpart B
  • Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP66: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
