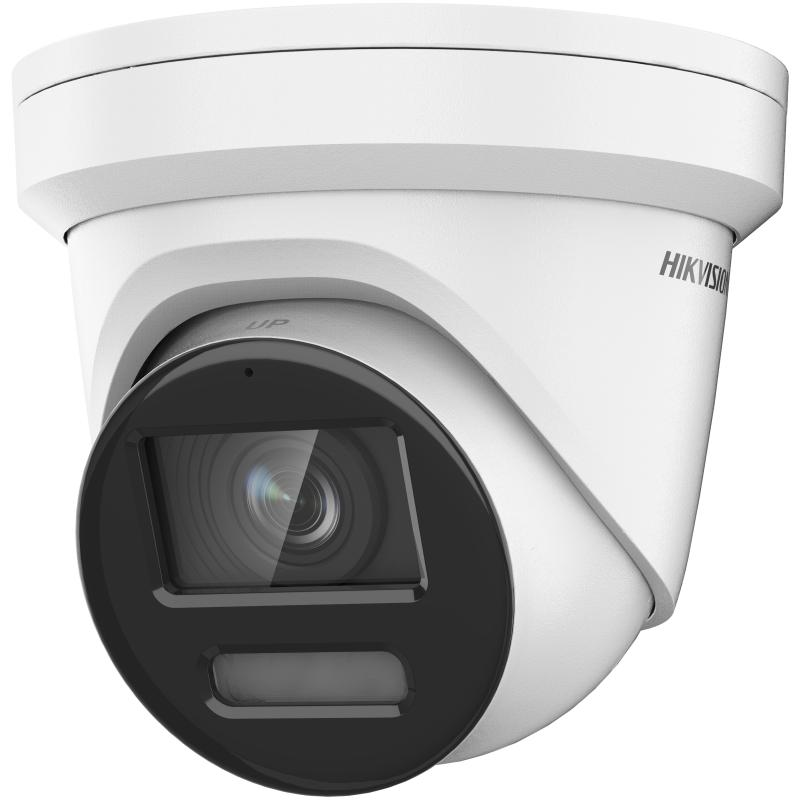

DS-2CD3387G2-LSU

8 MP ColorVu Fixed Turret Network Camera

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Built-in microphone for real-time audio security
Focus on human and vehicle targets classification based on deep learning
24/7 colorful imaging
Water and dust resistant (IP67)

Available models:

DS-2CD3387G2-LSU(2.8mm)(C)

DS-2CD3387G2-LSU(4mm)(C)

Camera
Image Sensor1/1.2″ Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor：0.0005 Lux @ (F1.0, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Day & Night24/7 Color imaging
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
Lens MountM16
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 3.1 m to ∞ 4 mm: 3.6 m to ∞

DORI
DORI2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 40 m
Smart Supplement LightYes

Video
Main Stream50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for main stream and sub-stream

Audio
Audio TypeMono sound
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
User/HostUp to 32 users. 3 user levels: administrator, operator and user
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
Day/Night SwitchDay, Night, Auto, Schedule
Target CroppingYes
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 512 GB
Built-in MicrophoneYes
Audio1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Power Output12 VDC, max. 100 mA

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
LinkageUpload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Deep Learning Function
Face CaptureYes

General
Power12 VDC, 0.47 A, max. 5.6 W PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.12 A, max. 6.6 W
MaterialCover: metal, main body: metal
DimensionØ138.3 mm × 120.1 mm (Ø5.4" × 4.7")
Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
WeightApprox. 910 g (2 lb.)
With Package WeightApprox. 1190 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, flash log, password reset via email, pixel counter
Software ResetYes

Approval
EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
SafetyUL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017)
EnvironmentCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
ProtectionIP67: IEC 60529-2013
