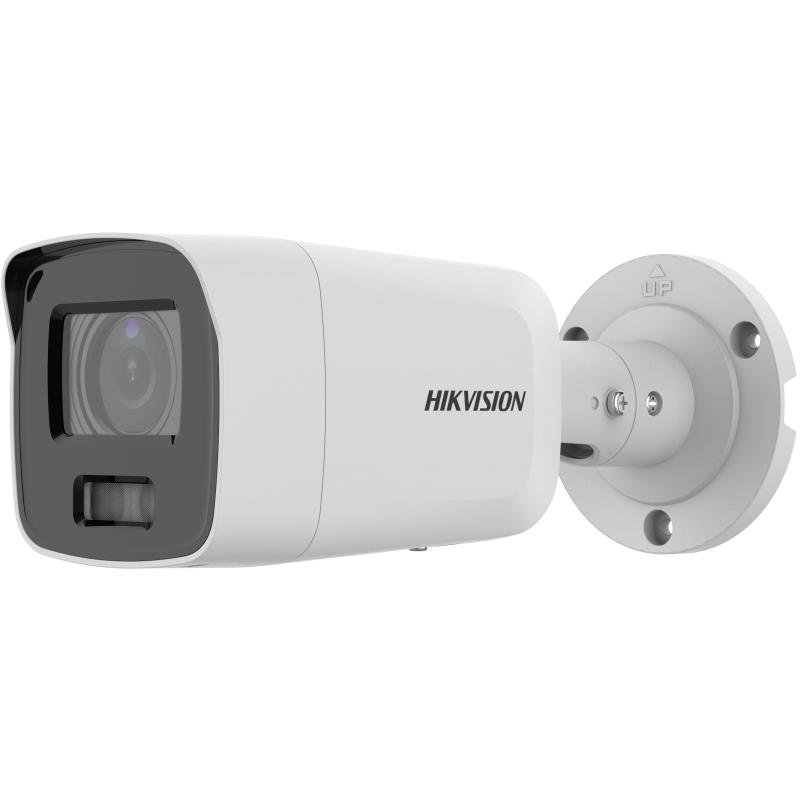

DS-2CD3087G2-LSU

4K ColorVu Fixed Bullet Network Camera

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 130 dB WDR technology
Built-in microphone for real-time audio security
Focus on human and vehicle targets classification based on deep learning
24/7 colorful imaging
Water and dust resistant (IP67)

View Less

Available models:

DS-2CD3087G2-LSU(2.8mm)(C)

DS-2CD3087G2-LSU(4mm)(C)

DS-2CD3087G2-LSU(6mm)(C)

Camera
Image Sensor1/1.2" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Day & Night24/7 color imaging
Shutter Time1/3 s to 1/100,000 s
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Focal Length & FOV2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124° 4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104° 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
ApertureF1.0
Lens MountM16
Depth of Field2.8 mm: 4 m to ∞ 4 mm: 7 m to ∞ 6 mm: 13 m to ∞
Iris TypeFixed

DORI
DORI2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m 4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

Illuminator
Supplement Light RangeUp to 40 m
Smart Supplement LightYes
Supplement Light TypeWhite Light

Video
Main Stream50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360), *Fourth stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed region(s) for main stream and sub-stream
Target CroppingYes

Audio
Audio TypeMono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/HostUp to 32 users 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)130 dB
SNR≥ 52 dB
Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in MicrophoneYes
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 512 GB
Reset KeyYes
Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Power Output12 VDC, max. 100 mA
Alarm 1 input(s), 1 output(s) (max. 12 VDC, 30 A)

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function
Face CaptureYes

General
Power12 VDC ± 25%, 0.6 A, max. 7 W,Ø5.5 mm coaxial power plug, two-core terminal block,reverse polarity protection, PoE: 802.3, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W
MaterialMetal
Dimension78.8 mm × 78.6 mm × 215.2 mm (3.1" × 3.1" × 8.5")
Package Dimension315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
WeightApprox. 850 g (1.9 lb.)
With Package WeightApprox. 1270 g (2.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Web Client Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter

Approval
EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
