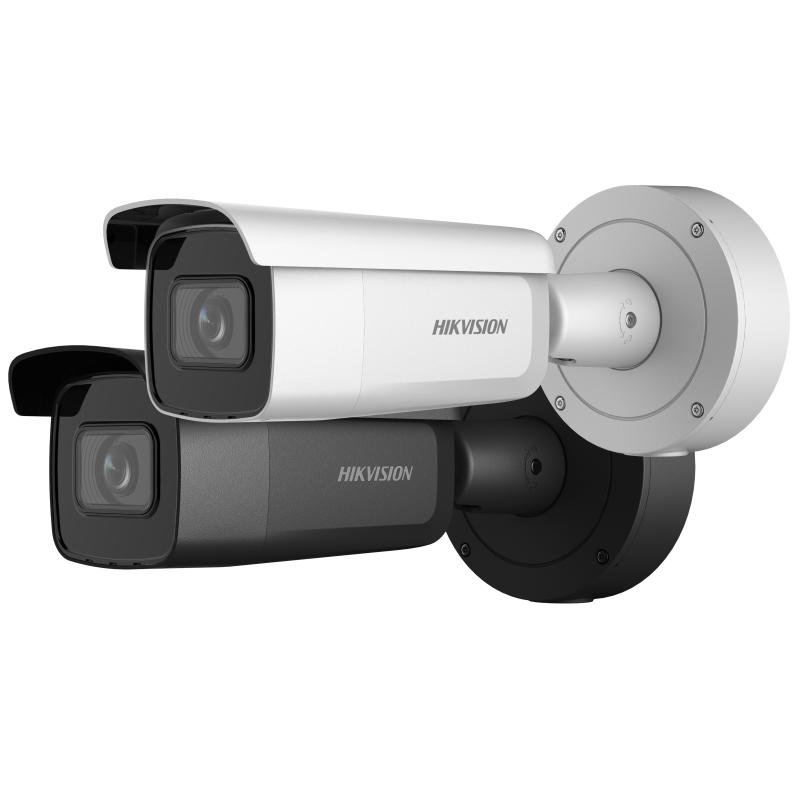

6 MP AcuSense Motorized Varifocal Bullet Network Camera

  • High quality imaging with 6 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP66) and vandal proof (IK10)

Specification
  • Camera
  • Image Sensor1/2.4" Progressive Scan CMOS
  • Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120 dB
  • P/NP/N
  • Day & NightIR cut filter
  • Power-off MemoryYes
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV2.8 to 12 mm, horizontal FOV 99° to 35°, vertical FOV 53° to 20°, diagonal FOV 117° to 41°
  • ApertureF1.4
  • Iris TypeFixed
  • Lens MountØ14
  • DORI
  • DORI2.8 to 12 mm: Wide: D: 80 m, O: 31 m, R: 16 m, I: 8 m Tele: D: 210 m, O: 83 m, R: 42 m, I: 21 m
  • Illuminator
  • Supplement Light TypeIR
  • Smart Supplement LightYes
  • IR RangeUp to 60 m
  • Wavelength850 nm
  • Video
  • Max. Resolution3200 × 1800
  • Main Stream50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Audio
  • Audio TypeMono sound
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters SwitchYes
  • SNR≥ 52 dB
  • Target CroppingYes
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interface
  • Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • On-board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart EventScene change detection
  • Deep Learning Function
  • Face CaptureYes
  • Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification
  • General
  • Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
  • Firmware VersionV5.5.113
  • Software ResetYes
  • Power InterfaceTwo-core terminal block
  • Web Client Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, reverse polarity protection PoE: 802.3at, Class 4
  • Power Consumption and Current12 VDC, 1.08 A, max. 13 W PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, max. 15 W
  • Camera MaterialMetal
  • Camera DimensionØ144.1 mm × 345.7 mm (Ø5.7" × 13.6")
  • Package Dimension385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
  • Camera WeightApprox. 1450 g (3.2 lb.)
  • With Package WeightApprox. 2531 g (5.6 lb.)
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
Specification
Firmware Download
DS-2CD2666G2-IZS(2.8-12mm)(C)
DS-2CD2666G2-IZS(2.8-12mm)/C/O-STD/BLACK
