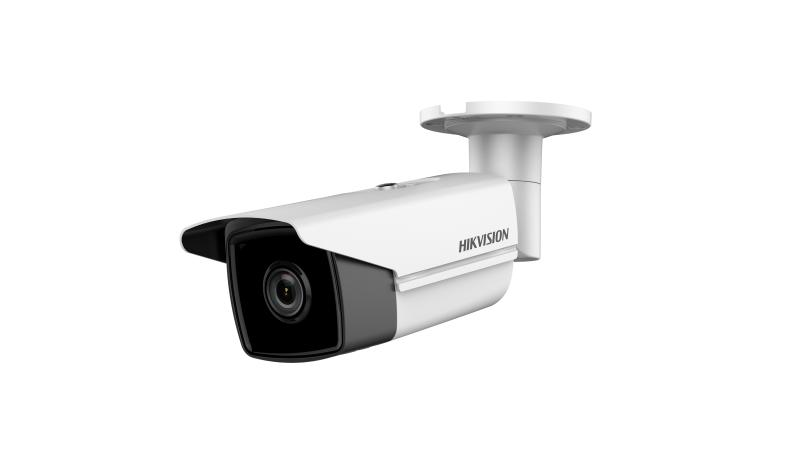

4K Outdoor WDR Fixed Bullet Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67)
  • Robust structure design with full metal materials.

View Less
View more

Available models:

DS-2CD2T83G0-I8(4mm)
DS-2CD2T83G0-I8(2.8mm)
DS-2CD2T83G0-I8(6mm)
DS-2CD2T83G0-I8(8mm)
Specification
  • Camera
  • Image Sensor 1/2.5" Progressive Scan CMOS
  • Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
  • Lens
  • Focus Fixed
  • Lens Type 2.8/4/6/8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°;4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°;6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59°;8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53°
  • Aperture F2.0
  • Lens Mount M12
  • Illuminator
  • IR Range -I5: Up to 50 m,-I8: Up to 80 m
  • Wavelength 850 nm
  • Video
  • Max. Resolution 3840 × 2160
  • Main Stream 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288);60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event Line crossing detection, intrusion detection, face detection
  • Face Detection Yes
  • General
  • Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
  • Firmware Version 5.6.3
  • Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Power Consumption and Current I5:12 VDC, 0.7 A, max. 7.5 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 9 W;I8:12 VDC, 0.9 A, max. 11 W, PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W
  • Camera Dimension Camera: Φ 104.8 × 299.7 mm (Φ 4.1" × 11.8");Package: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
  • Camera Weight Camera: 1200 g (2.7 lb.)
  • Approval
  • Protection IP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.5" Progressive Scan CMOS
Min. Illumination
Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120dB
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Lens
Focus
Fixed
Lens Type
2.8/4/6/8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°;4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°;6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59°;8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53°
Aperture
F2.0
Lens Mount
M12
Illuminator
IR Range
-I5: Up to 50 m,-I8: Up to 80 m
Wavelength
850 nm
Video
Max. Resolution
3840 × 2160
Main Stream
50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288);60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
V
