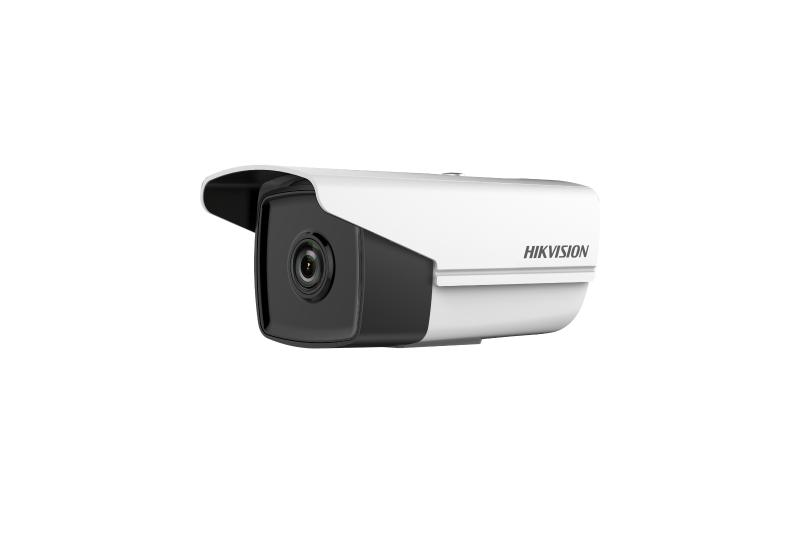

2 MP WDR Fixed Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67)
  • -S: audio and alarm interface available
Specification
  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON); B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120dB
  • Day & NightIR Cut Filter
  • Lens
  • FocusFixed
  • Lens Type4/6 mm
  • FOV4 mm: horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 103°;6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62°
  • ApertureF2.0
  • Lens MountM12
  • Aperture TypeFixed
  • Illuminator
  • IR Range30 m
  • Wavelength850nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240);60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
  • Video Compression Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Region of Interest (ROI)1 fixed region for main stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm in
  • Target CroppingNo
  • DNR3D DNR
  • Image EnhancementBLC/3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Interface
  • Audio1 input (line in), 1 output (line out), mono sound
  • Alarm 1 input, 1 output
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Smart EventLine crossing detection, intrusion detection
  • General
  • Firmware VersionV5.5.3
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25% , PoE (802.3af, class 3)
  • Power Consumption and CurrentPoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 6.5 W, 12 VDC, 0.4 A, max. 5.0 W
  • Camera DimensionCamera: 93.9 × 93.5 × 194.1 mm (3.7" × 3.7" × 7.6");With package: 300 × 205 × 135 mm (11.8" × 8.1" × 5.3")
  • Camera WeightCamera: approx. 680 g (1.5 lb.)With package: approx. 1000 g (2.2 lb.)
  • Approval
  • ProtectionIP67
