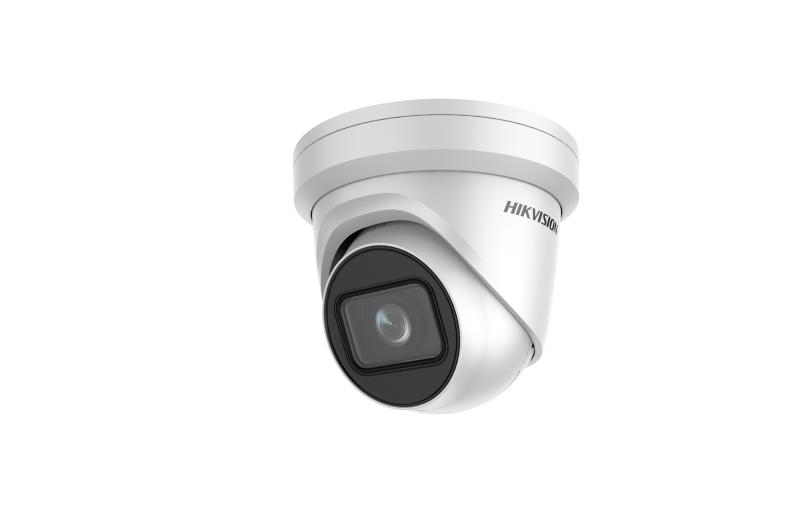

4 MP Outdoor WDR Motorized Varifocal Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Motorized varifocal lens for easy installation and monitoring
  • Robust structure design with full metal materials

View Less
View more

Available models:

DS-2CD2H43G1-IZ(2.8-12mm)
Specification
  • Camera
  • Image Sensor 1/3" Progressive Scan CMOS
  • Min. Illumination Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Lens Type 2.8 to 12 mm，Motorized
  • FOV Horizontal FOV: 104° to 29°, vertical FOV: 55° to 17°, diagonal FOV: 125° to 34°
  • Aperture F1.6
  • Lens Mount Φ14
  • Aperture Type Fixed
  • Illuminator
  • IR Range Up to 30 m
  • Wavelength 850nm
  • Video
  • Max. Resolution 2688 × 1520
  • Main Stream 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
  • Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Audio
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User,
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage microSD/SDHC/SDXC card (128 G), local storage and NAS (NFS, SMB/CIFS), ANR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • Audio 1 input (line in), 1 output (line out), four-core terminal block, mono sound
  • Alarm 1 input, 1 output
  • Video Output No
  • On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event Line crossing detection, intrusion detection, face detection
  • General
  • Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, terminal block ,PoE (802.3af, class 3),
  • Power Consumption and Current 12 VDC, 0.92 A, max. 11 W; PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12. 5W
  • Camera Dimension Camera: Φ 138.3 × 126 mm (Φ 5.4" × 5.0"); With Package: 170 × 170 × 150 mm (6.7" × 6.7" × 5.9")
  • Camera Weight Camera: Approx. 1.20 kg (2.65 lb.); With Package: Approx. 1.42
