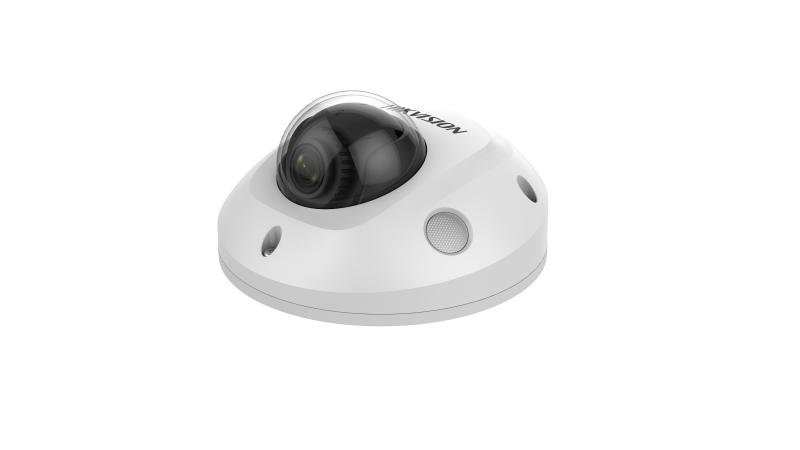

2 MP Outdoor WDR Fixed Mini Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP66) and vandal proof (IK08)
  • -W: Wi-Fi connection
  • -S: audio and alarm interface available
  • Built-in microphone for real-time audio security
  • Mini size suitable for limited space

View Less
View more

Available models:

DS-2CD2523G0-IWS(2.8mm)
DS-2CD2523G0-IWS(4mm)
Specification
  • Camera
  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Min. Illumination Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120 dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Lens Type 2.8, 4, 6 mm
  • FOV 2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
  • Aperture F2.0
  • Lens Mount M12
  • Illuminator
  • IR Range Up to 10 m
  • Wavelength 850 nm
  • Video
