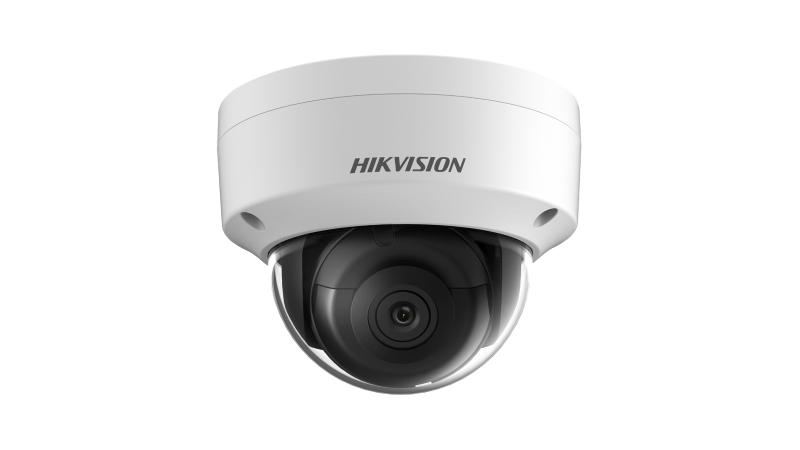

4K Fixed Dome Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Robust structure design with full metal materials.
View Less
View more

Available models:

DS-2CD2185FWD-I(4mm)
DS-2CD2185FWD-I(2.8mm)
DS-2CD2185FWD-I(6mm)
Specification
  • Camera
  • Image Sensor 1/2.5" Progressive Scan CMOS
  • Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON), 0 lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Focus Fixed
  • Lens Type 2.8/4/6/8/12 mm
  • FOV 2.8 mm, horizontal field of view: 102°;4 mm, horizontal field of view: 79°;6 mm, horizontal field of view: 50°;8 mm, horizontal field of view: 40°;12 mm, horizontal field of view: 23°
  • Aperture F2.0
  • Lens Mount M12
  • Illuminator
  • IR Range 30 m
  • Video
  • Max. Resolution 3840 × 2160
  • Main Stream 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720);60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288);60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Region of Interest (ROI) Support 1 fixed region for main stream and sub-stream separately
  • Audio
  • Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Face Detection Yes
  • Exception Detection Scene change detection
  • General
  • Firmware Version V5.5.80
  • General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, 6.2 W, PoE(802.3af, 36 V to 57 V,class 3), 9 W
  • Camera Dimension Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
  • Camera Weight Camera: 500 g (1.1 lb.)

Specification

Firmware
Applied to:
DS-2CD2185FWD-I(4mm)
DS-2CD2185FWD-I(2.8mm)
DS-2CD2185FWD-I(6mm)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
