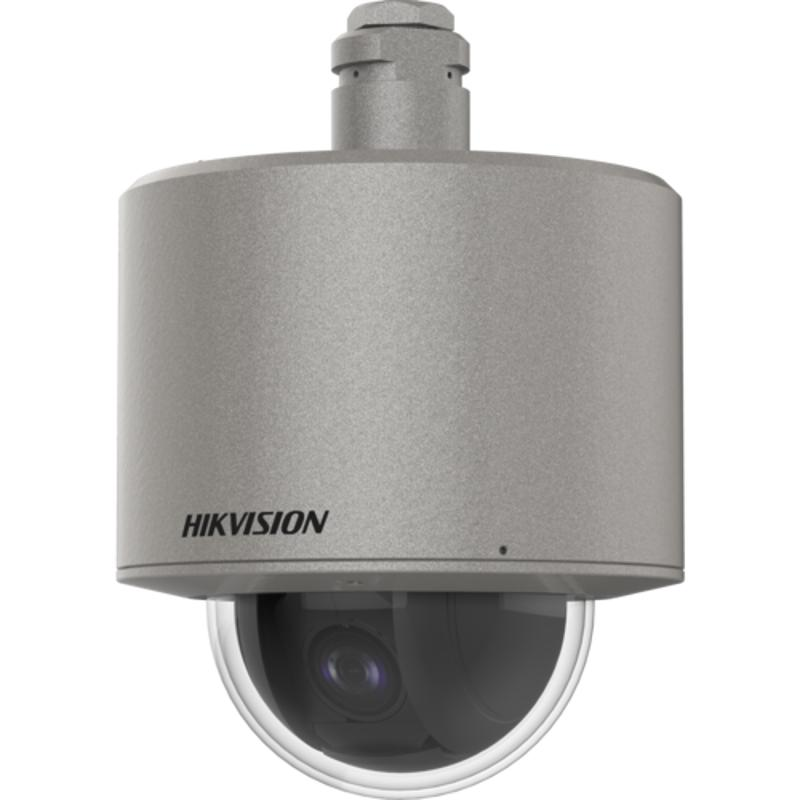

DS-2DF4220-DX(S6/316L)(C)

4-inch 20x Explosion-proof Network Speed Dome

Ex-mark: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db
316L stainless steel
Supports H.265 video compression
Certificate No.: ATEX: SEV 20 ATEX 0415 X; IECEx: IECEx NEP 20.0018X
20 × optical zoom, focal length 4.8 mm to 96 mm
2 MP 1/2.8" progressive scan CMOS
120dB WDR, 3D DNR
High quality imaging with high-perfomance sensor

View Less

Available models:

DS-2DF4220-DX(S6/316L)(C)

Camera
Image Sensor1/2.8" progressive scan CMOS
Max. Resolution1920 × 1080
Min. Illuminationcolor: 0.005Lux @ (F1.6，AGC ON) B/W: 0.001Lux @ (F1.6, AGC ON)
Shutter Speed1/1 s to 1/30000 s
Day & NightICR
Zoom20 × optical, 16 × digital
Slow Shutteryes

Lens
Focal Length4.8 mm to 96 mm, 20 × optical
FOVHorizontal field of view: 57.6° to 3.4° (wide-tele), Vertical field of view: 34.4° to 2° (wide-tele), Diagonal field of view: 64.5° to 3.9° (wide-tele)
Focussemi-auto,manual,auto
ApertureF1.6
Zoom Speedapprox.2.9s

PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)0° to 90° (Auto Flip)
Pan SpeedConfigurable, from 0.1°/s to 160°/s, preset speed: 160°/s
Tilt SpeedConfigurable, from 0.1°/s to 120°/s, Preset Speed: 120°/s
Proportional Panyes
Presets300
Preset Freezingyes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioningyes
PTZ Status Displayyes
Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Power-off Memoryyes

Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720);
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Bit Rate32 kbps to 16384 kbps
H.264 TypeBaseline profile,Main profile,High profile
H.265 TypeMain profile
Scalable Video Coding (SVC)yes
Region of Interest (ROI)yes

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live ViewUp to 20 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+

Image Parameters Switchyes
Image SettingsSaturation, brightness, contrast, sharpness
Day/Night Switchauto
SNR＞52dB
Defogyes
Image EnhancementHLC/BLC/3D DNR/EIS/Regional Exposure/Regional Focus
Privacy Maskup to 24 masks

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm1-ch alarm input and 1-ch alarm output

Event
Basic EventMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output
Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection,face detection
LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Smart Linkagemanual tracking, panorama tracking

General
Power12 VDC ±25 %, max. 7 W, PoE (802.3af), ClassA , 36-57V, max. 7W
DimensionØ184 mm × 264.2 mm (Ø7.2" × 10.4")
WeightApprox. 8 kg (17.64 lb.)
MaterialSUS316L stainless steel with anti-corrosion surface spray treatment
Operating ConditionTemperature: -30°C to 60°C (-22°F to 140°F)，Humidity: ≤ 95%
General Functionmirror,password protection,watermark,IP address filter
Demistyes

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
ProtectionIP68, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Explosion-Proof ProtectionIECEx：IECEx NEP 20.0018X ATEX：SEV 20 ATEX 0415 X ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db
