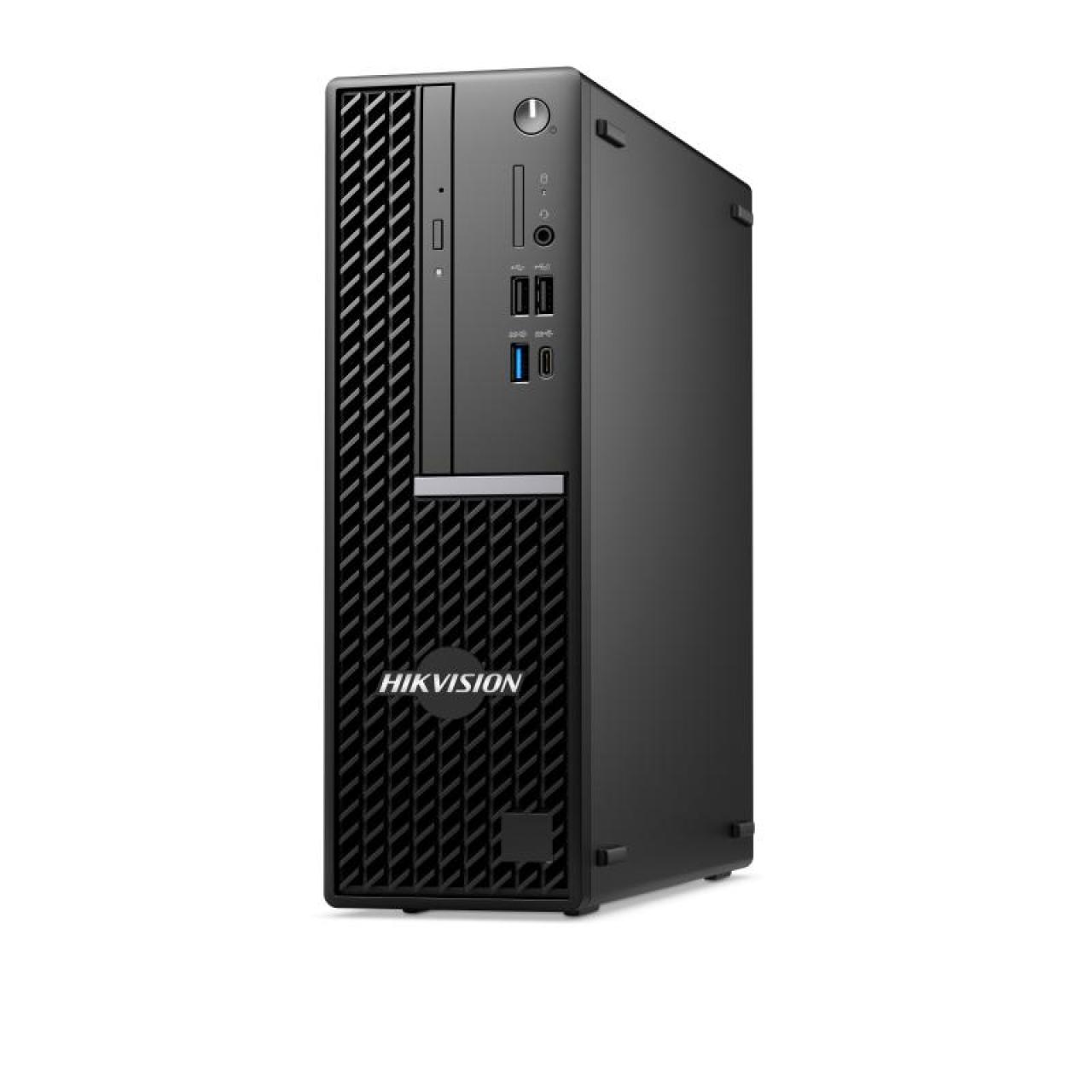

Tower Workstation

  • The tower workstation combines powerful functions with a compact design, which can be used as a server and control client at the same time
  • 1) Four-screen independent output for efficient management
  • 2) Integrated GPU supports great decoding capability
  • All-in-one software and hardware, no activation required, easy delivery and reliable service.
  • 1) Guaranteed compatibility: Tested by professional testing team to ensure stable operation
  • 2) Reliable after-sales service: 24/7 platinum after-sales service
View Less
View more
Data Sheet
Sales Inquiry
HikCentral-L-VET/HW5/32
Data Sheet

Specification

  • Devices and Resources
  • Video Management32ch by default (Including 2 ANPR Cameras), can be expanded into 128ch (Including ANPR Cameras and Cameras with Face & Body Recognition)
  • ANPR Cameras2ch by default, can be expanded into 8ch
  • Face & Body RecognitionNot included, can be expanded into 16ch
  • People Counting ReportNot included, can be expanded
  • Access Control/Intercom4 doors by default, can be expanded into 32 doors
  • Performance
  • Storage of Events or Alarms without Pictures10/s
  • Events or Alarms Sent to Clients10/s，10 Client/s (Including Control Clients and Mobile Clients）
  • Picture Storage10/s (Including event/alarm pictures, face pictures, and vehicle pictures)
  • Data Retention Period Stored for 36 Months
  • Decoding Performance
  • 4CIF (704*576)/H.264/1024 kbps * 30 fpsMaximum Hardware Decoding Channels：62 Maximum Software Decoding Channels：42
  • 4CIF (704*576)/H.265/512 kbps * 30 fpsMaximum Hardware Decoding Channels：62 Maximum Software Decoding Channels：42
  • 720P (1280*720)/H.264/2048 kbps * 30 fpsMaximum Hardware Decoding Channels：42 Maximum Software Decoding Channels：24
  • 720P (1280*720)/H.265/1024 kbps * 30 fpsMaximum Hardware Decoding Channels：42 Maximum Software Decoding Channels：24
  • 1080P (1920 × 1080)/H.264/4096 kbps * 30 fpsMaximum Hardware Decoding Channels：32 Maximum Software Decoding Channels：16
  • 1080P (1920 × 1080)/H.265/2048 kbps * 30 fpsMaximum Hardware Decoding Channels：32 Maximum Software Decoding Channels：16
  • 4 MP (2560 × 1440)/H.264/8192 kbps * 30 fpsMaximum Hardware Decoding Channels：24 Maximum Software Decoding Channels：10
  • 4 MP (2560 × 1440)/H.265/4096 kbps * 30 fpsMaximum Hardware Decoding Channels：24 Maximum Software Decoding Channels：10
  • 8 MP (3840 × 2160)/H.264/16384 kbps * 30 fpsMaximum Hardware Decoding Channels：12 Maximum Software Decoding Channels：5
  • 8 MP (3840 × 2160)/H.265/8192 kbps * 30 fpsMaximum Hardware Decoding Channels：12 Maximum Software Decoding Channels：5
  • 6 MP (2560 × 2560) /H.264/12288 kbps * 30 fpsMaximum Hardware Decoding Channels：18 Maximum Software Decoding Channels：8
  • 6 MP (2560 × 2560) /H.265/6144 kbps * 30 fpsMaximum Hardware Decoding Channels：18 Maximum Software Decoding Channels：8
  • 12 MP (4000 × 4000)/H.264/16384 kbps * 20 fpsMaximum Hardware Decoding Channels：10 Maximum Software Decoding Channels：4
  • 12 MP (4000 × 4000)/H.265/8192 kbps * 20 fpsMaximum Hardware Decoding Channels：10 Maximum Software Decoding Channels：4
  • Hardware Specifications
  • CPUi5-12500， 3 GHz, 18 MB Cache， 6 Cores, 12 Threads
  • MemoryDefault Configuration: • 16GB (2 x 8GB) Capacity: • Supported: 8GB/16GB/32GB, DDR4 , 3200MHz • Slots: 4 x DDR4 slots, supports 4x32 GB max.
  • Hard DisksDefault Configuration: • 1TB SSD Capacity: • Supported: 256GB/ 512GB/ 1TB M.2 PCIe NVMe Gen3 x4 SSD • Supported: 1TB/ 2TB/ 4TB 7.2K SATA HDD • Slots: 1 × M.2 slot, supports 1×1 TB SSD max. 1 × 3.5-inch SATA HDD slot, supports 1×4 TB HDD max.
  • Supported Operating SystemsWin10 IoT
  • Graphic CardUHD Graphics 770 (integrated in i5-12500/ i7-12700)
  • PCIe Slots2 PCIe slots: • Slot 1: Half-height Gen 4 PCIe x16 slot • Slot 2: Half-height Gen 3 PCIe x4 open-end slot
  • Ports
  • Type-C1
  • USB 3.01（Front）+4（Rear）
  • USB 2.02（Front）+2（Rear）
  • Universal Audio Port1
  • Ethernet Port1 x LAN 10/100/1000
  • VGA/（HDMI port can be used as VGA port）
  • HDMI1
  • DP3（DP port can be used as HDMI port）
  • General
  • Net Weight5.63 kg (12.42 lb)
  • Gross Weight6.72 kg (14.81 lb)
  • Dimension (W × H × D)92.60 mm × 290.00 mm × 292.80 mm (3.65'' × 11.42'' × 11.53'')
  • Package Dimensions (W × H × D)394.00 mm × 264.00 mm × 487.00 mm (15.51'' × 10.39'' × 19.17'')
  • Operating Temperature5 °C to 45 °C (41 °F to 113 °F)
  • Storage Temperature-40 °C to 70 °C (-104 °F to 158 °F)
  • Operating Humidity20% to 80% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply300 W PSU，92% Energy efficiency，80 Plus Platinum
  • Form FactorTower SFF
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Devices and Resources
Video Management
32ch by default (Including 2 ANPR Cameras), can be expanded into 128ch (Including ANPR Cameras and Cameras with Face & Body Recognition)
ANPR Cameras
2ch by default, can be expanded into 8ch
Face & Body Recognition
Not included, can be expanded into 16ch
People Counting Report
Not included, can be expanded
Access Control/Intercom
4 doors by default, can be expanded into 32 doors
Performance
Storage of Events or Alarms without Pictures
10/s
Events or Alarms Sent to Clients
10/s，10 Client/s (Including Control Clients and Mobile Clients）
Picture Storage
10/s (Including event/alarm pictures, face pictures, and vehicle pictures)
Data Retention Period
Stored for 36 Months
Decoding Performance
4CIF (704*576)/H.264/1024 kbps * 30 fps
Maximum Hardware Decoding Channels：62 Maximum Software Decoding Channels：42
4CIF (704*576)/H.265/512 kbps * 30 fps
Maximum Hardware Decoding Channels：62 Maximum Software Decoding Channels：42
720P (1280*720)/H.264/2048 kbps * 30 fps
Maximum Hardware Decoding Channels：42 Maximum Software Decoding Channels：24
720P (1280*720)/H.265/1024 kbps * 30 fps
Maximum Hardware Decoding Channels：42 Maximum Software Decoding Channels：24
1080P (1920 × 1080)/H.264/4096 kbps * 30 fps
Maximum Hardware Decoding Channels：32 Maximum Software Decoding Channels：16
1080P (1920 × 1080)/H.265/2048 kbps * 30 fps
Maximum Hardware Decoding Channels：32 Maximum Software Decoding Channels：16
4 MP (2560 × 1440)/H.264/8192 kbps * 30 fps
Maximum Hardware Decoding Channels：24 Maximum Software Decoding Channels：10
4 MP (2560 × 1440)/H.265/4096 kbps * 30 fps
Maximum Hardware Decoding Channels：24 Maximum Software Decoding Channels：10
8 MP (3840 × 2160)/H.264/16384 kbps * 30 fps
Maximum Hardware Decoding Channels：12 Maximum Software Decoding Channels：5
8 MP (3840 × 2160)/H.265/8192 kbps * 30 fps
Maximum Hardware Decoding Channels：12 Maximum Software Decoding Channels：5
6 MP (2560 × 2560) /H.264/12288 kbps * 30 fps
Maximum Hardware Decoding Channels：18 Maximum Software Decoding Channels：8
6 MP (2560 × 2560) /H.265/6144 kbps * 30 fps
Maximum Hardware Decoding Channels：18 Maximum Software Decoding Channels：8
12 MP (4000 × 4000)/H.264/16384 kbps * 20 fps
Maximum Hardware Decoding Channels：10 Maximum Software Decoding Channels：4
12 MP (4000 × 4000)/H.265/8192 kbps * 20 fps
Maximum Hardware Decoding Channels：10 Maximum Software Decoding Channels：4
Hardware Specifications
CPU
i5-12500， 3 GHz, 18 MB Cache， 6 Cores, 12 Threads
Memory
Default Configuration: • 16GB (2 x 8GB) Capacity: • Supported: 8GB/16GB/32GB, DDR4 , 3200MHz • Slots: 4 x DDR4 slots, supports 4x32 GB max.
Hard Disks
Default Configuration: • 1TB SSD Capacity: • Supported: 256GB/ 512GB/ 1TB M.2 PCIe NVMe Gen3 x4 SSD • Supported: 1TB/ 2TB/ 4TB 7.2K SATA HDD • Slots: 1 × M.2 slot, supports 1×1 TB SSD max. 1 × 3.5-inch SATA HDD slot, supports 1×4 TB HDD max.
Supported Operating Systems
Win10 IoT
Graphic Card
UHD Graphics 770 (integrated in i5-12500/ i7-12700)
PCIe Slots
2 PCIe slots: • Slot 1: Half-height Gen 4 PCIe x16 slot • Slot 2: Half-height Gen 3 PCIe x4 open-end slot
Ports
Type-C
1
USB 3.0
1（Front）+4（Rear）
USB 2.0
2（Front）+2（Rear）
Universal Audio Port
1
Ethernet Port
1 x LAN 10/100/1000
VGA
/（HDMI port can be used as VGA port）
HDMI
1
DP
3（DP port can be used as HDMI port）
General
Net Weight
5.63 kg (12.42 lb)
Gross Weight
6.72 kg (14.81 lb)
Dimension (W × H × D)
92.60 mm × 290.00 mm × 292.80 mm (3.65'' × 11.42'' × 11.53'')
Package Dimensions (W × H × D)
394.00 mm × 264.00 mm × 487.00 mm (15.51'' × 10.39'' × 19.17'')
Operating Temperature
5 °C to 45 °C (41 °F to 113 °F)
Storage Temperature
-40 °C to 70 °C (-104 °F to 158 °F)
Operating Humidity
20% to 80% (no condensation)
Storage Humidity
5% to 95% (no condensation)
Power Supply
300 W PSU，92% Energy efficiency，80 Plus Platinum
Form Factor
Tower SFF
