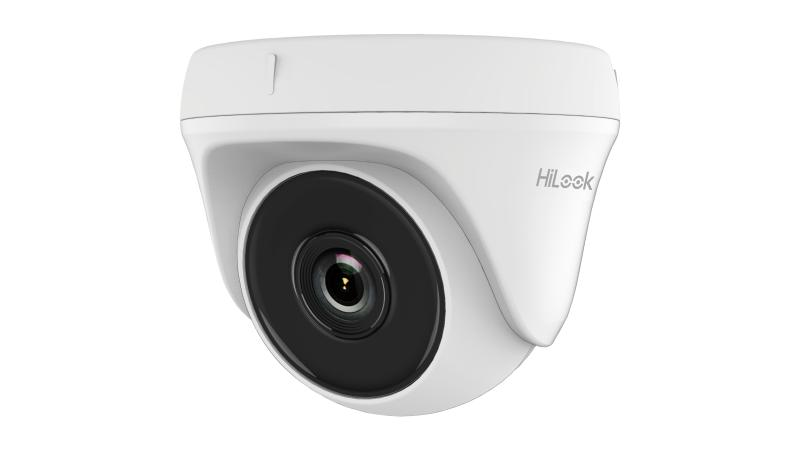

1 MP Fixed Turret Camera

  • HD 720p turret camera
  • Smart IR: up to 20 m IR distance
  • Water and dust resistant (IP66).

Specification
  • Camera
  • Image Sensor1 MP CMOS image sensor
  • Max. Resolution1280 (H) × 720 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1/25 (1/30) s to 1/50,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm
  • Focal Length & FOV92° (2.8 mm), 70.9° (3.6 mm), 56.7° (6 mm)
  • Lens MountM12
  • Image
  • Image SettingsSharpness, Contrast, Color Gain, DNR
  • Frame RatePAL:720p@25fps,NTSC: 720p@30fps
  • Day/Night ModeSmart/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)DWDR
  • Image EnhancementBLC
  • AGCHigh/Middle/Low/Off
  • Supplement Detection(PIR)
  • PIR RangeUp to 20 m
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialEnclosure: Plastic,Main body: Metal
  • DimensionØ 85.4 mm × 76.12 mm (Ø 3.38" × 2.67")
  • Weight190 g (0.42 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • LanguageEnglish, Chinese
  • Power Supply12 VDC ±15%
  • ConsumptionMax. 4 W
  • IR Range<30m
  • Approval
  • ProtectionIP66
