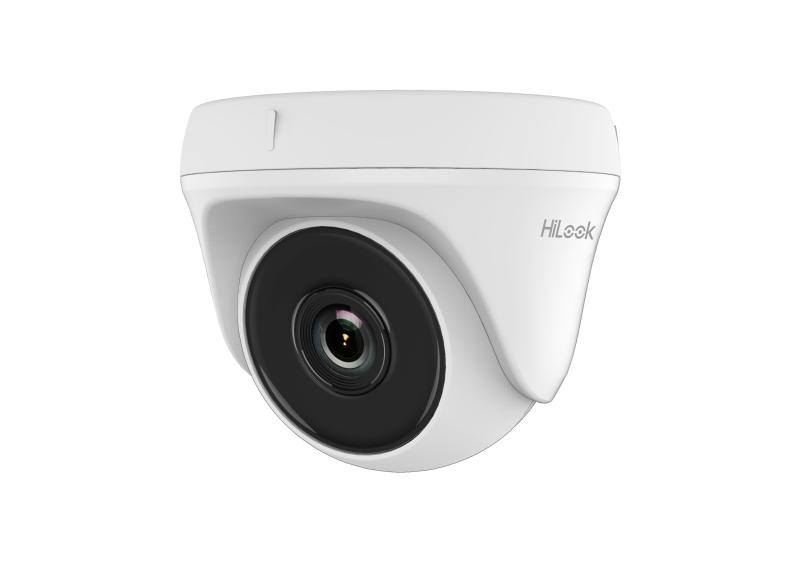

5 MP Indoor Fixed Turret Camera

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 20 m IR distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)

Specification
  • Camera
  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°
  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR, AGC
  • Frame RateTVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
  • Interface
  • Video Output1 HD analog output
  • General
  • Material Plastic
  • DimensionØ 85.4 mm × 76.12 mm (Ø 3.38" × 2.67")
  • Approx. 120 g (0.26 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ±25%
  • ConsumptionMax. 4.3 W
  • IR RangeUp to 20 m
Specification
Firmware
Applied to:
THC-T150-P(2.8mm)(HiLook STD)
Applied to:
THC-T150-P(3.6mm)(HiLook STD)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
