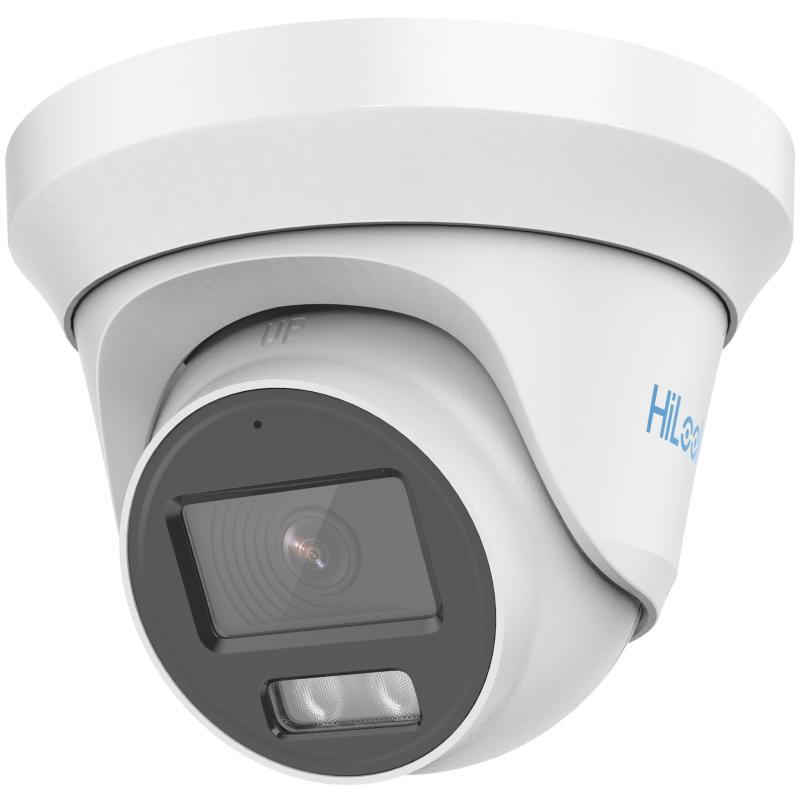

3K ColorVu Audio Fixed Turret Camera

  • High quality imaging with 3K, 2960 × 1665 resolution
  • 24/7 color imaging with F1.0 aperture
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 40 m white light distance for bright night imaging
  • High quality audio with audio over coaxial cable
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP66)

Available models:

THC-T259-MS(2.8mm)(HiLook STD)
THC-T259-MS(3.6mm)(HiLook STD)

Specification

  • Camera
  • Image Sensor3K CMOS
  • Signal SystemPAL/NTSC
  • Resolution2960 (H) × 1665 (V)
  • Frame RateTVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps AHD: 4 MP @ 25 fps/30 fps CVI: 4 MP @ 25 fps/30 fps CVBS: PAL/NTSC
  • Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Lens2.8 mm/3.6 mm fixed focal lens
  • Field of View2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137° 3.6 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 108°
  • Lens MountM12
  • Light AlarmSolid Light Alarm (White Light)
  • Day & Night24/7 Color Imaging
  • WDR (Wide Dynamic Range)Digital WDR
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Image
  • White LightAuto/Off
  • Image ModeSTD/HIGH-SAT/HIGHLIGHT
  • AGCYes
  • Day/Night ModeColor
  • White BalanceAuto/Manual
  • AE (Auto Exposure) ModeDWDR;BLC;HLC;Global
  • Noise Reduction2D DNR
  • LanguageEnglish
  • FunctionBrightness;Sharpness;Anti-Banding
  • Lighting Mode White Light
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • Operating Conditions-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
  • Power Supply12 VDC±25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 4.2 W
  • Protection LevelIP66
  • MaterialMetal
  • White Light RangeUp to 40 m
  • DimensionΦ 127.92 mm × 97.8 mm (Φ 5.04" × 3.86")
  • Approx. 480 g (1.06 lb.)
