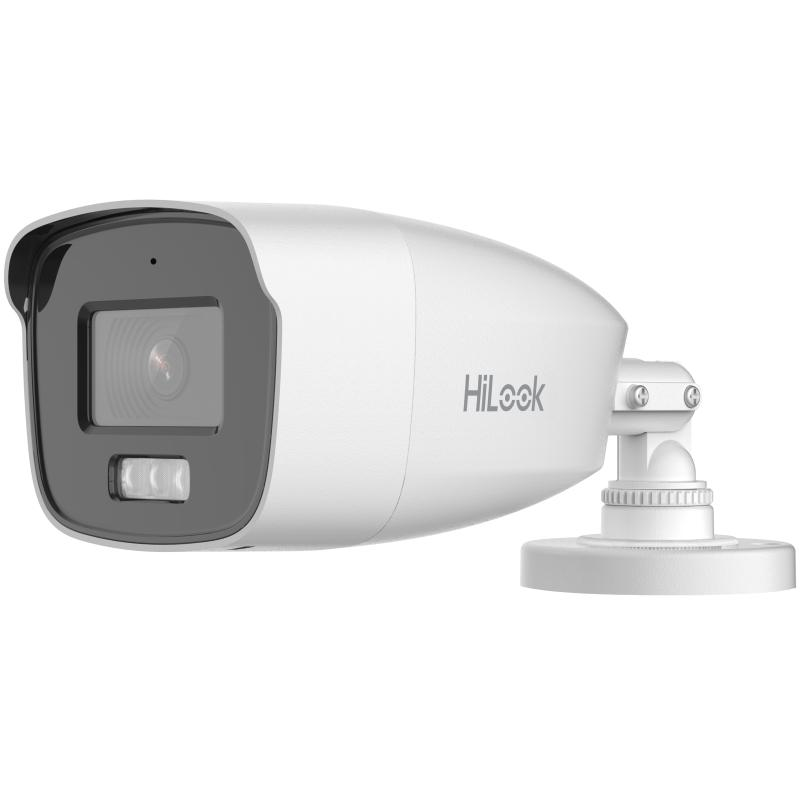

3K Dual Light Audio Fixed Bullet Camera

  • High quality imaging with 3K, 2960 × 1665 resolution
  • Fixed focal lens, 2.8 mm, 3.6 mm and 6 mm optional
  • Up to 40 m IR distance for bright night imaging
  • Up to 40 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS）
  • Water and dust resistant (IP66)
  • High quality audio with audio over coaxial cable, built-in microphone

View Less
View more

Available models:

THC-B257-LMS(2.8mm)(HiLook STD)
THC-B257-LMS(3.6mm)(HiLook STD)
THC-B257-LMS(6mm)(HiLook STD)

Specification

  • Camera
  • Image Sensor3K CMOS
  • Max. Resolution2960 (H) × 1665 (V)
  • Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotate: 0 to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4° 6 mm, horizontal FOV: 51.8°, vertical FOV: 32.4°, diagonal FOV: 63.1°
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeWhite Light;IR
  • Supplement Light RangeIR : up to 40 m White Light : up to 40 m
  • Image
  • Image SettingsBrightness, Sharpness, Smart IR
  • Frame RateTVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementDWDR/BLC/HLC/Global
  • White BalanceAuto/Manual
  • AGCYes
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialFront cover: metal Main body: metal
  • Dimension223.3 mm × 75.4 mm × 87.3 mm (8.79" × 2.97" × 3.44")
  • WeightApprox. 569 g (1.25 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 3.3 W
  • Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Min. Illumination
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 180°, Rotate: 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4° 6 mm, horizontal FOV: 51.8°, vertical FOV: 32.4°, diagonal FOV: 63.1°
Lens Mount
M12
Illuminator
Supplement Light Type
White Light;IR
Supplement Light Range
IR : up to 40 m White Light : up to 40 m
Image Settings
Brightness, Sharpness, Smart IR
Frame Rate
TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR/BLC/HLC/Global
White Balance
Auto/Manual
AGC
Yes
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Front cover: metal Main body: metal
Dimension
223.3 mm × 75.4 mm × 87.3 mm (8.79" × 2.97" × 3.44")
Weight
Approx. 569 g (1.25 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
Communication
HIKVISION-C
Language
English
Power Supply
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Consumption
Max. 3.3 W
Approval
Protection
IP66
