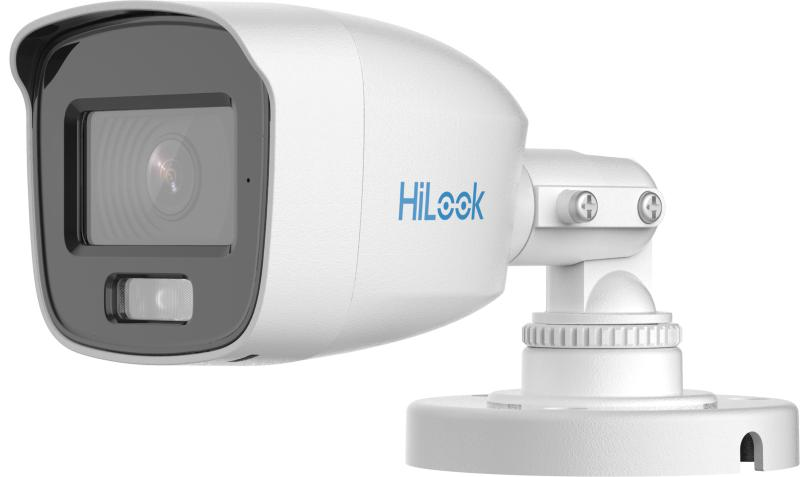

2MP ColorVu Audio Fixed Mini Bullet Camera

  • High quality imaging with 2 MP, 1920 × 1080 resolution
  • 24/7 color imaging with F1.0 aperture
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 20 m white light distance for bright night imaging
  • High quality audio with audio over coaxial cable, built-in mic
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP66)

View Less
View more

Available models:

THC-B129-MS(2.8mm)(HiLook STD)
THC-B129-MS(3.6mm)(HiLook STD)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125° 3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Image SettingsBrightness, Sharpness, Anti-banding, AGC
  • Frame RateTVI: 1080p @25 fps/30 fps CVI: 1080p @25 fps/30 fps AHD: 1080p @25 fps/30 fps CVBS: PAL/NTSC
  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementDWDR, BLC, HLC, Global
  • Noise Reduction3D DNR/2D DNR
  • White BalanceAuto, Manual
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • AlarmSolid Light Alarm (White Light)
  • General
  • MaterialMetal
  • Power12 VDC ± 25%, max. 2 W,*You are recommended to use one power adapter to supply the power for one camera.
  • DimensionØ70 mm × 161.2 mm (2.76" × 6.35")
  • WeightApprox. 286 g (0.63 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125° 3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°
Lens Mount
M12
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 20 m
Smart Supplement Light
Yes
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
Brightness, Sharpness, Anti-banding, AGC
Frame Rate
TVI: 1080p @25 fps/30 fps CVI: 1080p @25 fps/30 fps AHD: 1080p @25 fps/30 fps CVBS: PAL/NTSC
Day/Night Mode
Color
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR, BLC, HLC, Global
Noise Reduction
3D DNR/2D DNR
White Balance
Auto, Manual
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Alarm
Solid Light Alarm (White Light)
General
Material
Metal
Power
12 VDC ± 25%, max. 2 W,*You are recommended to use one power adapter to supply the power for one camera.
Dimension
Ø70 mm × 161.2 mm (2.76" × 6.35")
Weight
Approx. 286 g (0.63 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP66
For better user experience, we highly recommend you to update your device to the latest firmware asap.
