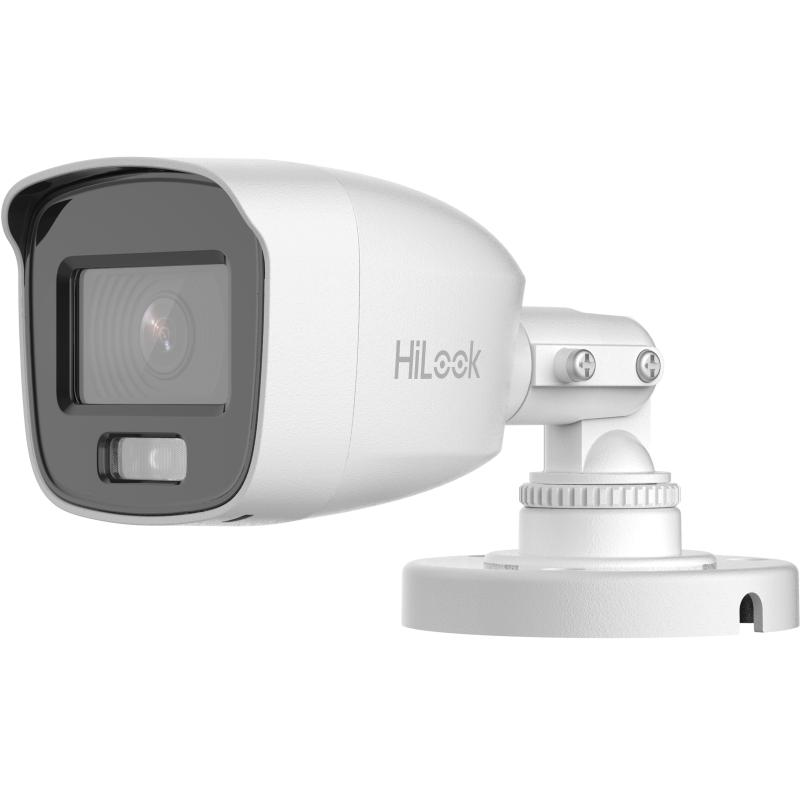

THC-B127-P


    2 MP White Light Fixed Mini Bullet Camera

    • High quality imaging with 2 MP, 1920 × 1080 resolution
    • 2.8 mm, 3.6 mm fixed focal lens
    • Up to 20 m white light distance for bright night imaging
    • One port for four switchable signals (TVI/AHD/CVI/CVBS)

    View Less
    View more

    Available models:

    THC-B127-P(2.8mm)(HiLook STD)
    THC-B127-P(3.6mm)(HiLook STD)

    Specification

    • Camera
    • Image Sensor2 MP CMOS
    • Signal SystemPAL/NTSC
    • Resolution1920 (H) × 1080 (V)
    • Frame RateTVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC
    • Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with white light
    • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
    • Lens2.8 mm/3.6 mm fixed lens
    • Field of View2.8 mm, horizontal FOV: 109°, vertical FOV: 57°, diagonal FOV: 129° 3.6 mm, horizontal FOV: 87°, vertical FOV: 44°, diagonal FOV: 105°
    • Lens MountM12
    • Day & Night24/7 Color Imaging
    • WDR (Wide Dynamic Range)Digital WDR
    • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
    • Image
    • White LightAuto/Off
    • Image ModeSTD/HIGH-SAT
    • AGCYes
    • Day/Night ModeColor
    • White BalanceAuto/Manual
    • AE (Auto Exposure) ModeDWDR;BLC;HLC;Global
    • Noise Reduction2D DNR
    • LanguageEnglish
    • FunctionBrightness;Contrast;Mirror;Sharpness;Smart Light;Saturation
    • Interface
    • Video OutputSwitchable TVI/AHD/CVI/CVBS
    • Power Output12 VDC
    • General
    • Operating Conditions-40°C to 45°C (-40°F to 113°F), Humidity: 90% or less (non-condensing)
    • Power Supply12 VDC±25% *You are recommended to use one power adapter to supply the power for one camera.
    • ConsumptionMax. 2.3 W
    • MaterialPlastic
    • White Light RangeUp to 20 m
    • Dimension162.7 mm × 70 mm × 70 mm (6.41" × 2.75" × 2.75")
    • Weight Approx. 152.5 g (0.34 lb.)
    • Approval
    • ProtectionIP66
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Camera
    Image Sensor
    2 MP CMOS
    Signal System
    PAL/NTSC
    Resolution
    1920 (H) × 1080 (V)
    Frame Rate
    TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC
    Min. Illumination
    0.01 Lux @ (F1.6, AGC ON), 0 Lux with white light
    Shutter Time
    PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
    Lens
    2.8 mm/3.6 mm fixed lens
    Field of View
    2.8 mm, horizontal FOV: 109°, vertical FOV: 57°, diagonal FOV: 129° 3.6 mm, horizontal FOV: 87°, vertical FOV: 44°, diagonal FOV: 105°
    Lens Mount
    M12
    Day & Night
    24/7 Color Imaging
    WDR (Wide Dynamic Range)
    Digital WDR
    Angle Adjustment
    Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
    White Light
    Auto/Off
    Image Mode
    STD/HIGH-SAT
    AGC
    Yes
    Day/Night Mode
    Color
    White Balance
    Auto/Manual
    AE (Auto Exposure) Mode
    DWDR;BLC;HLC;Global
    Noise Reduction
    2D DNR
    Language
    English
    Function
    Brightness;Contrast;Mirror;Sharpness;Smart Light;Saturation
    Interface
    Video Output
    Switchable TVI/AHD/CVI/CVBS
    Power Output
    12 VDC
    General
    Operating Conditions
    -40°C to 45°C (-40°F to 113°F), Humidity: 90% or less (non-condensing)
    Power Supply
    12 VDC±25% *You are recommended to use one power adapter to supply the power for one camera.
    Consumption
    Max. 2.3 W
    Material
    Plastic
    White Light Range
    Up to 20 m
    Dimension
    162.7 mm × 70 mm × 70 mm (6.41" × 2.75" × 2.75")
    Weight
    Approx. 152.5 g (0.34 lb.)
    Approval
    Protection
    IP66
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Camera
    • Image Sensor2 MP CMOS
    • Signal SystemPAL/NTSC
    • Resolution1920 (H) × 1080 (V)
    • Frame RateTVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC
    • Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with white light
    • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
    • Lens2.8 mm/3.6 mm fixed lens
    • Field of View2.8 mm, horizontal FOV: 109°, vertical FOV: 57°, diagonal FOV: 129° 3.6 mm, horizontal FOV: 87°, vertical FOV: 44°, diagonal FOV: 105°
    • Lens MountM12
    • Day & Night24/7 Color Imaging
    • WDR (Wide Dynamic Range)Digital WDR
    • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
    • White LightAuto/Off
    • Image ModeSTD/HIGH-SAT
    • AGCYes
    • Day/Night ModeColor
    • White BalanceAuto/Manual
    • AE (Auto Exposure) ModeDWDR;BLC;HLC;Global
    • Noise Reduction2D DNR
    • LanguageEnglish
    • FunctionBrightness;Contrast;Mirror;Sharpness;Smart Light;Saturation
    Interface
    • Video OutputSwitchable TVI/AHD/CVI/CVBS
    • Power Output12 VDC
    General
    • Operating Conditions-40°C to 45°C (-40°F to 113°F), Humidity: 90% or less (non-condensing)
    • Power Supply12 VDC±25% *You are recommended to use one power adapter to supply the power for one camera.
    • ConsumptionMax. 2.3 W
    • MaterialPlastic
    • White Light RangeUp to 20 m
    • Dimension162.7 mm × 70 mm × 70 mm (6.41" × 2.75" × 2.75")
    • Weight Approx. 152.5 g (0.34 lb.)
    Approval
    • ProtectionIP66
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Firmware

    Firmware_V1.03.02_230703
    Applied to:
    THC-B127-P(2.8mm)(HiLook STD)
    THC-B127-P(3.6mm)(HiLook STD)
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
