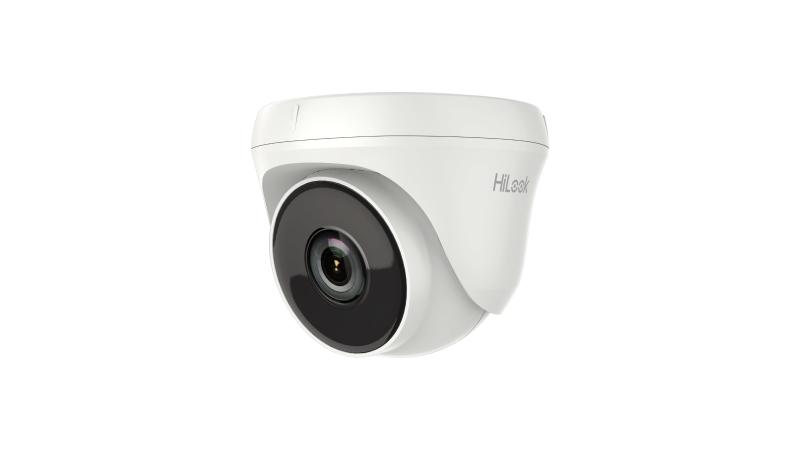

2 MP Fixed Turret Camera

  • 1080p turret camera
  • Smart IR: up to 40 m IR distance
  • Water and dust resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
View Less
View more

Available models:

THC-T220-P(2.8mm)(HiLook STD)
THC-T220-P(3.6mm)(HiLook STD)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness;Sharpness;Mirror;AGC
  • Frame RateTVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC;HLC;Global
  • Noise Reduction2D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • Built-in MicrophoneYes
  • General
  • Power12 VDC ± 25%, max. 3.7 W
  • MaterialMetal
  • Dimension58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
  • WeightApprox. 292 g (0.64 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens Mount
M12
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness;Sharpness;Mirror;AGC
Frame Rate
TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC;HLC;Global
Noise Reduction
2D DNR
White Balance
Auto/Manual
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
Built-in Microphone
Yes
General
Power
12 VDC ± 25%, max. 3.7 W
Material
Metal
Dimension
58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
Weight
Approx. 292 g (0.64 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP66
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
  • Signal SystemPAL/NTSC
Lens
  • Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
  • Lens MountM12
Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness;Sharpness;Mirror;AGC
  • Frame RateTVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC;HLC;Global
  • Noise Reduction2D DNR
  • White BalanceAuto/Manual
Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • Built-in MicrophoneYes
General
  • Power12 VDC ± 25%, max. 3.7 W
  • MaterialMetal
  • Dimension58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
  • WeightApprox. 292 g (0.64 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Firmware
Firmware_V1.08.02_210803
Applied to:
THC-T220-P(2.8mm)(HiLook STD)
THC-T220-P(3.6mm)(HiLook STD)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
