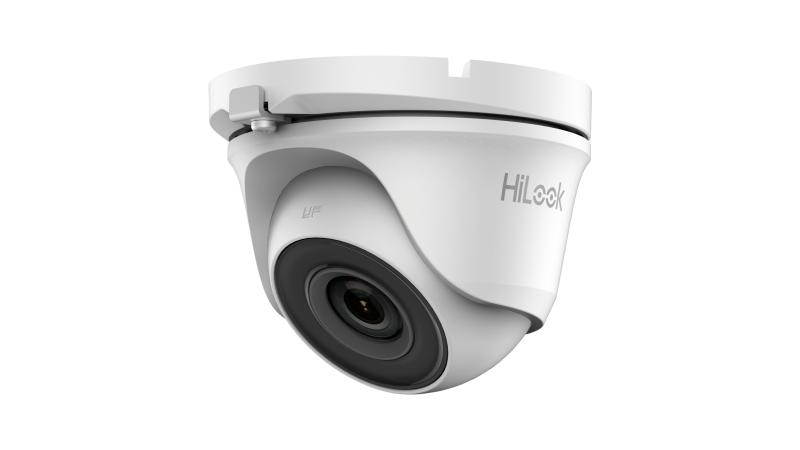

2 MP Ultra Low Light Fixed Turret Camera

  • 1080p turret camera
  • Good night-time performance with ultra-low light 0.005 lux
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Available models:

THC-T123-M(2.8mm)(HiLook STD)
THC-T123-M(3.6mm)(HiLook STD)

Specification
  • Camera
  • Image Sensor2 MP CMOS image sensor
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Slow ShutterMax. 16 times
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm
  • Focal Length & FOV2.8 mm, horizontal FOV: 106° 3.6 mm, horizontal FOV: 82° 6 mm, horizontal FOV: 51°
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness;Sharpness;Mirror;AGC
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥120 dB
  • Image EnhancementBLC;HLC
  • Noise Reduction3D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
  • General
  • Power12 VDC ±25%, max. 4.6 W *You are recommended to use one power adapter to supply the power for one camera.
  • MaterialMetal
  • DimensionØ 82.6 mm × 69.66 mm (Ø 3.38" × 2.74")
  • 235 g (0.52 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • LanguageEnglish
  • Approval
  • ProtectionIP66
