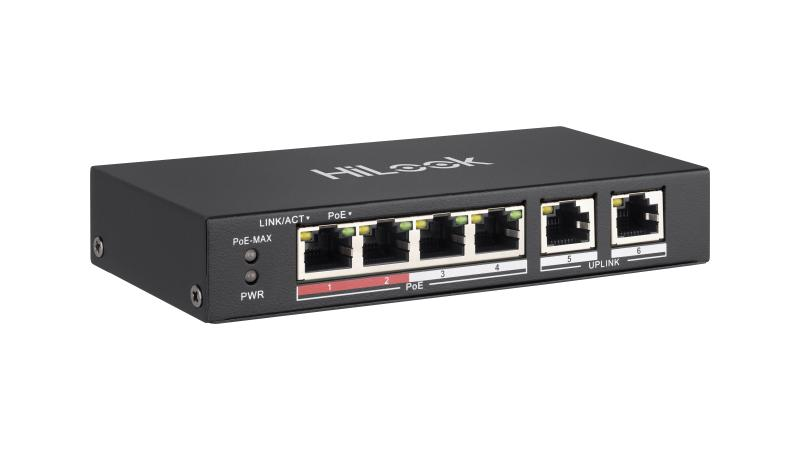

4 Port Fast Ethernet Unmanaged POE Switch

  • 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
  • IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
  • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
  • 6 KV surge protection for PoE ports.
  • Up to 250 m long-range transmission.
  • Wire-speed forwarding.
  • Store-and-forward switching.
  • Solid high-strength metal shell.
  • Reliable fan-free design
View Less
View more

Available models:

NS-0106P-35

Specification

  • PoE Power Supply
  • PoE StandardPorts 1 to 4: IEEE 802.3af, IEEE 802.3at
  • PoE Power PinPorts 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
  • PoE PortPorts 1 to 4
  • Max. Port PowerPorts 1 to 4: 30 W
  • PoE Power Budget35 W
  • Network Parameters
  • Port Number4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • High priority portsPorts 1 and 2
  • Ports for Long-Distance TransmissionPorts 1 to 4
  • MAC Address Table4 K
  • Switching Capacity1.6 Gbps
  • Packet Forwarding Rate0.8928 Mpps
  • Internal Cache768 Kbits
  • Dialing Function
  • Long RangePorts 1 to 4: up to 250m.
  • General
  • ShellMetal material, fan-free design
  • Gross Weight0.52
  • Net Weight0.265
  • Dimension (L × H × D)145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
  • Operating Temperature-10°C to 40°C (14°F to 104°F)
  • Storage Temperature-40°C to 85°C (-40°F to 185°F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 0.8 A
  • Power Consumption in Idle< 5 W
  • Power Souce38 W
  • Max. Power Consumption38 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Specification

Specification
PoE Power Supply
  • PoE StandardPorts 1 to 4: IEEE 802.3af, IEEE 802.3at
  • PoE Power PinPorts 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
  • PoE PortPorts 1 to 4
  • Max. Port PowerPorts 1 to 4: 30 W
  • PoE Power Budget35 W
Network Parameters
  • Port Number4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • High priority portsPorts 1 and 2
  • Ports for Long-Distance TransmissionPorts 1 to 4
  • MAC Address Table4 K
  • Switching Capacity1.6 Gbps
  • Packet Forwarding Rate0.8928 Mpps
  • Internal Cache768 Kbits
Dialing Function
  • Long RangePorts 1 to 4: up to 250m.
General
  • ShellMetal material, fan-free design
  • Gross Weight0.52
  • Net Weight0.265
  • Dimension (L × H × D)145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
  • Operating Temperature-10°C to 40°C (14°F to 104°F)
  • Storage Temperature-40°C to 85°C (-40°F to 185°F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 0.8 A
  • Power Consumption in Idle< 5 W
  • Power Souce38 W
  • Max. Power Consumption38 W
Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
