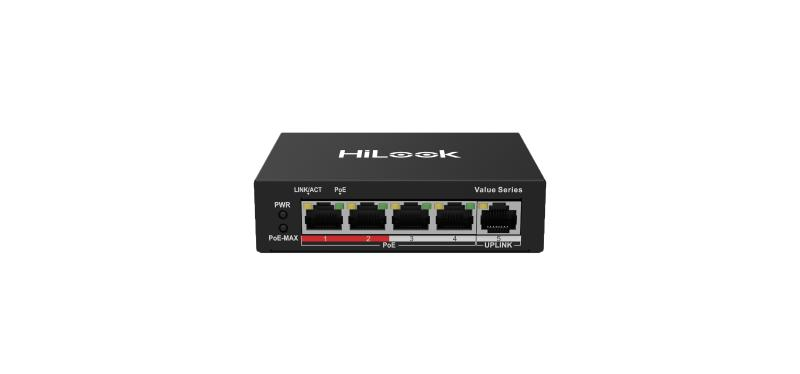

4 Port Fast Ethernet Unmanaged POE Switch

  • Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port
  • All ports support 6 kV lighting protection
  • 35 W PoE power budget
  • Maximum transmission distance is 250 meters
  • MAC address auto learning and auto aging

Specification
  • General
  • ShellMetal material, fan-free design
  • Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Power supply48 VDC, 0.8 A
  • Storage humidity5% to 95% (no condensation)
  • Net weight0.2 kg (0.4 lb)
  • Gross weight0.48 kg (1.06 lb)
  • Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
  • Operating humidity5% to 95% (no condensation)
  • Power consumption in idle3 W
  • Network parameters
  • Port number4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
  • Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding modeStore-and-forward switching
  • Working modeStandard mode (default); Extend mode
  • MAC address table1 K
  • Switching capacity1 Gbps
  • Packet forwarding rate0.744 Mpps
  • Internal cache448 Kbits
  • High priority portsPorts 1 to 2
  • Ports for long-distance transmissionPorts 1 to 4
  • PoE power supply
  • PoE standardIEEE 802.3af, IEEE 802.3at
  • PoE power pinSupports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
  • PoE portPorts 1 to 4
  • Max. port power30 W
  • PoE power budget35 W
  • Max. power consumption38 W
