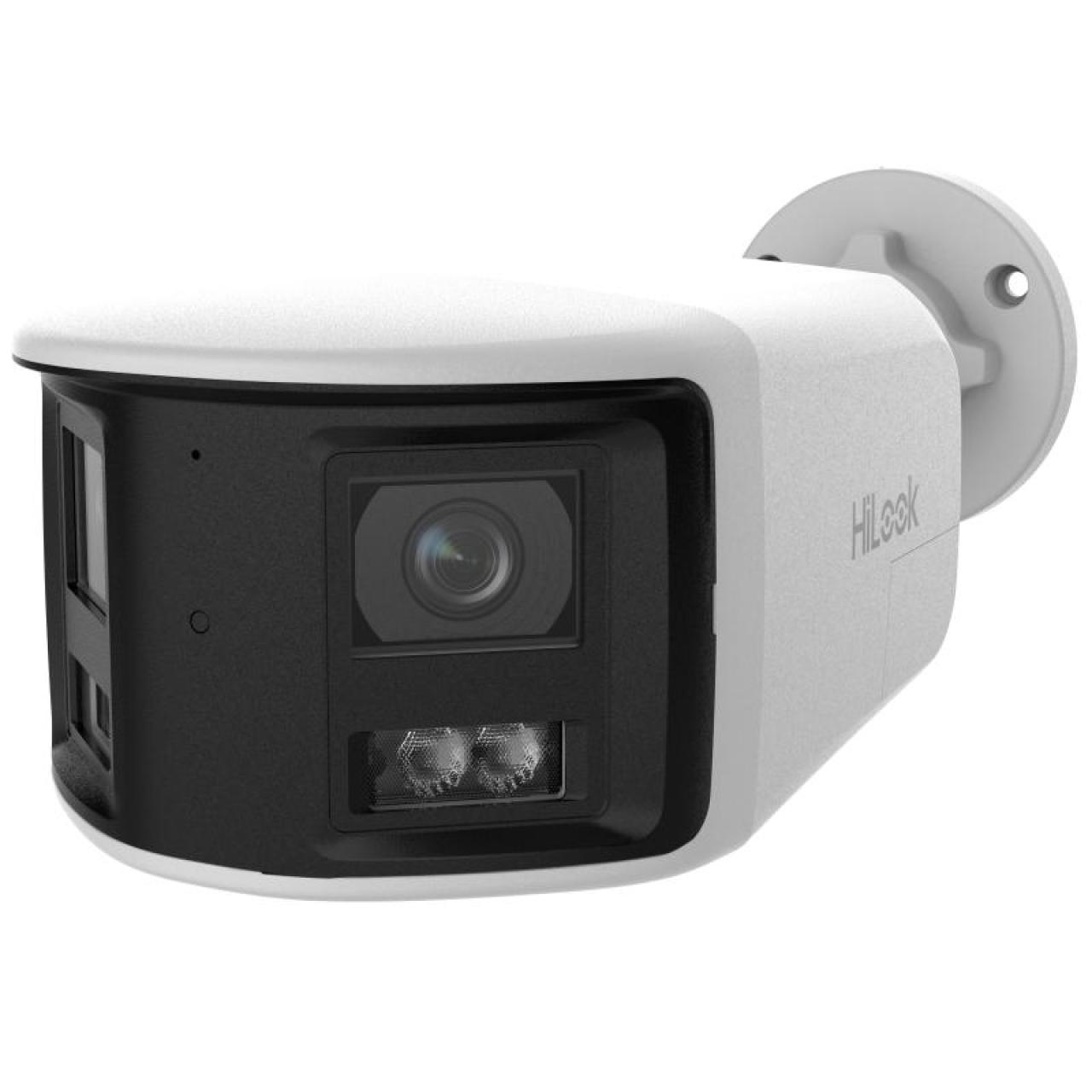

3K Panoramic 180° Wi-Fi 6 Outdoor Bullet Camera

  • High quality imaging with 6 MP resolution
  • Support Person and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)
  • 180° Field of view
  • Active strobe light and audio alarm to warn intruders off

View Less
View more
Data Sheet
Sales Inquiry

Available models:

IPC-CFW06-P(2.8mm)(HiLookSTD)/EU
View more View Less
IPC-CFW06-P
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.5" Progressive Scan CMOS
  • Max. Resolution3632 × 1632
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 mm
  • Focal Length & FOV2.8 mm, horizontal FOV 180°, vertical FOV 77°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6
  • DORI
  • DORI2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m
  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeIR: up to 30 m White Light: up to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 20 fps (3632 × 1632,2688 × 1200,1824 × 816) 60 Hz: 20 fps (3632 × 1632,2688 × 1200,1824 × 816)
  • Sub-Stream50 Hz: 20 fps (960 × 432) 60 Hz: 20 fps (960 × 432)
  • Video Compression Main stream: H.265 Sub-stream: H.265
  • Video Bit Rate32 Kbps to 4 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream
  • Scalable Video Coding (SVC) H.265 encoding
  • Audio
  • Audio TypeMono sound
  • Audio Compression G.711/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IPv4, IPv6, IGMP, UDP, QoS
  • Simultaneous Live ViewUp to 6 channels
  • APIISAPI,SDK
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • ClientiVMS-4200, HiLookVision *Wi-Fi connection with Hik-Connect directly is not possible
  • Web BrowserPlug-in required live view: IE 11, Local service: Chrome 91+, Firefox 88+, Edge 91+
  • Wi-Fi
  • Encryption ModeWPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
  • Wi-Fi ProtocolIEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
  • Frequency Range2.4 GHz to 2.4835 GHz
  • Channel Bandwidth 20/40 MHz,Only 802.11n supports 40 MHz
  • Modulation802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16QAM, 64QAM 802.11n: BPSK, QPSK, 16QAM, 64QAM 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
  • Transfer Rate802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 150 Mbps 802.11ax: up to 114 Mbps
  • Wireless RangeUp to 120 m (The performance varies based on actual environment)
  • Antenna1 Antenna
  • Image
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in MicrophoneYes,1 built-in microphone
  • Reset KeyYes
  • Built-in SpeakerYes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageNotify surveillance center, audible warning, strobe light flashing
  • General
  • Power 12 VDC ± 25%, 0.91 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection
  • MaterialFront cover: Metal, body: Plastic, bracket: Metal
  • Dimension103.6 mm × 76 mm × 234.4 mm (4.08" × 2.99" × 9.23")
  • Package Dimension344 mm × 144 mm × 93 mm (13.54" × 5.67" × 3.66")
  • Approx. 650 g (1.43 lb.)
  • With Package WeightApprox. 905 g (2.00 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionHeartbeat,anti-banding,password protection,password reset via email
  • Flashing LightWhite Light
  • Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • SafetyCB: IEC 62368-1: 2014+A11
  • RFCE-RED：EN 301 489-17 V3.3.1,EN 301 489-1 V2.2.3,EN 300 328 V2.2.2,EN IEC 62311:2020
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.5" Progressive Scan CMOS
Max. Resolution
3632 × 1632
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 mm
Focal Length & FOV
2.8 mm, horizontal FOV 180°, vertical FOV 77°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
IR: up to 30 m White Light: up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (3632 × 1632,2688 × 1200,1824 × 816) 60 Hz: 20 fps (3632 × 1632,2688 × 1200,1824 × 816)
Sub-Stream
50 Hz: 20 fps (960 × 432) 60 Hz: 20 fps (960 × 432)
Video Compression
Main stream: H.265 Sub-stream: H.265
Video Bit Rate
32 Kbps to 4 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream
Scalable Video Coding (SVC)
H.265 encoding
Audio
Audio Type
Mono sound
Audio Compression
G.711/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IPv4, IPv6, IGMP, UDP, QoS
Simultaneous Live View
Up to 6 channels
API
ISAPI,SDK
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Client
iVMS-4200, HiLookVision *Wi-Fi connection with Hik-Connect directly is not possible
Web Browser
Plug-in required live view: IE 11, Local service: Chrome 91+, Firefox 88+, Edge 91+
Wi-Fi
Encryption Mode
WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi Protocol
IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
Frequency Range
2.4 GHz to 2.4835 GHz
Channel Bandwidth
20/40 MHz,Only 802.11n supports 40 MHz
Modulation
802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16QAM, 64QAM 802.11n: BPSK, QPSK, 16QAM, 64QAM 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Transfer Rate
802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 150 Mbps 802.11ax: up to 114 Mbps
Wireless Range
Up to 120 m (The performance varies based on actual environment)
Antenna
1 Antenna
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone
Yes,1 built-in microphone
Reset Key
Yes
Built-in Speaker
Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Notify surveillance center, audible warning, strobe light flashing
General
Power
12 VDC ± 25%, 0.91 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection
Material
Front cover: Metal, body: Plastic, bracket: Metal
Dimension
103.6 mm × 76 mm × 234.4 mm (4.08" × 2.99" × 9.23")
Package Dimension
344 mm × 144 mm × 93 mm (13.54" × 5.67" × 3.66")
Approx. 650 g (1.43 lb.)
With Package Weight
Approx. 905 g (2.00 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat,anti-banding,password protection,password reset via email
Flashing Light
White Light
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety
CB: IEC 62368-1: 2014+A11
RF
CE-RED：EN 301 489-17 V3.3.1,EN 301 489-1 V2.2.3,EN 300 328 V2.2.2,EN IEC 62311:2020
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
