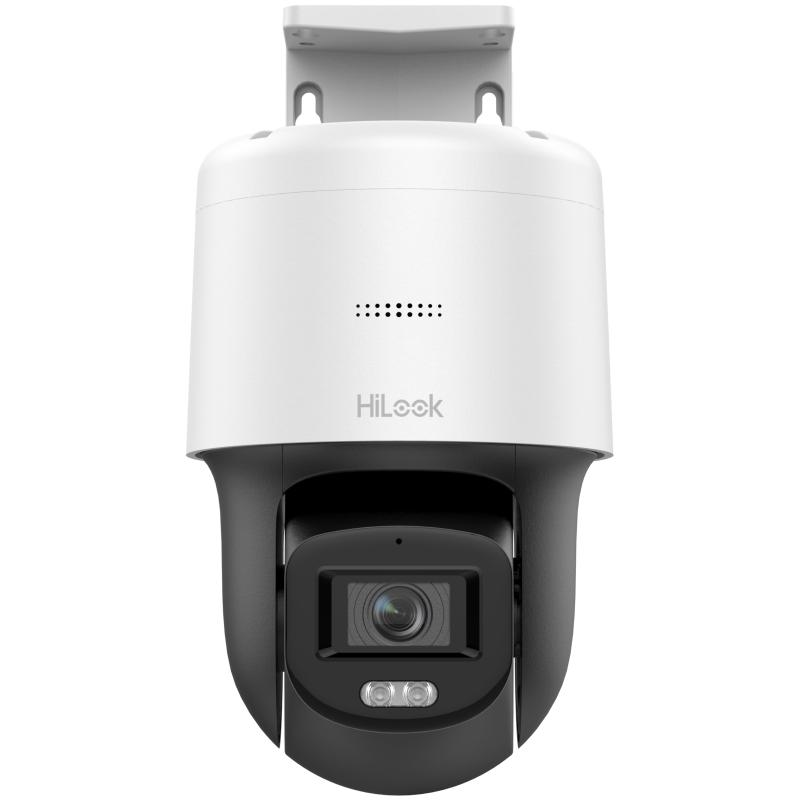

PTZ-N2C200C-DE

2-inch 2 MP Fixed Powered by DarkFighter IR Network Speed Dome

High quality imaging with 2 MP resolution
Clear imaging against strong back light due to DWDR technology
3D DNR technology delivers clean and sharp images
HiLookVision cloud service and APP for remote management and views of devices
Built-in microphone and speakerfor real-time audio security
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Water and dust resistant IP66

View Less

Available models:

PTZ-N2C200C-DE(F0)

PTZ-N2C200C-DE(F1)

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light

Lens
Focal Length2.8 mm/4 mm
FOV2.8 mm, horizontal FOV 106.1°, vertical FOV 55.8°, diagonal FOV 126.5° 4 mm, horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1°
ApertureF1.0

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeWhite Light Distance: up to 30 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)0° to 340°
Movement Range (Tilt)-5° to 105°
Pan SpeedPan speed: configurable from 4° to 21°/s
Tilt SpeedTilt speed: configurable from 4° to 19°/s

Video
Video CompressionH.265, H.264, MJPEG
H.264 TypeBaseline Profile, Main Profile, High Profile
H.265 TypeMain Profile
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Bit Rate32 Kbps to 8 Mbps

Audio
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
APIOpen Network Video Interface, ISAPI, SDK

Image SettingsSaturation, brightness, contrast, sharpness
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in MicrophoneYes
Built-in SpeakerYes
ResetYes

Event
Basic EventMotion detection, video tampering alarm, exception
Alarm LinkageUpload to FTP, notify surveillance center, send email, upload to memory card

General
Operating ConditionWith supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing) With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)
General FunctionMirror, password protection, watermark
Power12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10 W
DimensionsCamera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") Package dimension: 205 mm × 167 mm × 289 mm (8.1" × 6.6" × 11.4")
WeightCamera weight: 780 g (1.7 lb.) With package weight: 1280 g (2.8 lb.)

Approval
EMCFCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; IC: ICES-003: Issue 7
ProtectionIP66 (IEC 60529-2013)

Specification

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light

Lens

Focal Length

2.8 mm/4 mm

FOV

2.8 mm, horizontal FOV 106.1°, vertical FOV 55.8°, diagonal FOV 126.5° 4 mm, horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1°

Aperture

F1.0

Illuminator

Supplement Light Type

White Light

Supplement Light Range

White Light Distance: up to 30 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

0° to 340°

Movement Range (Tilt)

-5° to 105°

Pan Speed

Pan speed: configurable from 4° to 21°/s

Tilt Speed

Tilt speed: configurable from 4° to 19°/s

Video

Video Compression

H.265, H.264, MJPEG

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Video Bit Rate

32 Kbps to 8 Mbps

Audio

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour

API

Open Network Video Interface, ISAPI, SDK


Image Settings

Saturation, brightness, contrast, sharpness

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, HLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Built-in Microphone

Yes

Built-in Speaker

Yes

Reset

Yes

Event

Basic Event

Motion detection, video tampering alarm, exception

Alarm Linkage

Upload to FTP, notify surveillance center, send email, upload to memory card

General

Operating Condition

With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing) With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)

General Function

Mirror, password protection, watermark

Power

12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10 W

Dimensions

Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") Package dimension: 205 mm × 167 mm × 289 mm (8.1" × 6.6" × 11.4")

Weight

Camera weight: 780 g (1.7 lb.) With package weight: 1280 g (2.8 lb.)

Approval

EMC

FCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; IC: ICES-003: Issue 7

Protection

IP66 (IEC 60529-2013)
