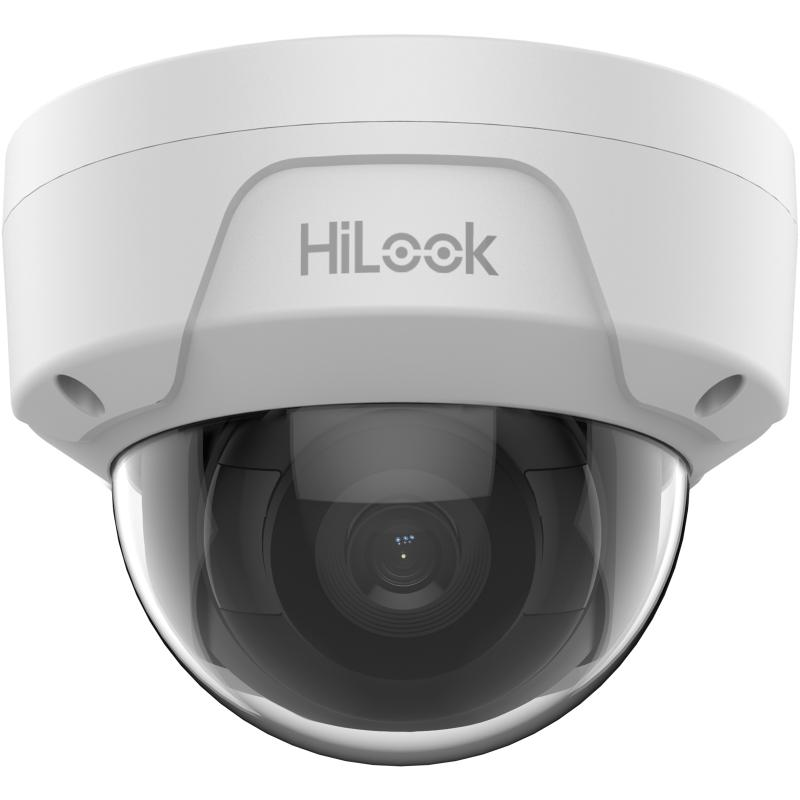

4 MP Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10);
Specification
  • Camera
  • Image Sensor1/3" progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100, 000 s
  • Slow ShutterYes
  • Wide Dynamic Range120 dB
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°
  • DNR3D DNR
  • Day & NightIR cut filter
  • Auto-IrisNo
  • Lens
  • ApertureF2.0
  • FocusNo
  • FOV2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°
  • Lens MountM12
  • Focal Length2.8 mm, 4 mm, 6 mm
  • IR
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Image
  • Image EnhancementBLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, scheduled, day, night
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720) 60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
  • Sub stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Network
  • Alarm TriggerMotion detection, video tampering alarm, illegal login
  • Network StorageNAS (NFS, SMB/CIFS)
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware Version5.5.3
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • ResetYes
  • General
  • Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
  • MaterialWithout –M model: Bubble: plastic, front cover: plastic, bottom base: metal –M model: Bubble: plastic, front cover: metal, bottom base: metal
  • DimensionsCamera: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2") With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • WeightWithout –M model: Camera: approx. 410 g (0.9 lb.) With package: approx. 610 g (1.3 lb.) –M model: Camera: approx. 455 g (1 lb.) With package: approx. 655 g (1.4 lb.)
  • Protection LevelIP67, IK10
  • Operating Condition-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Smart Feature-set
  • Region of Interest1 fixed region for main stream and sub-stream
