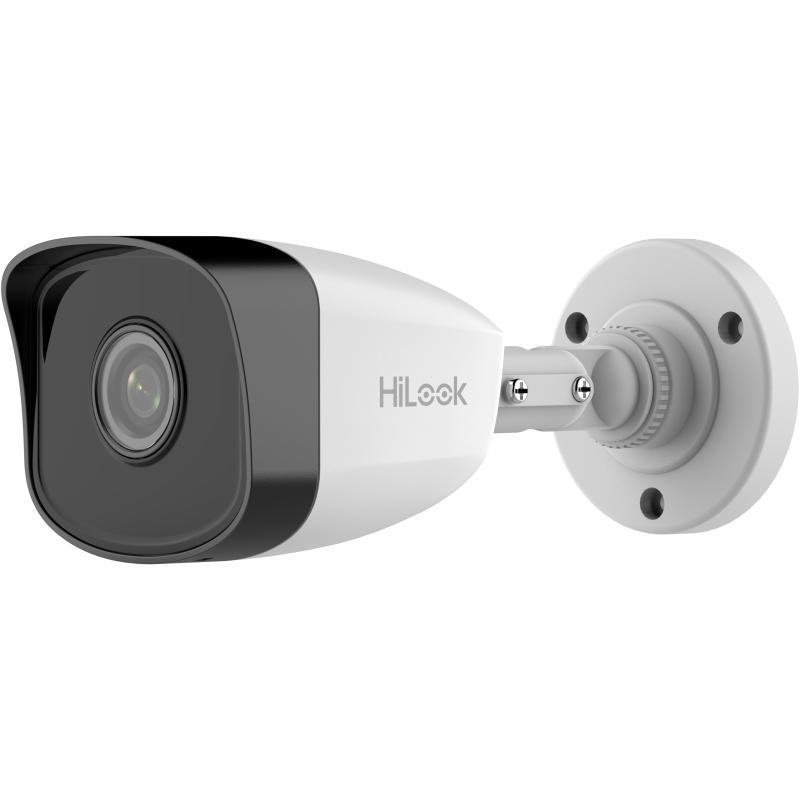

5 MP Fixed Bullet Network Camera

  • High quality imaging with 5 MP resolution
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67)
  • 3D DNR technology delivers clean and sharp images
  • Easy installation with Power over Ethernet (PoE) technology

Specification
  • Camera
  • Image Sensor1/2.7" progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux@(F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100, 000 s
  • Slow ShutterYes
  • Wide Dynamic Range120 dB
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
  • DNR3D DNR
  • Day & NightIR cut filter
  • Lens
  • ApertureF2.0
  • FocusFixed
  • FOV2.8 mm, horizontal FOV: 98°, vertical FOV: 72°, diagonal FOV: 127° 4 mm, horizontal field of view: 77°, vertical FOV: 56°, diagonal FOV: 102°
  • Lens MountM12
  • Focal Length2.8 mm, 4 mm
  • Network
  • Alarm TriggerMotion detection, video tampering alarm, exception (illegal login, network disconnected, IP address conflicted, HDD error)
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
  • APIOpen Network Video Interface (Profile S), ISAPI, SDK
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator, and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200
  • Web BrowserPlug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
  • General FunctionHeartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware VersionV5.5.122
  • Image
  • Image EnhancementHLC,BLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto/Schedule/Day/Night
  • Max. Resolution2560 × 1920
  • Main Stream50Hz: 12.5 fps (2560 × 1920) 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1280, 1280 × 720) 60Hz: 15 fps (2560 × 1920) 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1280, 1280 × 720)
  • Sub stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • IR
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • General
  • Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, Class 3)
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
  • MaterialWithout –M model: Front cover: metal, back cover: plastic, bracket: plastic With –M model: Front cover: metal, back cover: metal, bracket: metal
  • DimensionsCamera: 181.6 mm × 71.4 mm × 66.7 mm (7.1" × 2.8" × 2.6") With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • WeightWithout –M model: Camera: approx. 260 g (0.7 lb.) With package: approx: 474 g (1.1 lb.) With –M model: Camera: approx. 390 g (0.9 lb.) With package: approx: 604 g (1.3 lb.)
  • Protection LevelIP67 (IEC 60529-2013)
  • Operating Condition-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
  • Web Client LanguageEnglish, Ukrainian
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Smart Feature-set
  • Region of Interest1 fixed region for main stream
