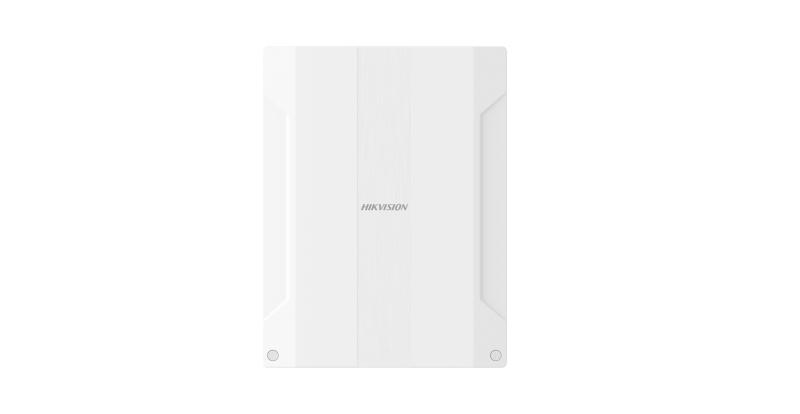

DS-PM1-I16O2-WE


    Multi IO transmitter

    • 868MHz two-way wireless communication
    • LED display, show the real status of device
    • With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
    • With two 12v power outputs, can be used to power up external wired detectors
    • Large space for back up storage battery
    View Less
    View more

    Available models:

    DS-PM1-I16O2-WE

    Specification

    • Software features
    • End of Line Resistance1k 2.2k 4.7k 8.2k NO/NC
    • Hardware features
    • Serial port1
    • Battery port1, 12 VDC input
    • Tamper-ProofFront and rear
    • Power switch1
    • Alarm input16
    • Alarm output2
    • Power Output2 (12v, total1A)
    • Electrical characteristics
    • Battery typeCompatible with 12v 7 Ah 150 × 64 × 94 mm
    • Power supply100-240VAC，30w
    • Operation humidity10%~90%
    • Operation temperature–10 ~ 40°C
    • Power consumptionBattery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V) 220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
    • Battery life spanUp to 36 hours
    • Wireless transmission
    • RF frequency868MHz
    • RF methodTwo-way communication
    • RF modulation2GFSK
    • RF distance1100m
    • Display
    • Indicator3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）
    • General
    • Installation methodWall Mounting
    • Dimension(WxHxD)261*199*86.4mm
    • Shell materialPlastic
    • ColorWhite
    • Weight975 g (without battery) 3024g (with battery)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Software features
    End of Line Resistance
    1k 2.2k 4.7k 8.2k NO/NC
    Hardware features
    Serial port
    1
    Battery port
    1, 12 VDC input
    Tamper-Proof
    Front and rear
    Power switch
    1
    Alarm input
    16
    Alarm output
    2
    Power Output
    2 (12v, total1A)
    Electrical characteristics
    Battery type
    Compatible with 12v 7 Ah 150 × 64 × 94 mm
    Power supply
    100-240VAC，30w
    Operation humidity
    10%~90%
    Operation temperature
    –10 ~ 40°C
    Power consumption
    Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V) 220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
    Battery life span
    Up to 36 hours
    Wireless transmission
    RF frequency
    868MHz
    RF method
    Two-way communication
    RF modulation
    2GFSK
    RF distance
    1100m
    Display
    Indicator
    3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）
    General
    Installation method
    Wall Mounting
    Dimension(WxHxD)
    261*199*86.4mm
    Shell material
    Plastic
    Color
    White
    Weight
    975 g (without battery) 3024g (with battery)
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Software features
    • End of Line Resistance1k 2.2k 4.7k 8.2k NO/NC
    Hardware features
    • Serial port1
    • Battery port1, 12 VDC input
    • Tamper-ProofFront and rear
    • Power switch1
    • Alarm input16
    • Alarm output2
    • Power Output2 (12v, total1A)
    Electrical characteristics
    • Battery typeCompatible with 12v 7 Ah 150 × 64 × 94 mm
    • Power supply100-240VAC，30w
    • Operation humidity10%~90%
    • Operation temperature–10 ~ 40°C
    • Power consumptionBattery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V) 220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
    • Battery life spanUp to 36 hours
    Wireless transmission
    • RF frequency868MHz
    • RF methodTwo-way communication
    • RF modulation2GFSK
    • RF distance1100m
    Display
    • Indicator3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）
    General
    • Installation methodWall Mounting
    • Dimension(WxHxD)261*199*86.4mm
    • Shell materialPlastic
    • ColorWhite
    • Weight975 g (without battery) 3024g (with battery)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
