NEW

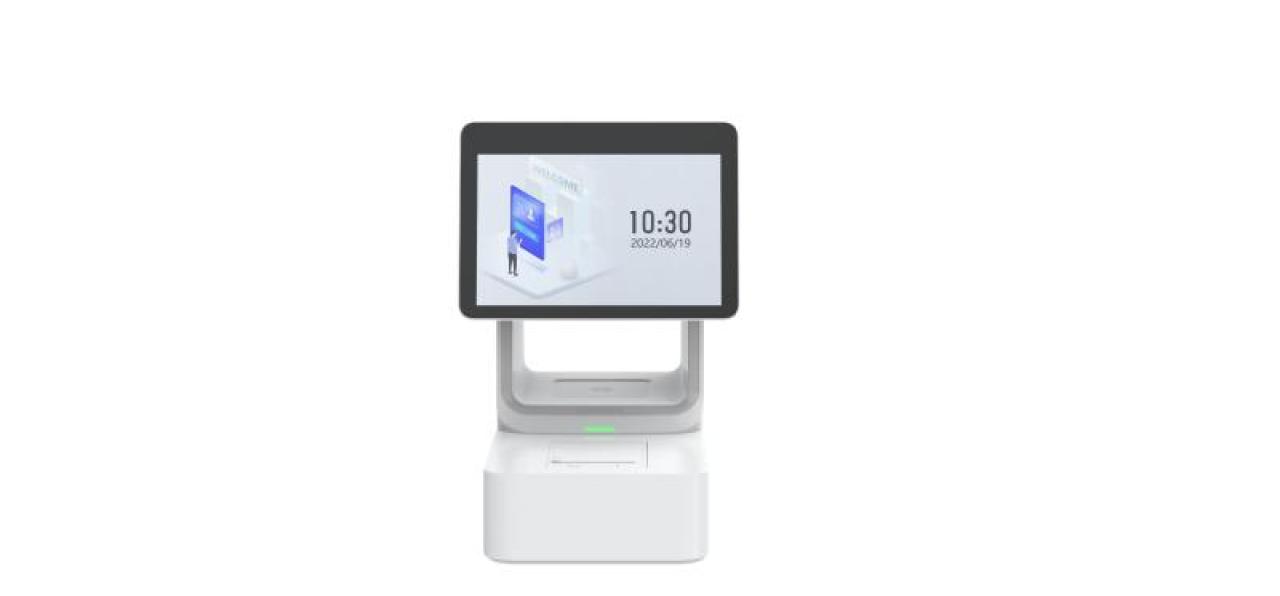

Visitor Terminal

  • Android 11 system
  • Supports paperless visitor enrollment
  • Dual-screen design. 10.1-inch main screen and 10.1-inch auxiliary screen
  • Supports both stand-alone and networked visitor management applications
  • Up to 300,000 visitor records can be stored on the device
  • Supports advertisements playing
  • Supports QR code scanning and swiping card for visitor pass
  • Supports passport OCR
  • Assisted visitor terminal
  • Comes with a 58 mm thermal printer
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K5033MW-D
DS-K5033MW-D NEW
Data Sheet

Specification

  • System
  • Operation systemAndroid 11
  • Display
  • SizeMain Screen (Operator): 10.1-inch 1280 × 800 Touch Screen Auxiliary Screen (Visitor): 10.1-inch 1280 × 800 Screen
  • Resolution1280 × 800
  • Video
  • Pixel2 MP
  • Lens2
  • WDRSupport
  • Video standardPAL (Default)/NTSC
  • Audio
  • Audio outputBuilt-in loudspeaker
  • Network
  • Wired networkSupport
  • Wi-FiSupport, 2.4 G
  • Interface
  • Network interface1
  • Power interfaceRound
  • USB3
  • Capacity
  • Visitor record300,000
  • Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Card reading distance0 to 4 cm
  • Card reading duration＜ 1 s
  • General
  • IndicatorRed/green indicator
  • Power supply12 VDC, 5 A
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90% (no condensing)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Operation system
Android 11
Display
Size
Main Screen (Operator): 10.1-inch 1280 × 800 Touch Screen Auxiliary Screen (Visitor): 10.1-inch 1280 × 800 Screen
Resolution
1280 × 800
Video
Pixel
2 MP
Lens
2
WDR
Support
Video standard
PAL (Default)/NTSC
Audio
Audio output
Built-in loudspeaker
Network
Wired network
Support
Wi-Fi
Support, 2.4 G
Interface
Network interface
1
Power interface
Round
USB
3
Capacity
Visitor record
300,000
Authentication
Card type
M1 card
Card reading frequency
13.56 MHz
Card reading distance
0 to 4 cm
Card reading duration
＜ 1 s
General
Indicator
Red/green indicator
Power supply
12 VDC, 5 A
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 90% (no condensing)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • Operation systemAndroid 11
Display
  • SizeMain Screen (Operator): 10.1-inch 1280 × 800 Touch Screen Auxiliary Screen (Visitor): 10.1-inch 1280 × 800 Screen
  • Resolution1280 × 800
Video
  • Pixel2 MP
  • Lens2
  • WDRSupport
  • Video standardPAL (Default)/NTSC
Audio
  • Audio outputBuilt-in loudspeaker
Network
  • Wired networkSupport
  • Wi-FiSupport, 2.4 G
Interface
  • Network interface1
  • Power interfaceRound
  • USB3
Capacity
  • Visitor record300,000
Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Card reading distance0 to 4 cm
  • Card reading duration＜ 1 s
General
  • IndicatorRed/green indicator
  • Power supply12 VDC, 5 A
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90% (no condensing)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
