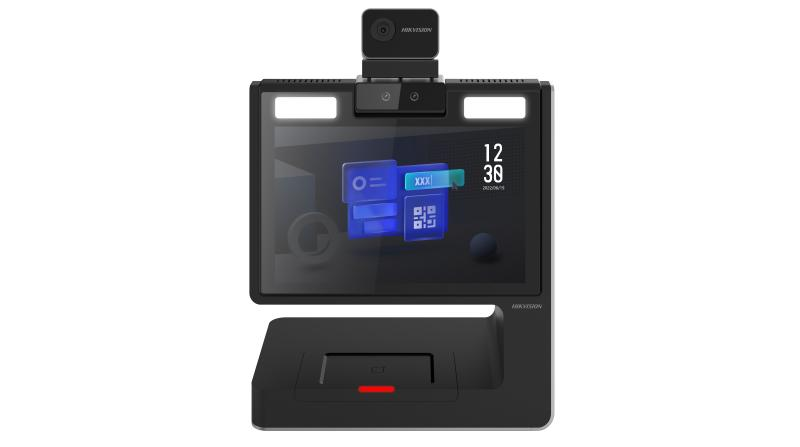

Pro Series Visitor Terminal

  • Android operation system with dual-screen design.
  • Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
  • Recognition distance: 0.3 to 2 m
  • Fast temperature measurement for visitor
  • Paperless visitor enrollment.
  • TCP/IP and Wi-Fi are available for networking application.
  • Up to 130,000 visitor records can be stored on the device.

Specification
  • Temperature measurement
  • Temperature range30 °C to 45 °C (86 °F to 113 °F)
  • SensorVanadium Oxide uncooled sensor
  • Resolution120 × 160
  • Frame rate25 fps
  • Measurement accuracy0.1 °C
  • Measurement deviation± 0.5 °C, without black body calibration
  • Measuring distance0.3 to 2 m
  • Display
  • SizeFor Administrator: 10.1-inch LCD touch screen For visitor: 10.1-inch display screen
  • Video
  • Pixel2 MP
  • Lens2
  • Network
  • Wired network10/100/1000 M self-adaptive
  • Interface
  • Network interface1
  • Power interfaceRound
  • RS-2321
  • Capacity
  • Visitor record130,000
  • Authentication
  • Card typeMifare 1 card
  • Card reading frequency13.56 MHz
  • General
  • Working temperature-10 ℃ to 50 ℃ (14 °F to 122 °F)
  • Working humidity10% to 90%
Specification
Firmware
Applied to:
DS-K5032-3XFD
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
