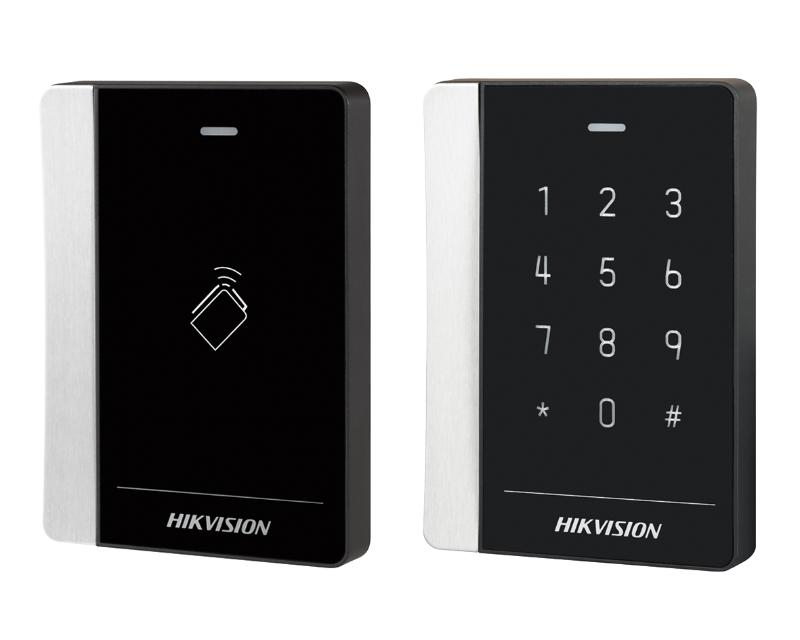

Pro 1102 Series Card Reader

  • Mifare1/ EM card reader
  • PC+ABS material shell with PMMA panel design
  • Built-in audible beeper
  • RS-485 and Wiegand interface
  • IP64

Available models:

DS-K1102M
DS-K1102EM
DS-K1102EMK
DS-K1102E
DS-K1102MK

Available models:

DS-K1102MK

Specification
  • general
  • Power Supply12V DC
  • Working Temperature-20°C to +65°C (-4°F to +149°F)
  • Working Humidity10% to 90% (Non Condensing)
  • Working Current≤500mA
  • Reading Frequency125KHz
  • Reading Range≤50mm (≤1.97")
  • ID Settingsvia DIP Switch
  • Audio AlertBeeper
  • Power Consumption≤2W
  • KeypadNo Keypad (DS-K1102E/M)Keypad with 12 Keys (0 to 9, *, #) (DS-K1102EK/MK)
  • CertificationsFCC, CE
  • LED IndicatorPower Indicator; Status LED Indicator
  • Protection LevelIP 64
  • Dimensions121mm × 86.5mm × 14mm (4.76” × 3.41” × 0.55")
  • ≤0.14Kg
  • Installing MethodApplied for 86 & 120 Gang Box
  • system parameters
  • Processor32-bit
Specification
Firmware
Applied to:
DS-K1102M
DS-K1102EM
DS-K1102EMK
DS-K1102E
DS-K1102MK
Applied to:
DS-K1102MK
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
