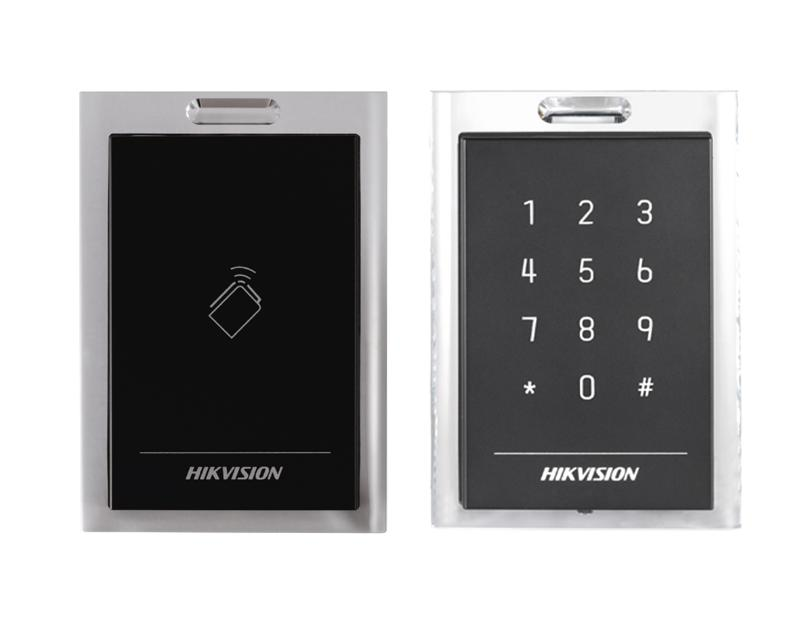

Pro 1101 Series Card Reader

  • M1/ EM card reader
  • PC+ABS material shell with PMMA panel design
  • Built-in audible beeper
  • RS-485 and Wiegand interface
  • IP64
View Less
View more

Available models:

DS-K1101M
DS-K1101MK

Specification

  • Authentication
  • Card reading frequency13.56MHz
  • General
  • Power supply12V DC, ≤ 500 mA
  • Power consumption≤ 2 W
  • Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity10% to 90% (no condensing)
  • Dimensions132.0 mm × 92.3 mm × 20.5 mm (5.20” × 3.63” × 0.81")
  • Installation壁装吗?Applied for 120 Gang Box Only
  • Weight≤ 0.14 kg (0.3 lb)
  • KeypadDS-K1101M: No keypad DS-K1101MK: 12 keys (0 to 9, *, #)
  • Buzzersupport
  • Function
  • ID settingsvia DIP Switch

Specification

Specification
Authentication
  • Card reading frequency13.56MHz
General
  • Power supply12V DC, ≤ 500 mA
  • Power consumption≤ 2 W
  • Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity10% to 90% (no condensing)
  • Dimensions132.0 mm × 92.3 mm × 20.5 mm (5.20” × 3.63” × 0.81")
  • Installation壁装吗?Applied for 120 Gang Box Only
  • Weight≤ 0.14 kg (0.3 lb)
  • KeypadDS-K1101M: No keypad DS-K1101MK: 12 keys (0 to 9, *, #)
  • Buzzersupport
Function
  • ID settingsvia DIP Switch
For better user experience, we highly recommend you to update your device to the latest firmware asap.
