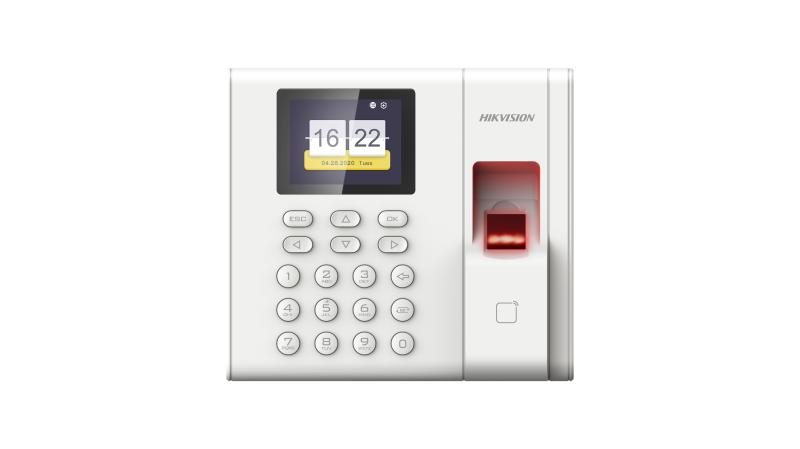

K1A8503 Value Series Fingerprint Time Attendance Terminal

  • 2.4-inch LCD screen to display time, date, week, and attendance information
  • TCP/IP communication
  • 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
  • Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
  • Stand-alone operation (supports adding persons, and fingerprints locally)
  • Downloads attendance reports by USB flash drive
  • Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  • Generates reports automatically
  • Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
  • Supports ISAPI protocol and ISUP 5.0 protocol

Specification
  • Display
  • Screen size2.4-inch
  • TypeLCD-TFT display screen
  • Network
  • Wired networkTCP/IP, 10/100Mbps, self-adaptive
  • Interface
  • Network interface1
  • USB1
  • Authentication
  • Fingerprint moduleOptical fingerprint module
  • Fingerprint comparing mode1:1 and 1:N
  • General
  • BatterySupport
  • Power supply5 VDC/1 A
  • Working temperature-10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity10% to 90% (no condensing)
  • Dimensions140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
  • InstallationWall mounting
  • ColorWhite
Specification
Download Center
Firmware
Applied to:
DS-K1A8503F-B
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
