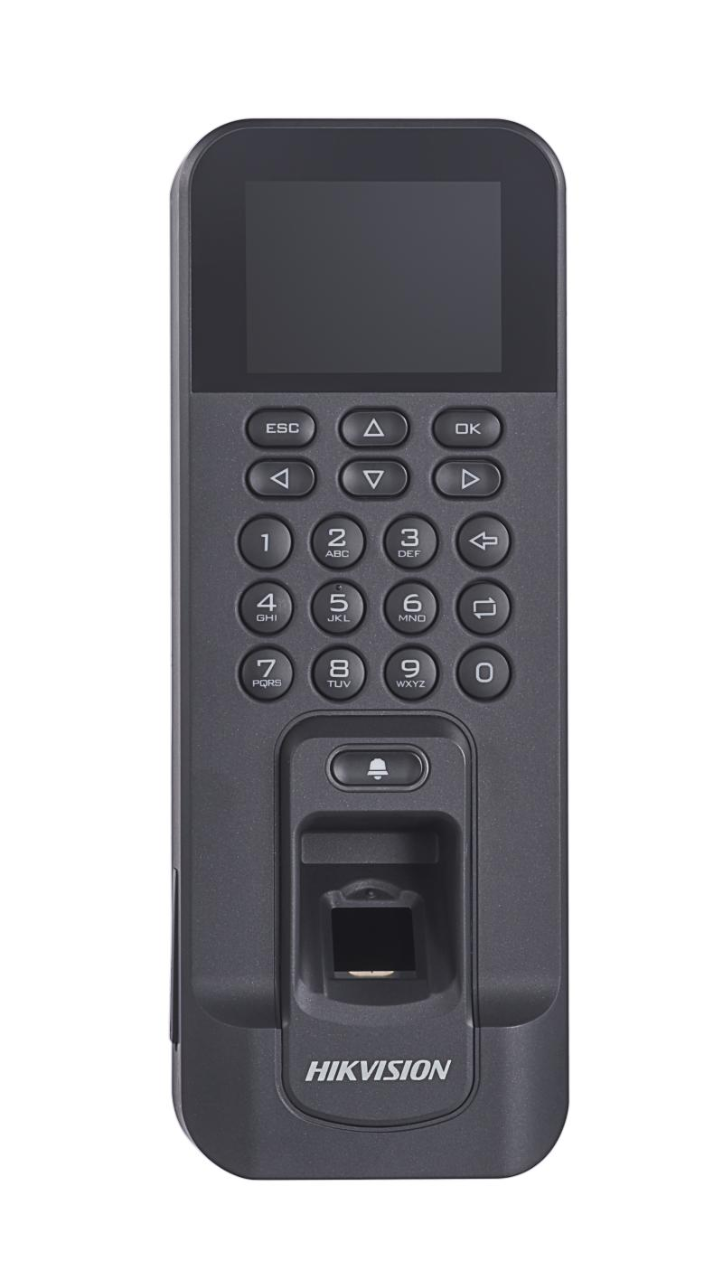

K1T804A Pro Series Fingerprint Terminal

  • Integrated management of access control and the attendance
  • 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
  • Transmission modes of wired network (TCP/IP) and wireless network
  • Max. 3000 users, Max. 3000 fingerprints, Max. 100,000 event records
  • Different authentication types can be configured according to different situations, authentication via PIN code is also supported
  • Stand-alone operation: locally adds person, card and fingerprints information
  • Exports the presenting card data and the attendance report to the USB flash drive
  • Up to 32 normal shifts, up to 32 man-hour shifts, and up to 32 attendance holiday schedules can be configured
  • Generates the attendance report automatically
  • Mifare card reading, including card No. reading
  • Secure door control unit accessing via RS-485 connection
  • Supports fingerprint card reader (DS-K1201 series) accessing
  • Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, duress card alarm, and so on
  • Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
  • Accurate data and time display provided by built-in electronic clock
  • Check the device running status via the Watchdog. When exception status occurs, the system will reboot automatically
  • Data can be permanently saved after power-off
  • Supports transmitting data via Wi-Fi
  • Operates via Hik-Connect mobile client
  • Supports ISAPI protocol and ISUP 5.0 protocol
Specification
  • Display
  • Size2.4-inch
  • TypeLCD-TFT display screen
  • Network
  • Wired networkTCP/IP, 10/100Mbps, self-adaptive
  • Interface
  • Network interface1
  • Lock output1
  • Exit button1
  • Door contact input1
  • Authentication
  • Card typeMifare 1 card
  • Fingerprint moduleOptical fingerprint module
  • Fingerprint comparing mode1:1 and 1:N
  • General
  • Working temperature-10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity10% to 90% (no condensing)
  • ColorBlack (included), gold (optional), silver (optional), white (optional)
  • Dimensions205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
  • InstallationSurface mounting
