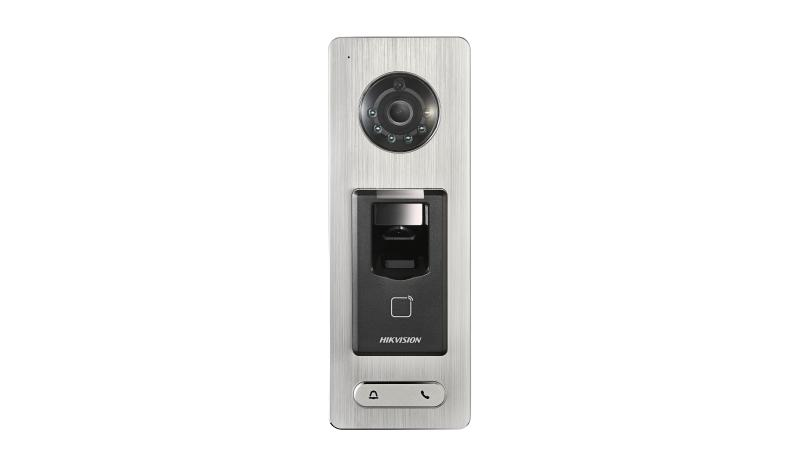

Pro Series Video and Fingerprint Terminal

  • Video access control terminal
  • 2 Mega pixels camera
  • 50,000 card, 3,000 fingerprints and 200,000 event storage
  • Built-in card reader for Mifare1 card
  • Wiegand interface and RS-485 interface for accessing controller
  • EHome for public network communication
  • Face detection and picture capture function
  • Video intercom function
  • IP65

Specification
  • General
  • Working Temperature-40°C to 70°C (-40°F to 158°F)
  • Working Humidity10% to 90% (No Condensing)
  • Working CurrentMax. 600 mA
  • Power Supply12 VDC/1 A
  • AudioAudio Input: Build-in Micro Phone (Sensitivity: -25±3DB)Audio Output: Build-in Loudspeaker (1W)
  • Processor32 Bit High-performance Processor
  • Communication ModeTerminal Mode: TCP/IP and RS-485Card Reader Mode: Wiegand (26/34) and RS-485
  • Camera2MP/1080P, IR Light
  • Card Capability50000
  • FAR (False Acceptance Rate)≤ 0.001 %
  • FRR (False Recognition Rate)≤ 0.01 %
  • Fingerprint ModuleOptical Fingerprint Recognition Module
  • Card Reading ModeMifare Card
  • Input InterfaceDoorbell Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2, Tamper Alarm × 1, Exit Button × 1
  • Output InterfaceLock Relay × 1, Alarm Output (Doorbell) × 1
  • Record Capability200000
  • Fingerprint Capability5000
  • 1:N Fingerprint Recognition Speed≤ 1.5s
  • Induction Distance≥ 2cm
  • Video StorageRecord and Save Video through NVR or Micro SD Card
  • Micro SD CardMax. 128G
  • MountingWall Mounting
  • Protection LevelIP65
  • Dimension218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")
