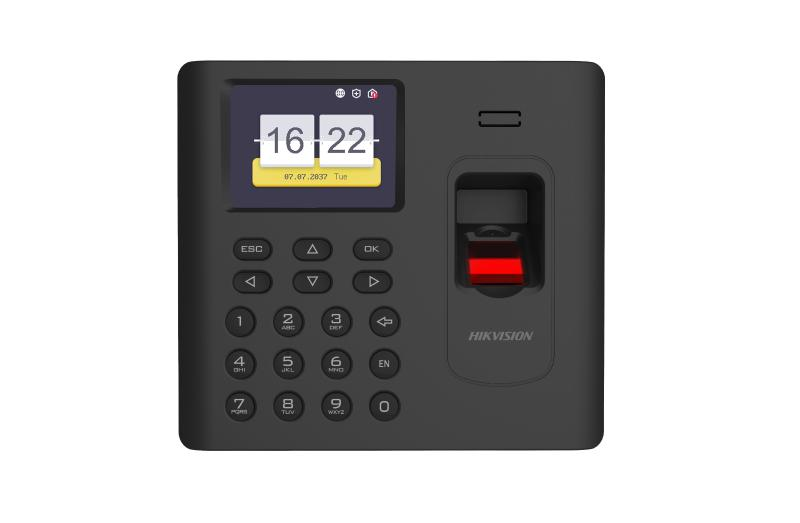

K1A802 Pro Series Fingerprint Time Attendance Terminal

  • 2.4-inch LCD screen to display time, date, week, and attendance information
  • Transmission modes of wired network (TCP/IP) and wireless network
  • 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
  • Max. 3000 users, Max. 3000 fingerprints, Max. 100,000 event records
  • Stand-alone operation (supports adding persons, and fingerprints locally)
  • Downloads attendance reports by USB flash drive
  • Up to 32 normal shifts, up to 32 man-hour shifts, and up to 32 attendance holiday schedules can be configured
  • Generates reports automatically
  • Export the report and upgrade the device via the USB flash drive
  • Prompt for full report memory
  • Supports multiple authentication modes, supports authentication via PIN code
  • Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
  • When the main power is off, the system will change the power supply method to lithium battery supply automatically
  • Checks the device running status via the Watchdog. When exceptional status occurs, the device will reboot automatically
  • Supports transmitting data via Wi-Fi
  • Supports ISAPI protocol and ISUP 5.0 protocol
  • Screen
  • Size2.4-inch
  • TypeLCD-TFT display screen
  • Network
  • Wired networkTCP/IP, 10/100Mbps, self-adaptive
  • Interface
  • Network interface1
  • Authentication
  • Fingerprint moduleOptical fingerprint module
  • Fingerprint comparing mode1:1 and 1:N
  • Others
  • BatterySupport
  • Working temperature-10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity10% to 90% (no condensing)
  • ColorBlack
  • Dimensions140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
  • Application environmentIndoor
  • InstallationSurface mounting, desk stand
