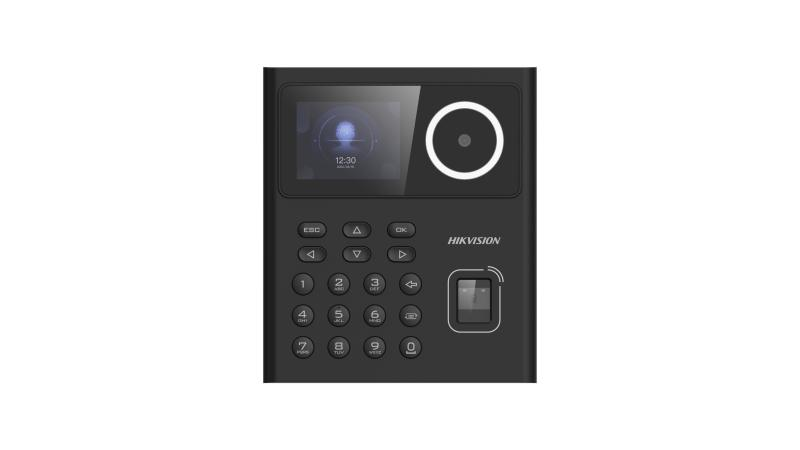

Value Series Face Access Terminal

  • 2.4-inch LCD screen, 2 MP lens
  • Multiple authentication methods, including face, fingerprint, card, and PIN, etc.
  • Supports Mifare card
  • Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
  • Face recognition duration < 0.2 s/User
  • Supports ISAPI and ISUP 5.0 protocols
  • Configuration via the web client
View Less
View more

Available models:

DS-K1T320MFWX

Specification

  • System
  • Operating systemLinux
  • Display
  • Screen size2.4 inch
  • TypeDisplay screen
  • Resolution320 × 240
  • Video
  • Lens1
  • Video compression standardPAL (Default) and NTSC
  • Resolution2 MP (video stream: 720P)
  • FOVHFOV = 43°; VFOV = 25°
  • Audio
  • Audio outputBuilt-in buzzer
  • Network
  • Wired network10 M/100 M self-adaptive
  • Wi-FiSupport
  • Interface
  • Network interface1
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • USB1
  • Capacity
  • Face capacity500
  • Fingerprint capacity1,000
  • Card capacity1,000
  • Event capacity100,000
  • Authentication
  • Face recognition distance0.3 m ~ 1.5 m
  • Face recognition duration< 0.2 s
  • Card typeM1 card
  • Card reading distance0 ~ 5 cm
  • General
  • Built-in access controllerYes
  • Supplement lightWhite light
  • Power supplyDC 12 V
  • Power consumption≤ 6 W
  • Working temperature-10 ℃ ~ 55 ℃ (14 °F ~ 131 °F)
  • Working humidity0% ~ 90%
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
