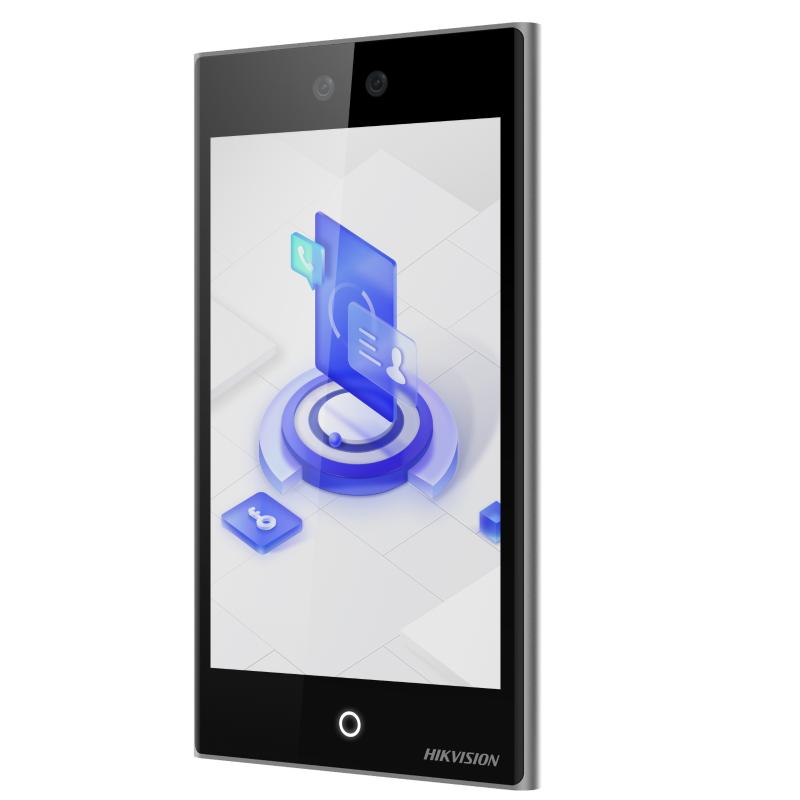

DS-K1T681DBX


    Face Recognition Terminals

    • Android 11 operation system
    • 8-inch LCD touch screen, 2 MP wide-angle lens
    • Face recognition duration ＜ 0.2 s/User, face recognition accuracy rate ≥ 99%
    • Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
    • Face mask detection
    • 100,000 face capacity, 10,000 fingerprint capacity (with fingerprint module), 500,000 card capacity, and 500,000 event capacity
    • Supports ISAPI, ISUP 5.0, TCP/IP
    • Supports face recognition of single person and multiple people (up to 5 people)
    • Recognition distance: 0.3 to 3 m
    View Less
    View more

    Available models:

    DS-K1T681DBX

    Specification

    • Display
    • Screen size8 inch
    • Operation methodCapacitive touch screen
    • TypeIPS
    • Video
    • Lens2
    • Resolution2 MP
    • FOVHFOV = 41.5°; VFOV = 75.5°
    • Audio
    • Audio qualitySupport noise suppression and echo cancellation
    • Network
    • Wired networkSupport
    • Interface
    • Network interface1 RJ-45, 10/100/1000 M self-adaptive
    • Lock control1
    • Exit button1
    • Door contact input1
    • Alarm input2
    • Alarm output1
    • TAMPER1
    • RS-4851,RS-485 (Half duplex,HIKVISION）
    • RS-232Reserved
    • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
    • USB2, one (type C) for inserting module or data transmission, the other (type A) for data transmission
    • Audio output interface1 (3.5 mm)
    • Capacity
    • Captured picture capacity100,000
    • Authentication
    • Card typeM1 card;DESfire card;Felica card
    • Card presenting modeUnder screen
    • General
    • Power supply12 VDC, 3 A/24 VDC, 1.5 A
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity0 to 90% (no condensing)
    • Anti-corrosion48H (About 2 years protection)
    • Dimensions232.5 mm × 29.1 mm × 26.5 mm (9.2" × 1.1" × 1.0")
    • WeightGross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb)
    • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, and Traditional Chinese
    • Function
    • Configuration via Web browserSupport
    • Hik-ConnectSupport operation via mobile application
    • Video intercomSupport
    • QR code recognitionSupport (with QR code module)
    • Face anti-spoofingSupport
    • Face mask recognitionSupport
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Display
    Screen size
    8 inch
    Operation method
    Capacitive touch screen
    Type
    IPS
    Video
    Lens
    2
    Resolution
    2 MP
    FOV
    HFOV = 41.5°; VFOV = 75.5°
    Audio
    Audio quality
    Support noise suppression and echo cancellation
    Network
    Wired network
    Support
    Interface
    Network interface
    1 RJ-45, 10/100/1000 M self-adaptive
    Lock control
    1
    Exit button
    1
    Door contact input
    1
    Alarm input
    2
    Alarm output
    1
    TAMPER
    1
    RS-485
    1,RS-485 (Half duplex,HIKVISION）
    RS-232
    Reserved
    Wiegand
    1 Wiegand(Hik 26bit,Hik 34bit)
    USB
    2, one (type C) for inserting module or data transmission, the other (type A) for data transmission
    Audio output interface
    1 (3.5 mm)
    Capacity
    Captured picture capacity
    100,000
    Authentication
    Card type
    M1 card;DESfire card;Felica card
    Card presenting mode
    Under screen
    General
    Power supply
    12 VDC, 3 A/24 VDC, 1.5 A
    Working temperature
    -30 °C to 60 °C (-22 °F to 140 °F)
    Working humidity
    0 to 90% (no condensing)
    Anti-corrosion
    48H (About 2 years protection)
    Dimensions
    232.5 mm × 29.1 mm × 26.5 mm (9.2" × 1.1" × 1.0")
    Weight
    Gross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb)
    Language
    English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, and Traditional Chinese
    Function
    Configuration via Web browser
    Support
    Hik-Connect
    Support operation via mobile application
    Video intercom
    Support
    QR code recognition
    Support (with QR code module)
    Face anti-spoofing
    Support
    Face mask recognition
    Support
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Display
    • Screen size8 inch
    • Operation methodCapacitive touch screen
    • TypeIPS
    Video
    • Lens2
    • Resolution2 MP
    • FOVHFOV = 41.5°; VFOV = 75.5°
    Audio
    • Audio qualitySupport noise suppression and echo cancellation
    Network
    • Wired networkSupport
    Interface
    • Network interface1 RJ-45, 10/100/1000 M self-adaptive
    • Lock control1
    • Exit button1
    • Door contact input1
    • Alarm input2
    • Alarm output1
    • TAMPER1
    • RS-4851,RS-485 (Half duplex,HIKVISION）
    • RS-232Reserved
    • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
    • USB2, one (type C) for inserting module or data transmission, the other (type A) for data transmission
    • Audio output interface1 (3.5 mm)
    Capacity
    • Captured picture capacity100,000
    Authentication
    • Card typeM1 card;DESfire card;Felica card
    • Card presenting modeUnder screen
    General
    • Power supply12 VDC, 3 A/24 VDC, 1.5 A
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity0 to 90% (no condensing)
    • Anti-corrosion48H (About 2 years protection)
    • Dimensions232.5 mm × 29.1 mm × 26.5 mm (9.2" × 1.1" × 1.0")
    • WeightGross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb)
    • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, and Traditional Chinese
    Function
    • Configuration via Web browserSupport
    • Hik-ConnectSupport operation via mobile application
    • Video intercomSupport
    • QR code recognitionSupport (with QR code module)
    • Face anti-spoofingSupport
    • Face mask recognitionSupport
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
