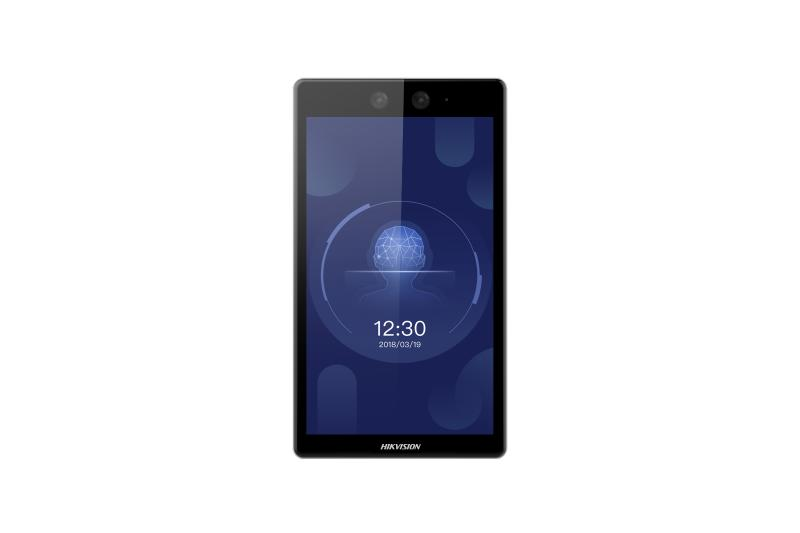

Ultra Series Wall-Mounted Face Access Terminal

  • Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
  • Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
  • 7-inch touch screen with bezel-less design
  • Presents card on the screen to authenticate card permission
  • Face recognition. Distance: 0.3 m to 3 m, Duration < 0.2 s/User, Accuracy rate ≥ 99%50,000 face capacity, 50,000 card capacity(M1 card), and 50,000 event capacity
  • Supports wiegand protocol and RS-485 protocol
  • Two-way audio with indoor station and main station
  • Configuration via the web client
  • Supports ISAPI and ISUP5.0 protocol
View Less
View more

Available models:

DS-K1T672MW

Specification

  • Display
  • Screen size7 inch
  • Operation methodCapacitive touch screen
  • TypeLCD
  • Video
  • LensVisible light lens × 1,850nm Infrared lens × 1
  • Resolution2 MP
  • FOVHFOV = 75.5°; VFOV = 41.5°; DFOV = 87°
  • Audio
  • Audio qualityNoise Suppression and Echo Cancellation
  • Network
  • Wired networkSupport
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
  • Interface
  • Network interface1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm input2
  • Alarm output1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
  • Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • General
  • Power supply12 VDC, 2 A
  • Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions185.8 × 103.36 × 20.7mm (7.31'' × 4.07'' × 0.81'' )
  • InstallationSurface mounting
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
  • PlatformHik-ProConnect and HikCentral Professional
  • Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport

Specification

Specification
Display
  • Screen size7 inch
  • Operation methodCapacitive touch screen
  • TypeLCD
Video
  • LensVisible light lens × 1,850nm Infrared lens × 1
  • Resolution2 MP
  • FOVHFOV = 75.5°; VFOV = 41.5°; DFOV = 87°
Audio
  • Audio qualityNoise Suppression and Echo Cancellation
Network
  • Wired networkSupport
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
Interface
  • Network interface1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm input2
  • Alarm output1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
General
  • Power supply12 VDC, 2 A
  • Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions185.8 × 103.36 × 20.7mm (7.31'' × 4.07'' × 0.81'' )
  • InstallationSurface mounting
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
  • PlatformHik-ProConnect and HikCentral Professional
Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport

Firmware

Applied to:
DS-K1T672MW
For better user experience, we highly recommend you to update your device to the latest firmware asap.
