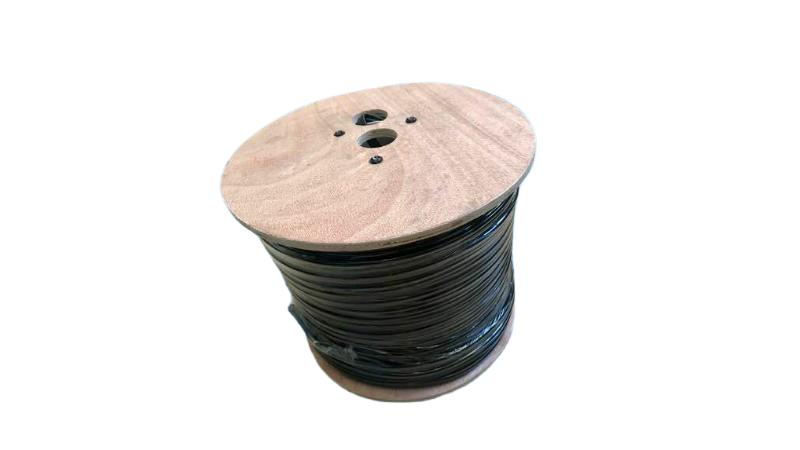

RG59 Coaxial Cable

  • 200 m reliable coaxial cable
  • Excellent transmission performance using solid copper
  • Full diameter and full length
  • High shielding performance via high braiding density
  • Great flame resistance.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-1LC1SCA-200B
DS-1LC1SCA-200B
Data Sheet

Spezifikation

  • Allgemein
  • Length 200m
  • Betriebstemperatur-40-80ºC
  • Lagertemperatur-20-70ºC
  • Impedanz75ohms
  • Impedance 75ohms
  • Conductor
  • MaterialOFC(Oxygen Free Copper)
  • Diameter0.81±0.01mm
  • Drahtstärke20AWG
  • Insulation
  • MaterialFPE
  • Diameter3.66±0.05mm
  • Diameter 3.66±0.05mm
  • Tape
  • MaterialShielding Aluminum Foil, 15mmwidth
  • Dicke0.04mm
  • Braid
  • MaterialCCA(Copper-clad Aluminum)
  • Braiding Standard8*16*0.12mm
  • Braiding Density95±1%
  • Jacket
  • MaterialPVC
  • Average Thickness≥0.65mm
  • Diameter6.10±0.2mm
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Spezifikation

Allgemein
Length
200m
Betriebstemperatur
-40-80ºC
Lagertemperatur
-20-70ºC
Impedanz
75ohms
Impedance
75ohms
Conductor
Material
OFC(Oxygen Free Copper)
Diameter
0.81±0.01mm
Drahtstärke
20AWG
Insulation
Material
FPE
Diameter
3.66±0.05mm
Diameter
3.66±0.05mm
Tape
Material
Shielding Aluminum Foil, 15mmwidth
Dicke
0.04mm
Braid
Material
CCA(Copper-clad Aluminum)
Braiding Standard
8*16*0.12mm
Braiding Density
95±1%
Jacket
Material
PVC
Average Thickness
≥0.65mm
Diameter
6.10±0.2mm
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Spezifikation
Allgemein
  • Length 200m
  • Betriebstemperatur-40-80ºC
  • Lagertemperatur-20-70ºC
  • Impedanz75ohms
  • Impedance 75ohms
Conductor
  • MaterialOFC(Oxygen Free Copper)
  • Diameter0.81±0.01mm
  • Drahtstärke20AWG
Insulation
  • MaterialFPE
  • Diameter3.66±0.05mm
  • Diameter 3.66±0.05mm
Tape
  • MaterialShielding Aluminum Foil, 15mmwidth
  • Dicke0.04mm
Braid
  • MaterialCCA(Copper-clad Aluminum)
  • Braiding Standard8*16*0.12mm
  • Braiding Density95±1%
Jacket
  • MaterialPVC
  • Average Thickness≥0.65mm
  • Diameter6.10±0.2mm
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
