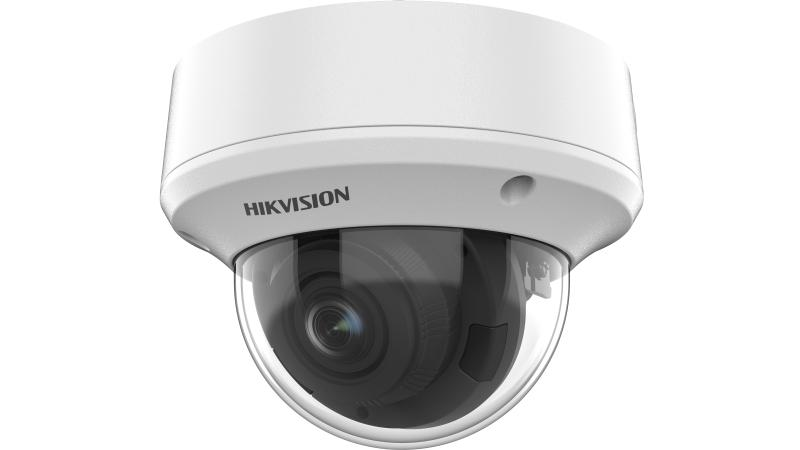

5 MP Vandal PoC Motorized Varifocal Dome Camera

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 2.7 mm to 13.5 mm motorized varifocal lens
  • Up to 40 m IR distance for bright night imaging
  • Water and dust resistant (IP67) and vandal resistant (IK10)
View Less
View more

Available models:

DS-2CE5AH0T-VPIT3ZE/2.7-13.5mm(C)

Spezifikation

  • Kamera
  • Bildsensor5 MP CMOS
  • Signal-SystemPAL/NTSC
  • Max. Auflösung2560 (H) × 1944 (V)
  • Bildfrequenz5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
  • Min. Beleuchtung0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • VerschlusszeitPAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • ObjektivfassungΦ14
  • Tag & NachtIR Cut Filter
  • AusrichtungseinstellungPan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
  • Objektiv
  • Objektivtyp2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOVhorizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
  • Strahler
  • Reichweite ZusatzbeleuchtungIR: Up to 40 m
  • Bild
  • Tag & Nacht-ModusAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Bildparameter wechselnSTD/HIGH-SAT
  • WeißabgleichAuto/Manual
  • BildverbesserungDWDR,BLC,HLC,Global
  • Rauschunterdrückung2D DNR
  • SpracheEnglish
  • Image SettingsBrightness, Smart IR, Sharpness, AGC
  • Schnittstelle
  • Video-Ausgang1 HD analog output
  • Allgemein
  • Power12 VDC±15%/PoC.at, Max 7.4 W *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • MaterialMetal
  • KommunikationHIKVISION-C
  • AbmessungØ145 mm × 111.3 mm (5.69" × 4.37")
  • Approx. 863 g (1.90 lb.)
  • Genehmigung
  • SchutzIP67

Spezifikation

Spezifikation
Kamera
  • Bildsensor5 MP CMOS
  • Signal-SystemPAL/NTSC
  • Max. Auflösung2560 (H) × 1944 (V)
  • Bildfrequenz5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
  • Min. Beleuchtung0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • VerschlusszeitPAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • ObjektivfassungΦ14
  • Tag & NachtIR Cut Filter
  • AusrichtungseinstellungPan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
Objektiv
  • Objektivtyp2.7 mm to 13.5 mm motorized varifocal lens
  • Focal Length & FOVhorizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
Strahler
  • Reichweite ZusatzbeleuchtungIR: Up to 40 m
  • Tag & Nacht-ModusAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Bildparameter wechselnSTD/HIGH-SAT
  • WeißabgleichAuto/Manual
  • BildverbesserungDWDR,BLC,HLC,Global
  • Rauschunterdrückung2D DNR
  • SpracheEnglish
  • Image SettingsBrightness, Smart IR, Sharpness, AGC
Schnittstelle
  • Video-Ausgang1 HD analog output
Allgemein
  • Power12 VDC±15%/PoC.at, Max 7.4 W *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • MaterialMetal
  • KommunikationHIKVISION-C
  • AbmessungØ145 mm × 111.3 mm (5.69" × 4.37")
  • Approx. 863 g (1.90 lb.)
Genehmigung
  • SchutzIP67
