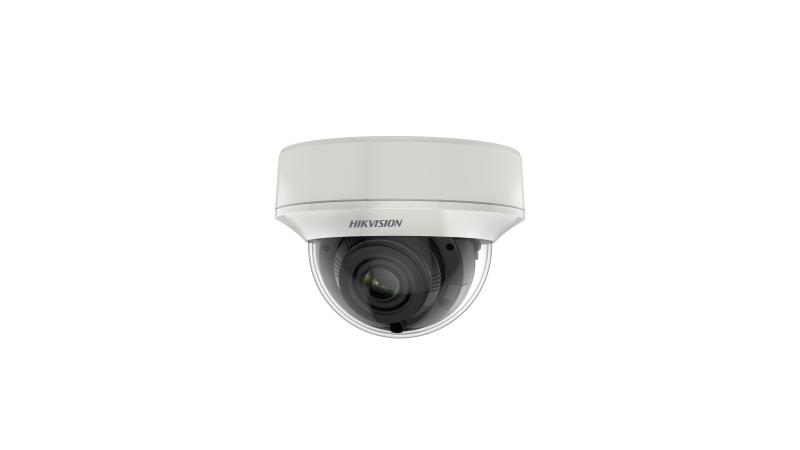

4K Indoor Motorized Varifocal Dome Camera

  • 8 MP dome camera
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CE56U1T-AITZF(2.7-13.5mm)
DS-2CE56U1T-AITZF
Data Sheet

Spezifikation

  • Kamera
  • Bildsensor8.29 megapixel progressive scan CMOS
  • Max. Auflösung3840 (H) × 2160 (V)
  • Min. BeleuchtungColor: 0.01 Lux @ (F2.4, AGC ON), B/W: 0 Lux with IR
  • VerschlusszeitPAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Tag & NachtIR Cut Filter
  • AusrichtungseinstellungPan: 0 to 340°, Tilt: 0 to 75°, Rotation: 0 to 355°
  • Signal-SystemPAL/NTSC
  • Objektiv
  • Objektivtyp2.7 mm to 13.5 mm motorized vari-focal lens
  • Focal Length & FOVHorizontal FOV 108.1° to 45.6°
  • ObjektivfassungΦ14
  • Strahler
  • Reichweite ZusatzbeleuchtungIR Distance: Up to 60 m
  • Intelligente ZusatzbeleuchtungYes
  • Bild
  • Image SettingsBrightness;Sharpness;Mirror;AGC
  • BildfrequenzTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N
  • Tag & Nacht-ModusAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • BildverbesserungBLC;HLC
  • Rauschunterdrückung2D DNR
  • WeißabgleichAuto/Manual
  • Schnittstelle
  • Video-AusgangSwitchable TVI/AHD/CVI/CVBS;1 HD analog output
  • Allgemein
  • Power9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC *You are recommended to use one power adapter to supply the power for one camera. Max. 8.2 W
  • MaterialPlastic
  • AbmessungØ 136 mm × 101.94 mm (Ø 5.35" × 4.01")
  • Approx. 450 g (0.99 lb.)
  • Operating Condition-40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing)
  • KommunikationHIKVISION-C
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Spezifikation

Kamera
Bildsensor
8.29 megapixel progressive scan CMOS
Max. Auflösung
3840 (H) × 2160 (V)
Min. Beleuchtung
Color: 0.01 Lux @ (F2.4, AGC ON), B/W: 0 Lux with IR
Verschlusszeit
PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Tag & Nacht
IR Cut Filter
Ausrichtungseinstellung
Pan: 0 to 340°, Tilt: 0 to 75°, Rotation: 0 to 355°
Signal-System
PAL/NTSC
Objektiv
Objektivtyp
2.7 mm to 13.5 mm motorized vari-focal lens
Focal Length & FOV
Horizontal FOV 108.1° to 45.6°
Objektivfassung
Φ14
Strahler
Reichweite Zusatzbeleuchtung
IR Distance: Up to 60 m
Intelligente Zusatzbeleuchtung
Yes
Image Settings
Brightness;Sharpness;Mirror;AGC
Bildfrequenz
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N
Tag & Nacht-Modus
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Bildverbesserung
BLC;HLC
Rauschunterdrückung
2D DNR
Weißabgleich
Auto/Manual
Schnittstelle
Video-Ausgang
Switchable TVI/AHD/CVI/CVBS;1 HD analog output
Allgemein
Power
9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC *You are recommended to use one power adapter to supply the power for one camera. Max. 8.2 W
Material
Plastic
Abmessung
Ø 136 mm × 101.94 mm (Ø 5.35" × 4.01")
Approx. 450 g (0.99 lb.)
Operating Condition
-40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing)
Kommunikation
HIKVISION-C
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Spezifikation
Kamera
  • Bildsensor8.29 megapixel progressive scan CMOS
  • Max. Auflösung3840 (H) × 2160 (V)
  • Min. BeleuchtungColor: 0.01 Lux @ (F2.4, AGC ON), B/W: 0 Lux with IR
  • VerschlusszeitPAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Tag & NachtIR Cut Filter
  • AusrichtungseinstellungPan: 0 to 340°, Tilt: 0 to 75°, Rotation: 0 to 355°
  • Signal-SystemPAL/NTSC
Objektiv
  • Objektivtyp2.7 mm to 13.5 mm motorized vari-focal lens
  • Focal Length & FOVHorizontal FOV 108.1° to 45.6°
  • ObjektivfassungΦ14
Strahler
  • Reichweite ZusatzbeleuchtungIR Distance: Up to 60 m
  • Intelligente ZusatzbeleuchtungYes
  • Image SettingsBrightness;Sharpness;Mirror;AGC
  • BildfrequenzTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N
  • Tag & Nacht-ModusAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • BildverbesserungBLC;HLC
  • Rauschunterdrückung2D DNR
  • WeißabgleichAuto/Manual
Schnittstelle
  • Video-AusgangSwitchable TVI/AHD/CVI/CVBS;1 HD analog output
Allgemein
  • Power9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC *You are recommended to use one power adapter to supply the power for one camera. Max. 8.2 W
  • MaterialPlastic
  • AbmessungØ 136 mm × 101.94 mm (Ø 5.35" × 4.01")
  • Approx. 450 g (0.99 lb.)
  • Operating Condition-40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing)
  • KommunikationHIKVISION-C
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
