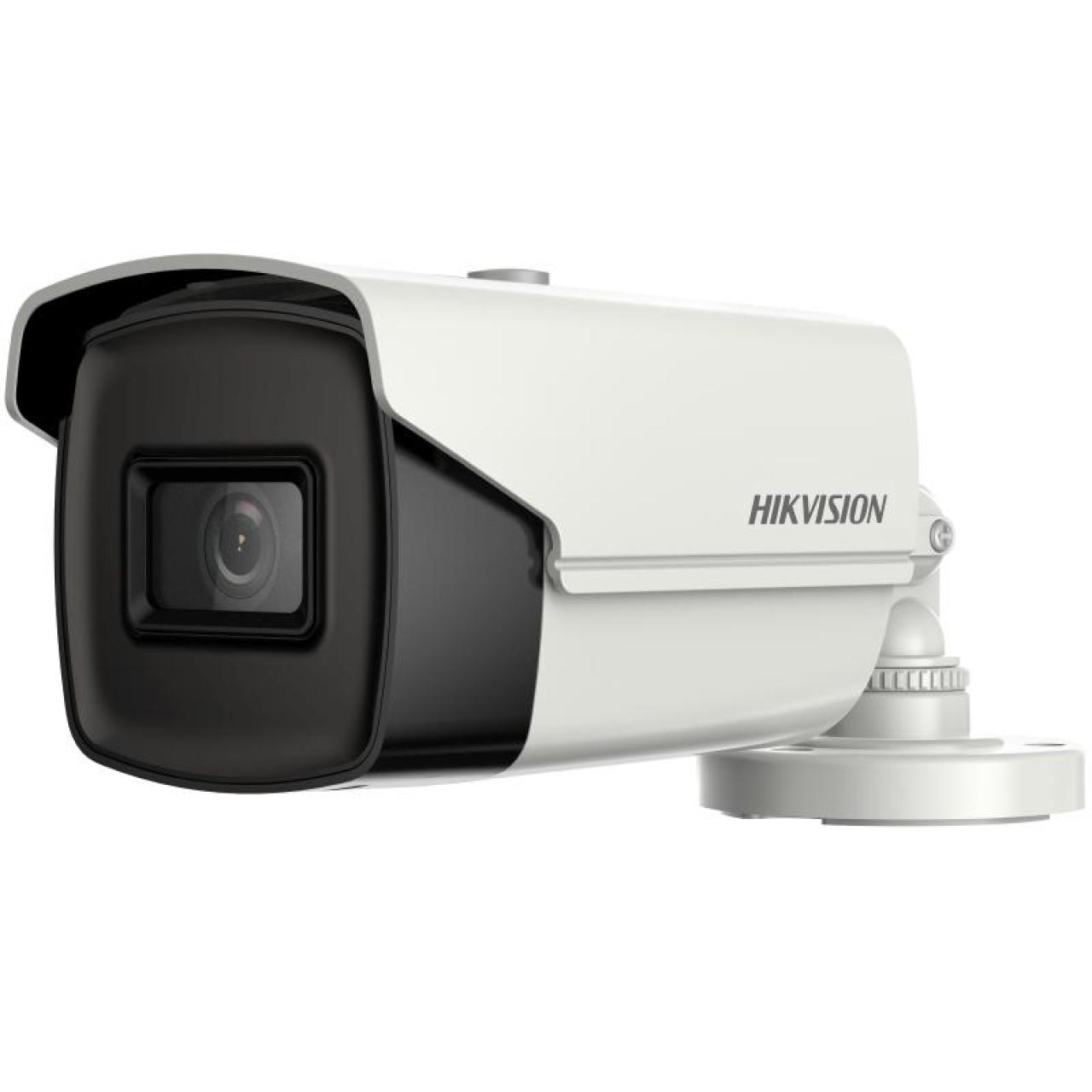

DS-2CE16U1T-IT5F

4K Fixed Bullet Camera

  • 8 MP bullet camera
  • EXIR 2.0: advanced infrared technology with 80 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
View Less
View more

Available models:

DS-2CE16U1T-IT5F(3.6mm)
DS-2CE16U1T-IT5F(6mm)

Spezifikation

  • Kamera
  • Bildsensor8.29 megapixel progressive scan CMOS
  • Max. Auflösung3840 (H) × 2160 (V)
  • Min. BeleuchtungColor: 0.01 Lux@(F2.0, AGC ON), B/W: 0 Lux with IR
  • VerschlusszeitPAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Tag & NachtIR Cut Filter
  • AusrichtungseinstellungPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
  • Signal-SystemPAL/NTSC
  • Objektiv
  • Objektivtyp3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Focal Length & FOVHorizontal FOV 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
  • ObjektivfassungM16
  • Strahler
  • ZusatzbeleuchtungIR
  • Reichweite ZusatzbeleuchtungUp to 80 m
  • Intelligente ZusatzbeleuchtungYes
  • Bild
  • Image SettingsBrightness;Sharpness;AGC
  • BildfrequenzTVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N
  • Tag & Nacht-ModusAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • BildverbesserungBLC;HLC
  • Rauschunterdrückung2D DNR
  • WeißabgleichAuto/Manual
  • Schnittstelle
  • Video-Ausgang1 HD analog output;Switchable TVI/AHD/CVI/CVBS
  • Allgemein
  • Power12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. Max. 5.9 W
  • MaterialFront cover: Metal, Main body: Plastic
  • Abmessung81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
  • Approx. 435 g (0.96 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • KommunikationHIKVISION-C
  • SpracheEnglish
  • Genehmigung
  • SchutzIP67

Spezifikation

Spezifikation
Kamera
  • Bildsensor8.29 megapixel progressive scan CMOS
  • Max. Auflösung3840 (H) × 2160 (V)
  • Min. BeleuchtungColor: 0.01 Lux@(F2.0, AGC ON), B/W: 0 Lux with IR
  • VerschlusszeitPAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Tag & NachtIR Cut Filter
  • AusrichtungseinstellungPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
  • Signal-SystemPAL/NTSC
Objektiv
  • Objektivtyp3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Focal Length & FOVHorizontal FOV 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
  • ObjektivfassungM16
Strahler
  • ZusatzbeleuchtungIR
  • Reichweite ZusatzbeleuchtungUp to 80 m
  • Intelligente ZusatzbeleuchtungYes
  • Image SettingsBrightness;Sharpness;AGC
  • BildfrequenzTVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N
  • Tag & Nacht-ModusAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • BildverbesserungBLC;HLC
  • Rauschunterdrückung2D DNR
  • WeißabgleichAuto/Manual
Schnittstelle
  • Video-Ausgang1 HD analog output;Switchable TVI/AHD/CVI/CVBS
Allgemein
  • Power12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. Max. 5.9 W
  • MaterialFront cover: Metal, Main body: Plastic
  • Abmessung81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
  • Approx. 435 g (0.96 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • KommunikationHIKVISION-C
  • SpracheEnglish
Genehmigung
  • SchutzIP67
