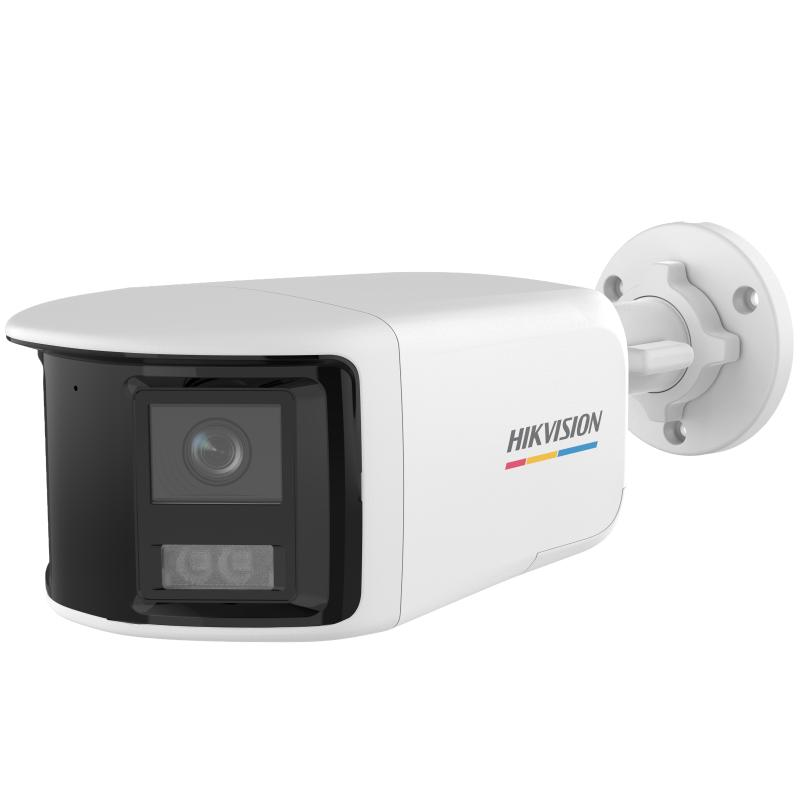

3K ColorVu Dual-Lens Fixed Bullet Camera

Dual-lens design, built-in stitching algorithm, presenting a 180-degree image
High quality imaging with 3K, 3328 × 1504 resolution
24/7 color imaging with F1.0 aperture
Smart-Hybrid light, optimize your security with flexible lighting options
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Up to 40 m white light and 40 m IR distance for bright night imaging
Built-in mic, high quality audio with audio over coaxial cable
Water and dust resistant (IP67)

View Less

Data Sheet

Available models:

DS-2CE12KF3TP-DLS(180°)

DS-2CE12KF3TP-DLS ^NEW

Spezifikation
Resources
Zubehör

Data Sheet

Kamera
Max. Auflösung3328 (H) × 1504 (V)
Verschlusszeit1/20 s to 1/50,000 s
Bildsensor3K CMOS
Slow ShutterMax. 16 times
Min. Beleuchtung0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
AusrichtungseinstellungPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Objektiv
Objektivtyp2.8 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
ObjektivfassungM12

Strahler
Reichweite ZusatzbeleuchtungIR: Up to 40 m,White Light: Up to 40 m
Intelligente ZusatzbeleuchtungYes

Bildfrequenz3K @20 dual
Privatzone4 programmable privacy masks
Wide Dynamic Range (WDR)≥130 dB
Bildparameter wechselnSTD/HIGH-SAT/HIGHLIGHT
Tag & Nacht-ModusAuto
WeißabgleichAuto/Manual
BildverbesserungWDR;BLC;HLC;Global
Rauschunterdrückung3D DNR
Image SettingsBrightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC

Schnittstelle
Video-Ausgang1 HD analog output
Eingebautes MikrophonYes

Ereignis
Bewegungserkennung4 programmable motion areas

Allgemein
Power12 VDC ± 25%, max. 8.9 W *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
SpracheEnglish
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
MaterialFront cover: Metal, Main body: Plastic
KommunikationHIKVISION-C
Abmessung234.46 mm × 103.58 mm × 76.01 mm (9.23" × 4.08" × 2.99")
Approx. 630 g (1.39 lb.)

Genehmigung
SchutzIP67

Kamera

Max. Auflösung

3328 (H) × 1504 (V)

Verschlusszeit

1/20 s to 1/50,000 s

Bildsensor

3K CMOS

Slow Shutter

Max. 16 times

Min. Beleuchtung

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Ausrichtungseinstellung

Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Objektiv

Objektivtyp

2.8 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 180°, vertical FOV: 75°

Objektivfassung

M12

Strahler

Reichweite Zusatzbeleuchtung

IR: Up to 40 m,White Light: Up to 40 m

Intelligente Zusatzbeleuchtung

Yes


Bildfrequenz

3K @20 dual

Privatzone

4 programmable privacy masks

Wide Dynamic Range (WDR)

≥130 dB

Bildparameter wechseln

STD/HIGH-SAT/HIGHLIGHT

Tag & Nacht-Modus

Auto

Weißabgleich

Auto/Manual

Bildverbesserung

WDR;BLC;HLC;Global

Rauschunterdrückung

3D DNR

Image Settings

Brightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC

Schnittstelle

Video-Ausgang

1 HD analog output

Eingebautes Mikrophon

Yes

Ereignis

Bewegungserkennung

4 programmable motion areas

Allgemein

Power

12 VDC ± 25%, max. 8.9 W *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

Sprache

English

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)

Material

Front cover: Metal, Main body: Plastic

Kommunikation

HIKVISION-C

Abmessung

234.46 mm × 103.58 mm × 76.01 mm (9.23" × 4.08" × 2.99")

Approx. 630 g (1.39 lb.)

Genehmigung

Schutz

IP67
