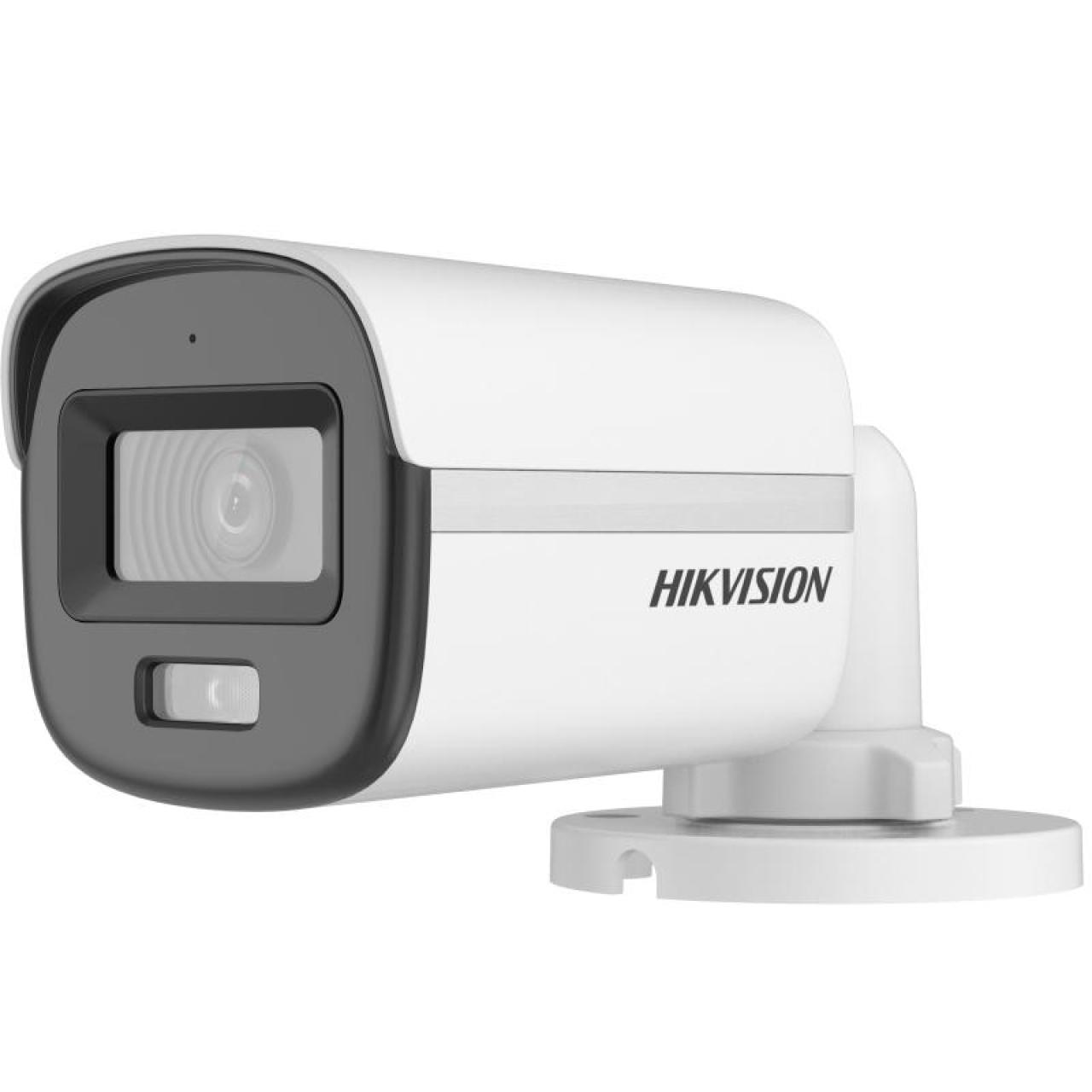

3K ColorVu Smart hybrid light Fixed Mini Bullet Camera

  • High quality imaging with 3K, 2960 × 1665 resolution
  • 24/7 color imaging with F1.0 aperture
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 20 m IR distance for bright night imaging
  • Up to 20 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • High quality audio with audio over coaxial cable, built-in mic
  • Water and dust resistant (IP67)
  • Smart-Hybrid light, optimize your security with flexible lighting options

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2CE10KF0T-LPFS(2.8mm)
DS-2CE10KF0T-LPFS(3.6mm)
DS-2CE10KF0T-LPFS
Data Sheet

Spezifikation

  • Kamera
  • Bildsensor3K CMOS
  • Signal-SystemPAL/NTSC
  • Auflösung der Kamera2960 (H) × 1665 (V)
  • BildfrequenzTVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
  • Min. Beleuchtung0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
  • VerschlusszeitPAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Objektiv2.8 mm, 3.6 mm fixed focal lens
  • Blickwinkel2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143° 3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°
  • ObjektivfassungM12
  • AlarmlichtSolid Light Alarm (White Light)
  • Tag & NachtICR
  • WDR (Wide Dynamic Range)Digital WDR
  • AusrichtungseinstellungPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Mikrofon
  • AbholabstandIn a radius of up to 5 m
  • Amount1
  • Strahler
  • ZusatzbeleuchtungSmart,IR,White Light
  • Reichweite ZusatzbeleuchtungIR: Up to 20 m,White Light: Up to 20 m
  • Bild
  • Tag & Nacht-ModusAuto/Color
  • WeißlichtAuto/Off
  • BildmodusSTD/HIGH-SAT/HIGHLIGHT
  • AGCYes
  • WeißabgleichAuto/Outdoor/Global/Manual
  • AE-Modus (automatische Belichtung)HLS;DWDR;BLC;HLC;Global
  • Rauschunterdrückung2D DNR
  • SpracheEnglish
  • FunktionSmart IR;Brightness;Sharpness;AGC;Anti-Banding
  • Schnittstelle
  • Video-AusgangSwitchable TVI/AHD/CVI/CVBS
  • AudioeingangBuilt-in mic
  • Allgemein
  • Power12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Betriebsbedingungen-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
  • SchutzklasseIP67
  • MaterialPlastic
  • KommunikationHIKVISION-C
  • Abmessung161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
  • Approx. 230 g (0.51 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Spezifikation

Kamera
Bildsensor
3K CMOS
Signal-System
PAL/NTSC
Auflösung der Kamera
2960 (H) × 1665 (V)
Bildfrequenz
TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
Min. Beleuchtung
0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
Verschlusszeit
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Objektiv
2.8 mm, 3.6 mm fixed focal lens
Blickwinkel
2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143° 3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°
Objektivfassung
M12
Alarmlicht
Solid Light Alarm (White Light)
Tag & Nacht
ICR
WDR (Wide Dynamic Range)
Digital WDR
Ausrichtungseinstellung
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Mikrofon
Abholabstand
In a radius of up to 5 m
Amount
1
Strahler
Zusatzbeleuchtung
Smart,IR,White Light
Reichweite Zusatzbeleuchtung
IR: Up to 20 m,White Light: Up to 20 m
Tag & Nacht-Modus
Auto/Color
Weißlicht
Auto/Off
Bildmodus
STD/HIGH-SAT/HIGHLIGHT
AGC
Yes
Weißabgleich
Auto/Outdoor/Global/Manual
AE-Modus (automatische Belichtung)
HLS;DWDR;BLC;HLC;Global
Rauschunterdrückung
2D DNR
Sprache
English
Funktion
Smart IR;Brightness;Sharpness;AGC;Anti-Banding
Schnittstelle
Video-Ausgang
Switchable TVI/AHD/CVI/CVBS
Audioeingang
Built-in mic
Allgemein
Power
12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
Betriebsbedingungen
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
Schutzklasse
IP67
Material
Plastic
Kommunikation
HIKVISION-C
Abmessung
161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
Approx. 230 g (0.51 lb.)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Spezifikation
Kamera
  • Bildsensor3K CMOS
  • Signal-SystemPAL/NTSC
  • Auflösung der Kamera2960 (H) × 1665 (V)
  • BildfrequenzTVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
  • Min. Beleuchtung0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
  • VerschlusszeitPAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Objektiv2.8 mm, 3.6 mm fixed focal lens
  • Blickwinkel2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143° 3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°
  • ObjektivfassungM12
  • AlarmlichtSolid Light Alarm (White Light)
  • Tag & NachtICR
  • WDR (Wide Dynamic Range)Digital WDR
  • AusrichtungseinstellungPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Mikrofon
  • AbholabstandIn a radius of up to 5 m
  • Amount1
Strahler
  • ZusatzbeleuchtungSmart,IR,White Light
  • Reichweite ZusatzbeleuchtungIR: Up to 20 m,White Light: Up to 20 m
  • Tag & Nacht-ModusAuto/Color
  • WeißlichtAuto/Off
  • BildmodusSTD/HIGH-SAT/HIGHLIGHT
  • AGCYes
  • WeißabgleichAuto/Outdoor/Global/Manual
  • AE-Modus (automatische Belichtung)HLS;DWDR;BLC;HLC;Global
  • Rauschunterdrückung2D DNR
  • SpracheEnglish
  • FunktionSmart IR;Brightness;Sharpness;AGC;Anti-Banding
Schnittstelle
  • Video-AusgangSwitchable TVI/AHD/CVI/CVBS
  • AudioeingangBuilt-in mic
Allgemein
  • Power12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Betriebsbedingungen-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
  • SchutzklasseIP67
  • MaterialPlastic
  • KommunikationHIKVISION-C
  • Abmessung161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
  • Approx. 230 g (0.51 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
