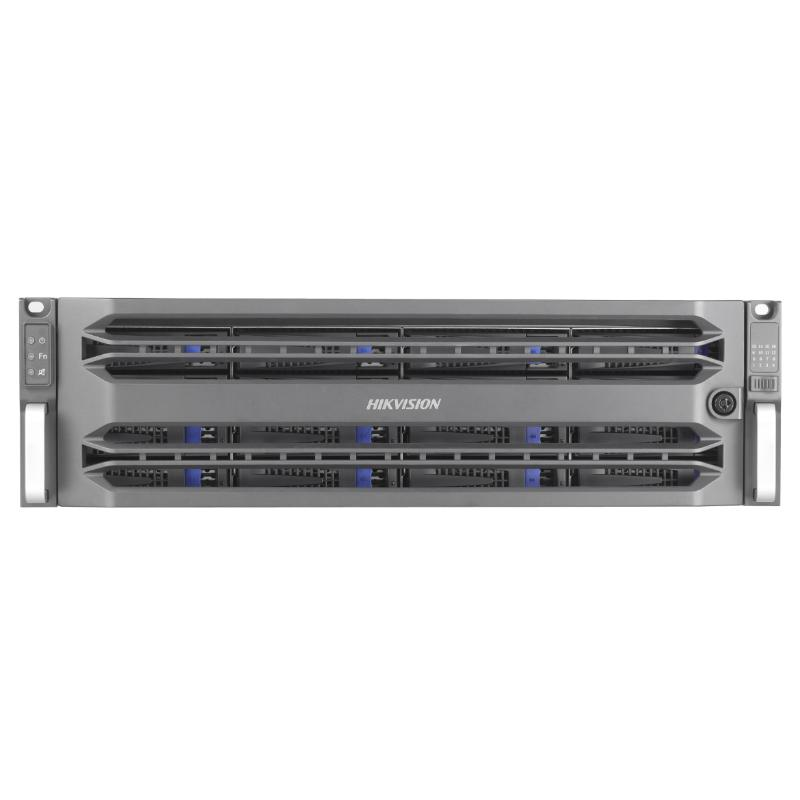

DS-AT1000S/240

    EOL

    16-slot Cost-efficient Super Capacity Storage

    • 12*20 TB IoT SMR enterprise HDD
    • IoT fully sealed helium HDD technology
    • Surveillance-specialized direct storage (Direct Streaming mode)
    • Highly cost efficient, safe and reliable
    • Energy saving and space saving
    • Easy operation and maintenance
    • SMR HDD providing 5-year warranty
    View Less
    View more

    Available models:

    DS-AT1000S/240

    Spezifikation

    • Hardware
    • Cache12 GB, extendable to 32 GB
    • Prozessor64-bit multi-core processor
    • Speicherverwaltung
    • Disk managementDisk detection, pre-alarm, and repair
    • Logisches Volume-ManagementRecording volume management
    • Aufzeichnungsverwaltung
    • AufzeichnungsmodusContinuous recording, manual recording, and alarm recording
    • Video protectionVideo lock, video loss alarm
    • Searching modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
    • Downloading modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
    • Netzwerk
    • ProtokollRTSP;ONVIF;HKSDK
    • Gerätewartung
    • VerwaltungsmodusGUI based on web, serial port CLI, platform
    • Alarm modeAudio, indicator, GUI
    • Speicher
    • HDD slot16
    • Interface/capacitySATA, Up to 20TB
    • RAIDRAID5, RAID6, iRAID
    • Leistung
    • Video performance256
    • Picture performance50
    • Direct streaming mode: video (2 Mbps) + picture256-ch
    • Allgemein
    • Stromversorgung100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
    • Consumption (with HDDs)≤ 255 W
    • Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
    • Environment humidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
    • Abmessung (B × H × T)486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
    • Weight (without HDDs)≤20kg (44.1 lb)
    • Externe Schnittstelle
    • USB2, USB 3.0
    • Data network interface3, 1000 Mbps Ethernet interface
    • MiniSAS interface2
    • COM1, RS-232
    • Management network interface1, 1000 Mbps Ethernet interface
    • HDD
    • HDD ModelHikvision,HK7220AH,20T
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Spezifikation

    Hardware
    Cache
    12 GB, extendable to 32 GB
    Prozessor
    64-bit multi-core processor
    Speicherverwaltung
    Disk management
    Disk detection, pre-alarm, and repair
    Logisches Volume-Management
    Recording volume management
    Aufzeichnungsverwaltung
    Aufzeichnungsmodus
    Continuous recording, manual recording, and alarm recording
    Video protection
    Video lock, video loss alarm
    Searching mode
    Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
    Downloading mode
    Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
    Netzwerk
    Protokoll
    RTSP;ONVIF;HKSDK
    Gerätewartung
    Verwaltungsmodus
    GUI based on web, serial port CLI, platform
    Alarm mode
    Audio, indicator, GUI
    Speicher
    HDD slot
    16
    Interface/capacity
    SATA, Up to 20TB
    RAID
    RAID5, RAID6, iRAID
    Leistung
    Video performance
    256
    Picture performance
    50
    Direct streaming mode: video (2 Mbps) + picture
    256-ch
    Allgemein
    Stromversorgung
    100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
    Consumption (with HDDs)
    ≤ 255 W
    Environment temperature
    Working: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
    Environment humidity
    Working: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
    Abmessung (B × H × T)
    486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
    Weight (without HDDs)
    ≤20kg (44.1 lb)
    Externe Schnittstelle
    USB
    2, USB 3.0
    Data network interface
    3, 1000 Mbps Ethernet interface
    MiniSAS interface
    2
    COM
    1, RS-232
    Management network interface
    1, 1000 Mbps Ethernet interface
    HDD
    HDD Model
    Hikvision,HK7220AH,20T
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Spezifikation
    Hardware
    • Cache12 GB, extendable to 32 GB
    • Prozessor64-bit multi-core processor
    Speicherverwaltung
    • Disk managementDisk detection, pre-alarm, and repair
    • Logisches Volume-ManagementRecording volume management
    Aufzeichnungsverwaltung
    • AufzeichnungsmodusContinuous recording, manual recording, and alarm recording
    • Video protectionVideo lock, video loss alarm
    • Searching modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
    • Downloading modeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
    Netzwerk
    • ProtokollRTSP;ONVIF;HKSDK
    Gerätewartung
    • VerwaltungsmodusGUI based on web, serial port CLI, platform
    • Alarm modeAudio, indicator, GUI
    Speicher
    • HDD slot16
    • Interface/capacitySATA, Up to 20TB
    • RAIDRAID5, RAID6, iRAID
    Leistung
    • Video performance256
    • Picture performance50
    • Direct streaming mode: video (2 Mbps) + picture256-ch
    Allgemein
    • Stromversorgung100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply
    • Consumption (with HDDs)≤ 255 W
    • Environment temperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
    • Environment humidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
    • Abmessung (B × H × T)486 x 535 x 134 mm (19.2 x 21.1 x 5.3 in)
    • Weight (without HDDs)≤20kg (44.1 lb)
    Externe Schnittstelle
    • USB2, USB 3.0
    • Data network interface3, 1000 Mbps Ethernet interface
    • MiniSAS interface2
    • COM1, RS-232
    • Management network interface1, 1000 Mbps Ethernet interface
    HDD
    • HDD ModelHikvision,HK7220AH,20T
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
