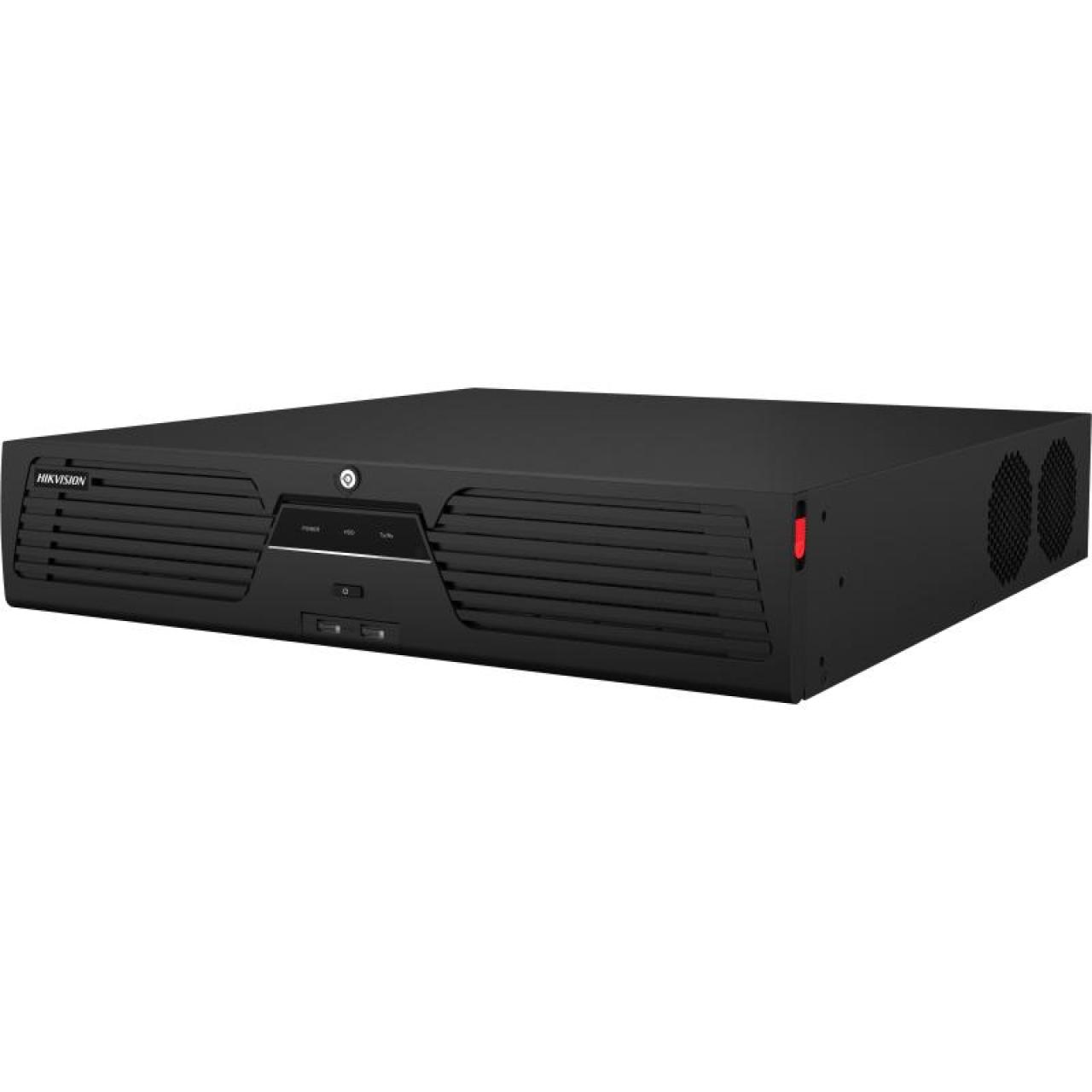

32-ch 2U 8K NVR

Up to 32-ch IP camera inputs
Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
Up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
Redundant power supply
Up to 8-ch IP speakers can be connected

View Less

Data Sheet

Available models:

DS-9632NI-M8/R

Spezifikation
Resources
Zubehör

Data Sheet

Video and Audio
IP Video Input32-ch
Incoming Bandwidth320 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K(7680×4320)/30Hz, 4K（3840×2160）/60Hz,4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz
HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output1920 × 1080/60Hz
VGA 2 Output1920 × 1080/60Hz
Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio-Ausgang2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Dekodierung
DekodierungsformatH.265+/H.265/H.264+/H.264
Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchrone Wiedergabe16-ch
Dekodier-Leistung2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Audio-KomprimierungG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Netzwerk
Netzwerk-ProtokollTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Netzwerk-Schnittstelle2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface
Serielle Schnittstelle1 RS-485 (full-duplex), 1 RS-232
SATA8 SATA interfaces
eSATA1 eSATA interface
KapazitätUp to 16 TB capacity for each disk
Alarm Eingang/Ausgang16/9
USB-SchnittstelleFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output

Allgemein
Spannungsversorgung100 to 240 VAC, 50 to 60 Hz, redundant power supply
Verbrauch≤ 50 W (without HDD)
Betriebstemperatur-10 °C to 55 °C (14 °F to 131 °F)
Luftfeuchtigkeit 10% to 90%
Gehäuse2U chassis
Abmessungen (BxTxH)445 × 540 × 93 mm ( 17.5"× 21.3" × 3.7")
≤ 10 kg (without HDD, 22 lb.)

Zertifizierung
Obtained CertificationCE, FCC
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
